ozti

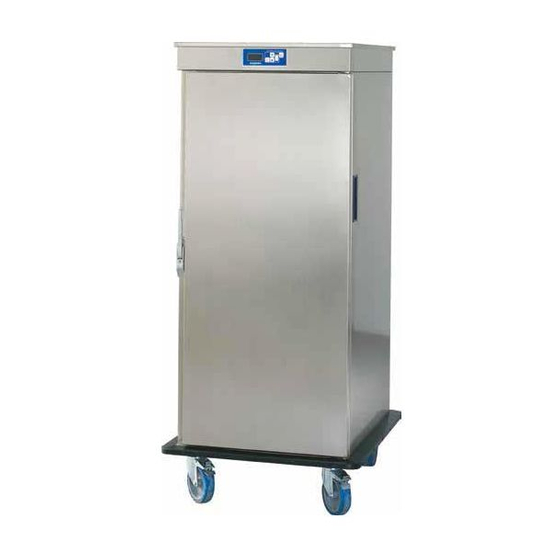

HEATED UNITS (ELECTRICAL – INDUSTRIAL TYPE)
USER'S MANUAL
OBA 70180
OBA 70120
OBA 14218
OSBI 15894
MANUFACTURER : ÖZTİRYAKİLER MADENİ EŞYA SAN. VE TİC A.Ş.
PRODUCTION SITE : Beylikdüzü Eski Hadımköy Yolu 1.Km Büyükçekmece / İstanbul / TURKEY
Phone : 0090 212 886 78 00 (8 Hat-Lines)
Fax : 0090 212 886 66 29
Our website:
www.oztiryakiler.com.tr
E-mail: export@oztiryakiler.com.tr
Published on : 15.05.2005
VER . 05
Page 1 of 12
Advertisement
Related Manuals for OZTI OBA 70180
Summary of Contents for OZTI OBA 70180
- Page 1 HEATED UNITS (ELECTRICAL – INDUSTRIAL TYPE) USER’S MANUAL OBA 70180 OBA 70120 OBA 14218 OSBI 15894 MANUFACTURER : ÖZTİRYAKİLER MADENİ EŞYA SAN. VE TİC A.Ş. PRODUCTION SITE : Beylikdüzü Eski Hadımköy Yolu 1.Km Büyükçekmece / İstanbul / TURKEY Phone : 0090 212 886 78 00 (8 Hat-Lines)
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE NR. TOPICS COVER PAGE TABLE OF CONTENTS INTRODUCTION TECHNICAL DATA TECHNICAL DATA ELECTRICAL CIRCUIT DIAGRAM WARNING SIGNS SAFETY DETAILS TRANSPORTING, MOVING AND INSTALLATION CONTROL BOARDS OPERATION OF THE DEVICE (1) CONTROL BOARDS, OPERATION OF THE DEVICE (1) OPERATION OF THE DEVICE (2) CLEAN-UP AND MAINTENANCE TERMS OF GUARANTEE... -
Page 3: Introduction
INTRODUCTION Dear User, Thank you for purchasing our device and for your reliance upon our company. Our devices have been used within our customers kitchen, your kitchen in 75 countries. Our devices are produced in compliance with international standards. Important notice: Please read or ensure that the users read this user’s manual in order to achieve the desired performance in line with your expectations and to use your device for long years. - Page 4 4/12...
-
Page 5: Electrical Circuit Diagram
ELECTRICAL CIRCUIT DIAGRAM VER 10.05 RESISTANCES VENTILATORS 220V/50 Hz PROBE 3L2 1L1 21 O 21NO 12 11 TELEMECANIQUE LC1K1601M7 CONTACTOR 16A 22NO OSBI HEATED UNITS 15894 70120 70120 70180 70180 14218 14218 SOCKET 1 SOCKET 2 SOCKET 3 SOCKET 4 LAMP ON/OFF S1 : PTC PROBE LAMP... -
Page 6: Warning Signs
WARNING SIGNS POWER NETWORK GROUNDING GROUNDING POWER OVERHEAT SUPPLY CONNECTION: MONOPHASE VOLTAGE 220-240 V GROUNDED FREQUENCY : 50 Hz FREQUENCY : 50 Hz 6/12... -
Page 7: Safety Details
SAFETY DETAILS Any kind of flammable solid and liquid material (cloths, alcohol and derivatives, petrochemical products, wooden and plastic materials, cutting blocks, curtains etc.) should never be held near the device. Never leave the device under direct sunlight. It should be located at least 40 cm. -
Page 8: Transporting, Moving And Installation
TRANSPORTING, MOVING AND INSTALLATION Heated unıts are be delivered as a standard in wooden cases, reinforced by EPS block, wrapped with stretch film and air bubble protective packing, and wrapped over again with a second layer of stretch film The device may be moved with manpower. Do not hit or drop the device when moving Do not hit or drop the device when moving. -
Page 9: Operation Of The Device
CONTROL BOARDS HEATED UNITS CONTROL BOARD DIGITAL DIGITAL ON / OFF ON / OFF SIGNAL SIGNAL THERMOMETER LAMP SWITCH THERMOSTAT OPERATION OF THE DEVICE (1) OPERATION OF THE DEVICE (1) A thermometer with digital thermostat is installed in heated units models. The thermometer with digital thermostat is set to a relevant default value depending on the model of the device. - Page 10 OPERATION OF THE DEVICE (2) CAUTION! : The device should be installed and operated as described in this user’s manual. If any failure is encountered please contact our nearest authorized service dealer. WHEN THE DEVICE HAS A FAILURE ONLY AUTHORIZED ……………………...
-
Page 11: Clean-Up And Maintenance
CLEAN-UP AND MAINTENANCE After using device, disconnect your device from power supply, by unplugging it or switching it off, before carrying out periodical clean-up. Clean your device with liquid dishwashing detergent and a piece of cloth or sponge soaked in warm water. Then in order to remove detergent residuals rinse it with a piece of cloth soaked in clear and warm water. -
Page 12: Terms Of Guarantee
TERMS OF GUARANTEE 1- Documents without sales date, factory and sales company approval on, are not valid. In order to benefit from the guarantee, guarantee document should be presented. 2- If the device is installed and operated following the instructions in the installation, maintenance and user's manual, it is warranted for failures resulting from failures resulting from workmanship and material failures resulting from failures resulting from workmanship and material failures.
