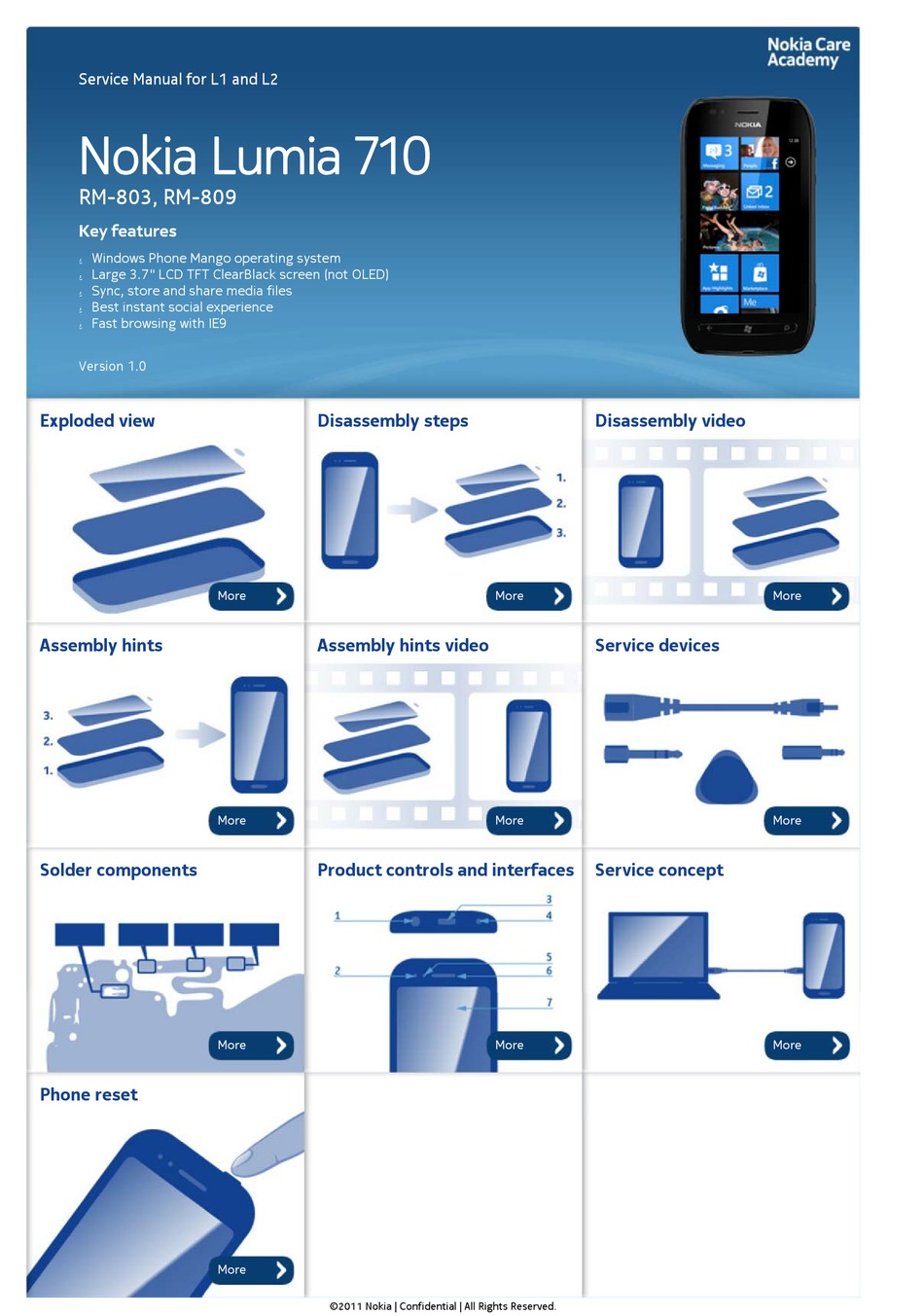

Service Manual for L1 and L2

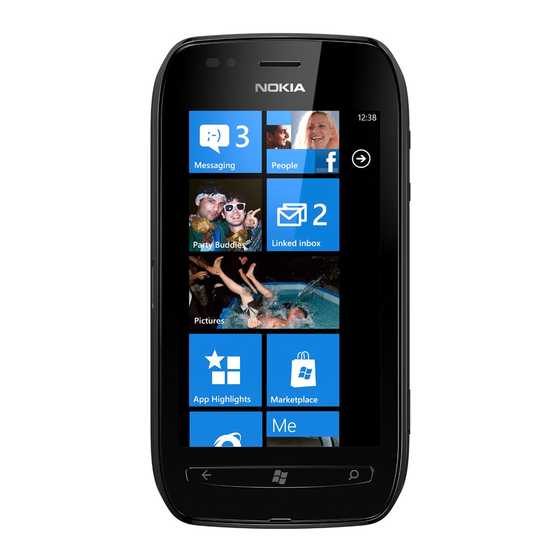

Nokia Lumia 710
RM-803, RM-809
Key features
Windows Phone Mango operating system
z
Large 3.7" LCD TFT ClearBlack screen (not OLED)
z
Sync, store and share media files
z
Best instant social experience
z
Fast browsing with IE9
z
Version 1.0
Exploded view
Assembly hints
Solder components
Phone reset
Disassembly steps
More
Assembly hints video
More
Product controls and interfaces
More
More
©2011 Nokia | Confidential | All Rights Reserved.
Disassembly video
More
Service devices
More
Service concept
More
More
More
More
Advertisement
Related Manuals for Nokia RM-803
Summarization of Contents
Exploded View
A-COVER ASSEMBLY
Details components of the phone's A-COVER assembly, including cover, touch window, and display gasket.
LIGHT SWAP PACKAGE COMPONENTS
Lists components for the light swap package, such as display conductive tape and UI keymat.
MAIN CHASSIS ASSEMBLY COMPONENTS
Identifies parts of the main chassis assembly, including speaker, antenna, and camera parts.
Disassembly Steps
Battery Cover Removal
Instructions on how to release and remove the battery cover using an opening notch.
Main Chassis Removal
Procedure for unscrewing eleven screws and lifting the main chassis from the device.
Small Component Removal
Details removing small components like camera lens boot and flash support using tweezers.
Engine Board and Connector Handling
Guides on opening connectors and lifting the engine board carefully to avoid damage.
Display and Earpiece Disassembly
Steps for separating the engine board and removing the earpiece using dental tools and tweezers.
Display and Display Gasket Removal
Instructions on releasing and removing the display and its gasket using tools like SS-93.
Audio and Speaker Component Removal
Procedure for removing the AV jack and IHF speaker from the device using appropriate tools.
Flash, LED, and Camera Component Removal
Details on removing LED flash, flash boot, and camera components using tweezers.
Adhesives, Tape, and Gasket Removal
Instructions for removing shield adhesives, display conductive tape, and diprogasket.
Assembly Hints
Display Gasket and Display Attachment
Guidance on cleaning and attaching the display gasket and display to the A-COVER.
Display Conductive Tape Assembly
Steps for preparing and applying the display conductive tape to the engine board.
UI Keymat Domesheet Assembly
Procedure for placing and aligning the UI keymat domesheet onto the engine board.
IHF Speaker and Speaker Gasket Assembly
Instructions for attaching the speaker gasket and IHF speaker to the main chassis.
Engine Board Assembly to A-COVER
Procedure for connecting the engine board and securing it to the A-COVER assembly.
Final Screw Fastening
Instructions for fastening the eleven camera cross screws with the specified torque of 10 Ncm.
Service Concept
Flashing Concept
Overview of the flashing process using service software and a transceiver.
On Device Diagnostics Tool (ODDT)
Details on installing and using the ODDT app for hardware troubleshooting.
Phone Reset
Hardware Reset Procedure
Instructions for performing a hardware reset by removing and reinserting the battery.
Software OS Reset via About Menu
Guide to resetting the phone via the 'About' menu, warning about data loss.
Software OS Reset via Hardware Keys
Procedure for OS reset using a combination of volume, power, and camera keys.
