- Page 1 INSTALLATION AND OPERATION MANUAL PA-6060MX, PA-6120MX 6*6 Matrix Mixer Amplifiers with Mp3/FM/BT Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
- Page 2 SAFTY WARNINGS! Read and keep these instructions. Heed all warnings and follow all instructions. Do not use this apparatus near water. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug.
- Page 3 INTRODUCTIONS Features: 6×6 Matrix mixer amplifier with 6 x 30W, 6 x 60W, 6 x 120W outputs. 5 sources and EMC input matrix distributed to 6 speaker zones. MP3/FM/Bluetooth, 3 mic/line, aux input & EMC mute input with priority. ...
-

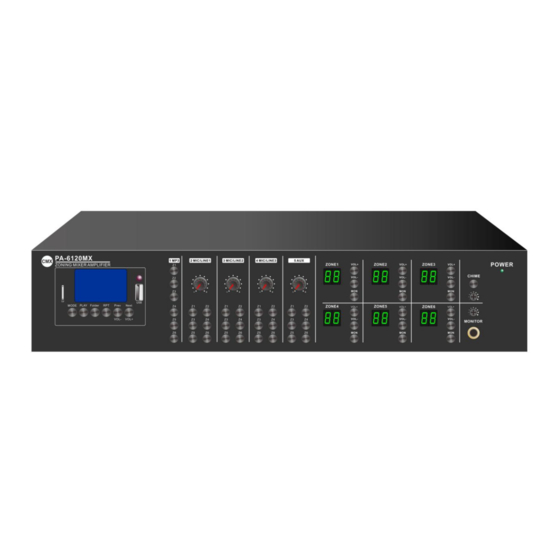

Page 4: Front Panel
FRONT PANEL Mp3/FM/Blue tooth media player module. 11. Display of zone: SD card slot. This will show which audio source is playing on current Function button. zone. IR receiver 12. MON: Monitor Open or Close MP3 slot. 13. Zone Volume control. Zone selector for MP3: 14. - Page 5 25. EMC input 30. Mic 3/Line 3 Input. 26. AUX input. 31. Remote Microphone & Remote volume control interface. 27. Mic 1/Line 1 Input. 32. FM antenna. 28. Mic 2/Line 2 Input. 33. Horn output (24V signal to trigger play the EVAC message 29.
-
Page 6: Speaker Outputs
An antenna input (32) is provided on the rear panel for connection to an external aerial for FM tuning There are Bass and Treble volume control on rear panel to adjust the sound of MIC and Line input signal Speaker outputs The PA-6120MX has a separate speaker output for each zone, connected via 3 large modular terminal plugs. -
Page 7: Operation
For a single 8Ω speaker, connect the positive (+) wire to the “8Ω” terminal and the negative (-) wire to “COM” For a single 4Ω speaker or for 2 x 8Ω speakers connected in parallel, connect the positive (+) wire to the “4Ω” terminal and the negative (-) wire to “COM”... -
Page 8: Bluetooth Operation
Short press: Prev& Next Long Press: Vol+&Vol- Bluetooth Operation In order to play back audio from a smartphone, tablet or other Bluetooth device, the built-in Bluetooth receiver will need to be paired with a device which is within range.” To pair a device with the PA-6120MX Bluetooth receiver, it is necessary to scan for devices in the Bluetooth menu of the sending device and select to pair with “BT66078”. -
Page 9: Connection Diagrams
CONNECTION DIAGRAMS SPECIFICATION SHEET Model PA-6060MX PA-6120MX Description 6×6 Matrix Mixer Amplifier with Mp3/FM/Blue Tooth Rated Power Output 6×60W 6×120W Speaker Output 100V and 4-8 Ohms Mic/line1-3: 2.5mV, balanced XLR input with 48V phantom power, Input Line1-2: 250mV; RCA type... -
Page 10: Warranty
Terms and conditions of warranty for a given product may be determined first by locating the appropriate country which the product was purchased in, then by locating the product type. Guangzhou CMX Audio Co., Limited 302RM 3#, Honghui Industrial Zone, Zhongyuan RD, Shibi Area, Panyu, Guangzhou, China 511497 Web: www.cmxaudio.com...
