CHAPTER 2: HARDWARE INSTALLATION

2.1 I
NSTALLING

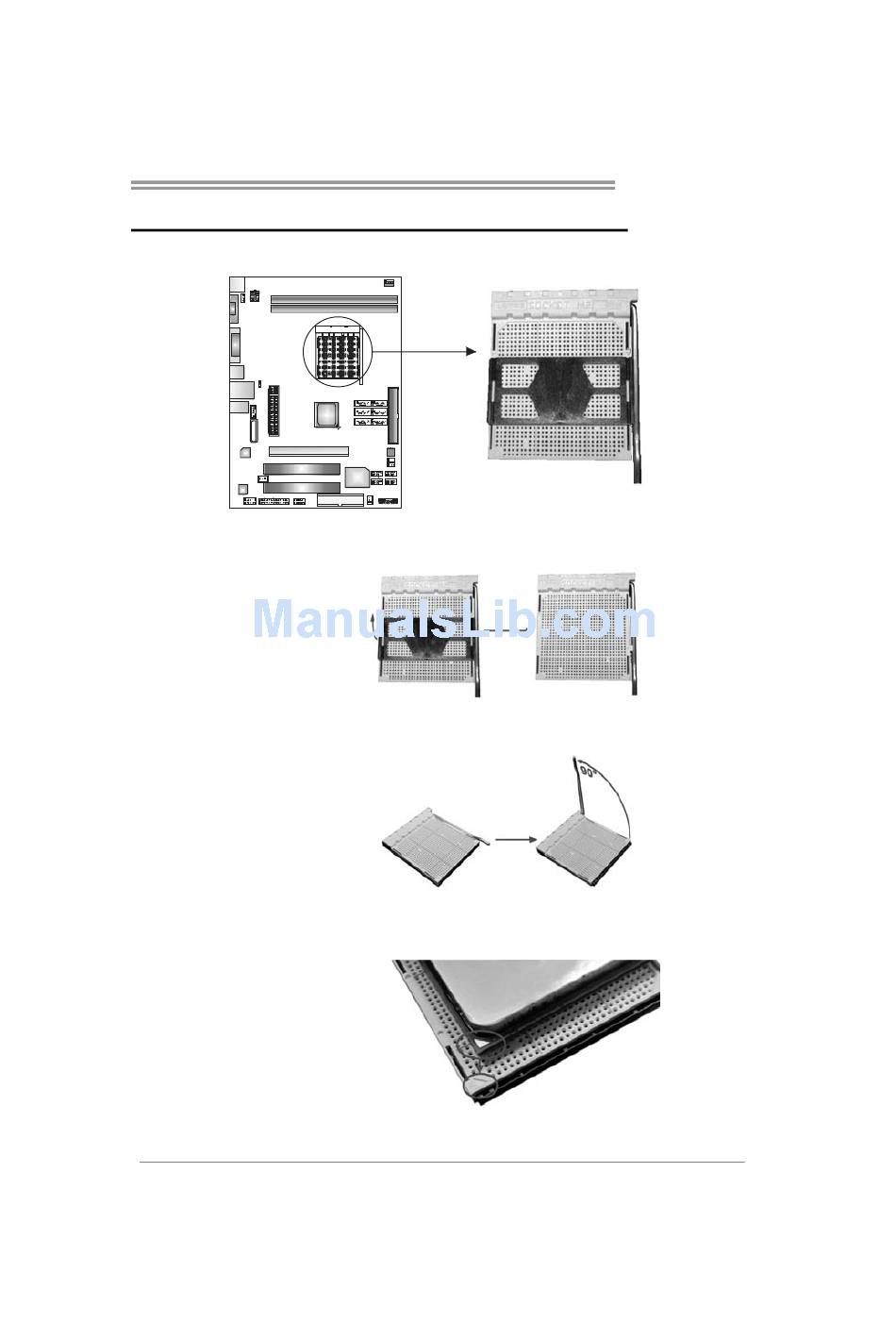

Step 1: Remove the socket protection cap.
Step 2: Pull the lever toward direction A from the socket and then raise the
lever up to a 90-degree angle.
Step 3: Look for the white triangle on socket, and the gold triangle on
CPU should point towards this white triangle. The CPU will fit only
in the correct orientation.
C P
ENTRAL ROCESSING
GF8100 M2+ SE
U (CPU)
NIT
