Rear Panel Connectors - Biostar A740G M2L PLUS - SETUP MANUAL 2 Setup Manual

S/PDIF out Connector
CPU Fan Header
System Fan Header
CMOS clear Header
USB Connector
Power Connector (24pin)
Power Connector (4pin)
Printer Port Connector
PS/2 Keyboard
PS/2 Mouse
Back Panel VGA port
I/O LAN port
USB Port
Audio Jack
Board Size 182 mm(W) x 235 mm(L)
Special
RAID 0 / 1 / 1+0 support
Features
OS Support Windows XP / Vista 32 / Vista 64 / 7

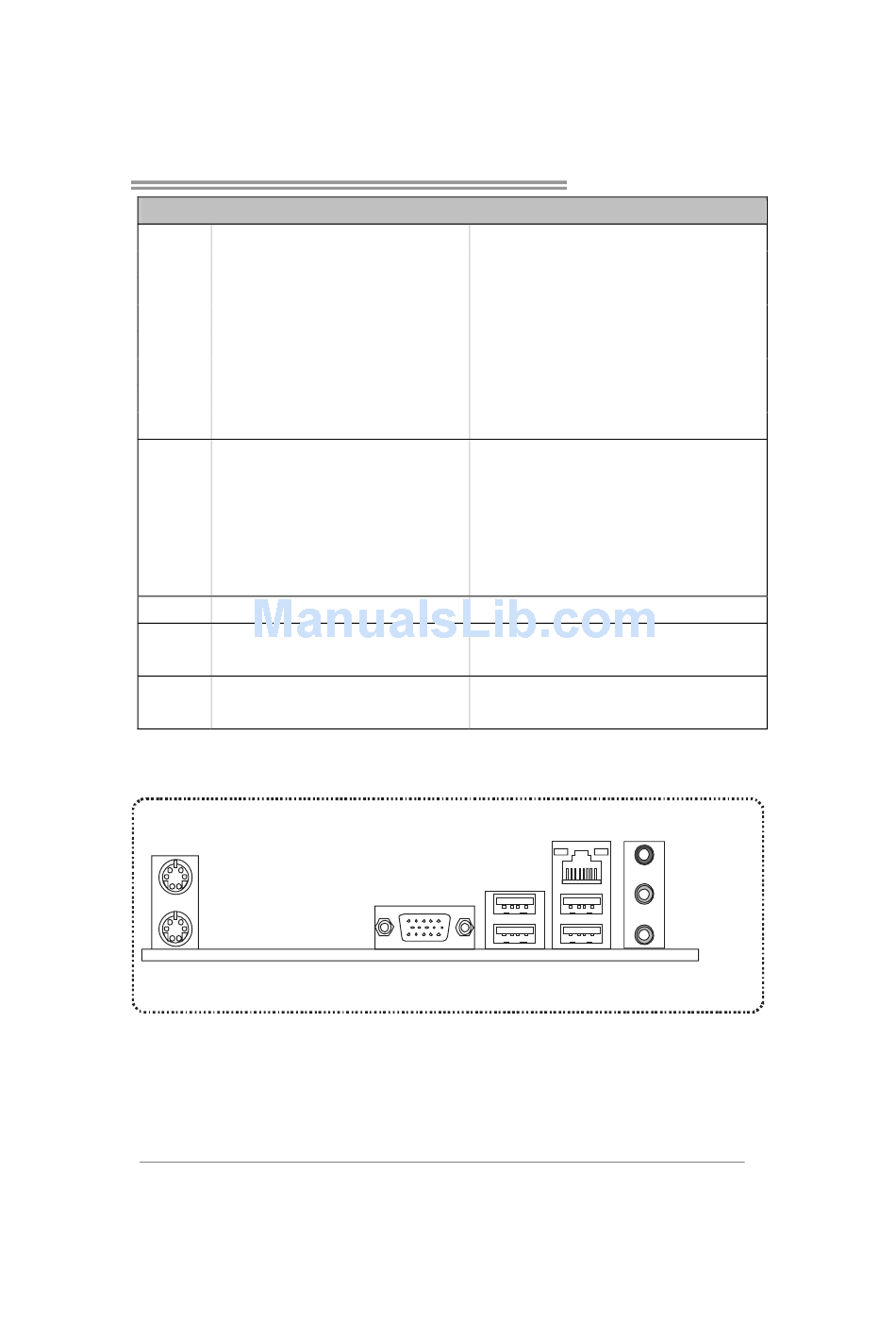

1.4 R P
EAR ANEL
PS/ 2
Mouse
PS/2
Keyboar d
SPEC
x1 Supports digital audio out function
x1 CPU Fan power supply (with Smart Fan function)
x1 System Fan Power supply
x1 Restore CMOS data to factory default
x2 Each connector supports 2 front panel USB ports
x1 Connects to Power supply
x1 Connects to Power supply
x1 Each connector supports 1 Printer port
x1 Connects to PS/2 Keyboard
x1 Connects to PS/2 Mouse
x1 Connect to D-SUB monitor
x1 Connect to RJ-45 Ethernet cable
x4 Connect to USB devices
x3 Provide Audio-In/Out and microphone connection
Biostar reserves the right to add or remove support
for any OS With or without notice.
C
ONNECTORS
VGA USBX2
A740G M2L+/A780LB
LAN
Line In/
Surround
Line Out
Mic In 1/
Bass/ Cent er
USBX2
3
