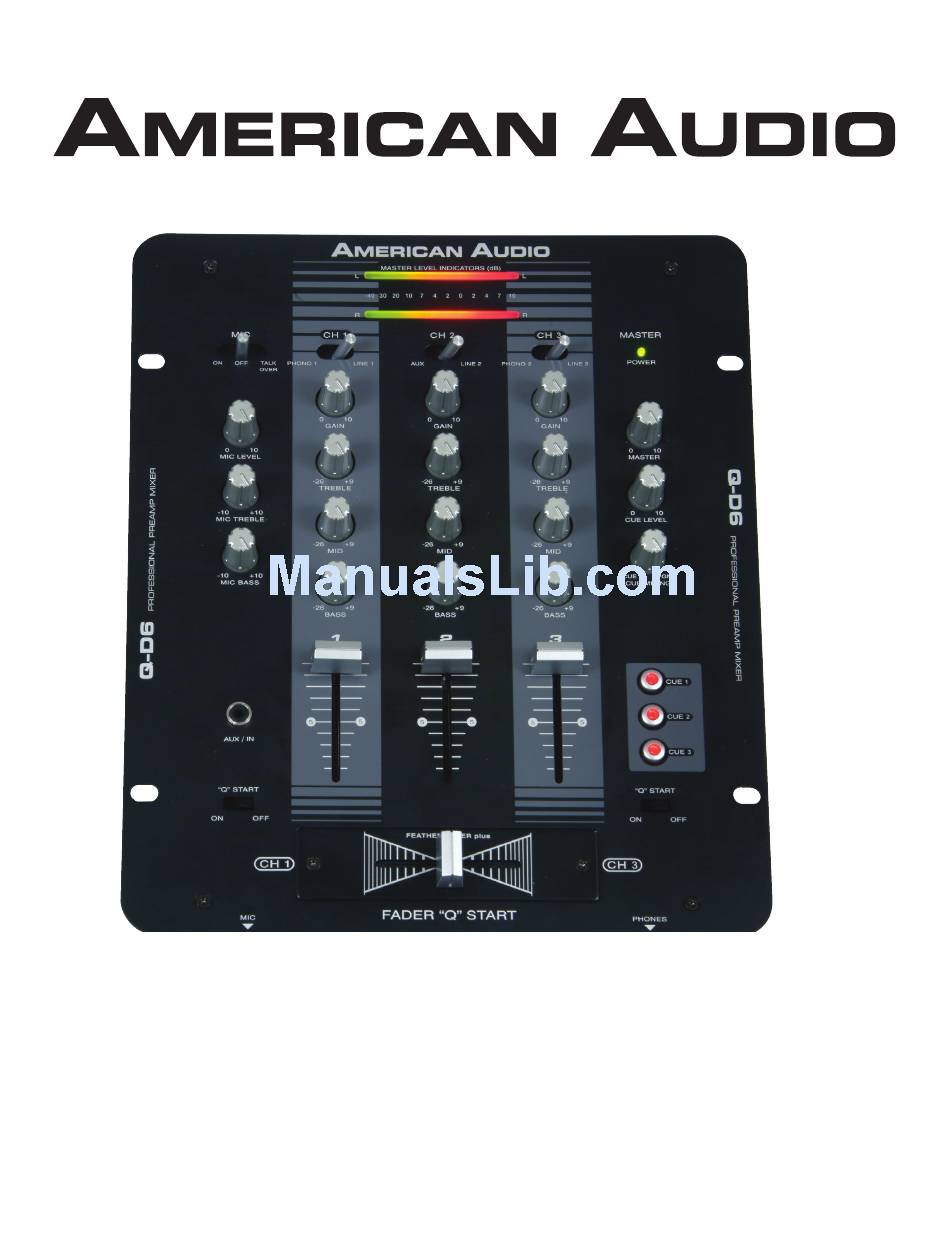

  • Page 1 Q-D6 ™ Professional Preamp Mixer American Audio 4295 Charter Street Los Angeles Ca. 90058 www.americanaudio.us Rev. 4/05...
  • Page 2: Table Of Contents

    • Master LED Level Indicator - • Q-Start Compatible (for use with compatible Indicates Master Signal Levels American Audio CD Players ) • Cue Mixing • -26dB Rotary Kills for Treble, Bass and • Separate gain control for each channel Mids on both channels •...
  • Page 3: Electrical Precautions

    INSIDE REFER SERVICE TO YOUR AUTHORIZED the literature accompanying the appliance. to constitute a risk of electric shock to persons. AMERICAN AUDIO SERVICE TECHNICIAN. ® IMPORTANT SAFETY INSTRUCTIONS READ INSTRUCTIONS — All the safety and operating...
  • Page 4: Safety Precautions

    6. Servicing -The user should not attempt to top cover when the unit is plugged in. If prob- service the Mixer beyond that described in the lems occur with the unit, call American Audio operating instructions. There are no user ser- ®...
  • Page 5: Introduction

    Q-D6™ mixer. This mixer is a rep- ® resentation of American Audio’s continuing commitment to produce the best and highest quality audio products possible at an affordable price. The Q-D6™ comes with a 2 year limited warranty! Please read and understand this manual completely before attempting to operate your new mixer. This book- let contains important information concerning the proper and safe operation of your new mixer.
  • Page 6: Unpacking

    Quick start instructions American Audio would like to thank for your purchase of this great product. For those of you that are to impatient to read the entire user manual we have compiled these quick start instructions. We hope that you will at least read through these instructions to familiarize yourself with the basic understanding of the unit.
  • Page 7: Top Panel

    4. MASTER VOLUME CONTROL - This rotary knob is used to control the master output level (volume). To avoid distorted output try to maintain an average output signal level +4 dB. Be sure this volume American Audio - www.americanaudio.us - Q-D6™ Instruction Manual Page 7 ©...
  • Page 8 The Channel two fader will work when the crossfader is any position. 11. Q-START ON/OFF SWITCH - This function works in conjunction with a compatible American American Audio - www.americanaudio.us - Q-D6™ Instruction Manual Page 8 ©...
  • Page 9 15. MASTER VOLUME LEVEL INDICATORS - The dual MASTER LEVEL LED indicators are used to detail the master output level. The meters will detail the output level of both the left and right chan- nels. American Audio - www.americanaudio.us - Q-D6™ Instruction Manual Page 9 ©...
  • Page 10: Front And Rear Panel

    16. PLAYER CONTROL - These jacks are used to control the “Q-Start” function between the mixer and a compatible American Audio CD Player. Input mini plugs from CD player controller into these jacks, input CD 1 into jack A and CD 2 into jack B.
  • Page 11 1/4 inch (6.3mm) jack. The signal volume will be controlled by the MIC LEVEL (13). The bass and treble levels can also be adjusted by the built-in MICROPHONE EQ (13). American Audio - www.americanaudio.us - Q-D6™ Instruction Manual Page 11 ©...
  • Page 12 C A S S E T T E D E C K SKID PHASE FLANGER TEMPO ON/OFF LOCK 4%/8%/16% SAMPLE PITCH ENTER T U R N TA B L E T U R N TA B L E American Audio - www.americanaudio.us - Q-D6™ Instruction Manual Page 12 © ®...
  • Page 13 Typical Mixer Output Connections Set-Up RCA to RCA Patch Cables RCA to 1/4” Patch Cables C A S S E T T E D E C K Speaker Cables American Audio - www.americanaudio.us - Q-D6™ Instruction Manual Page 13 © ®...
  • Page 14: Cleaning

    Cross Fader Replacement The crossfader is “Hot Swapable” which means it may be replaced at any time, even when power is applied. Only replace with American Audio Part Feather Fader Plus. Replacing with any other model fader may seriously damage your mixer.
  • Page 15: Warranty

    American Audio concludes, after inspection, affects the reliability of the product; ® if the product has been repaired or serviced by anyone other than the American Audio factory unless ® prior written authorization was issued to purchaser by American Audio ;...
  • Page 16: Specifications

    9 +/-2dB at 13KHz / -15 +/-3dB at 13KHz Microphone Equalizer: BASS: 10 +/-2dB at 1000Hz / -10 +/-2dB at 100Hz TREBLE: 10 +/-2dB at 10KHz / -10 +/-2dB at 10KHz American Audio - www.americanaudio.us - Q-D6™ Instruction Manual Page 16 © ®...
  • Page 17 ©American Audio® A Division of the American DJ Group of Companies 4295 Charter Street Los Angeles, CA 90058 USA Tel: 323-582-2650 Fax: 323-582-2610 Web: www.americanaudio.us E-mail: info@americanaudio.us...
