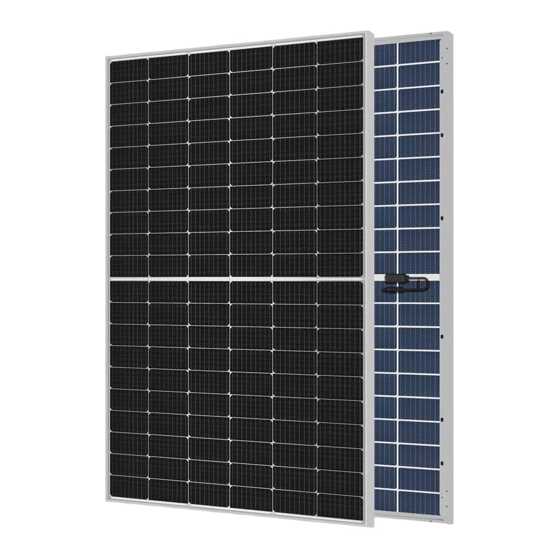

- Page 1 INSTALLATION MANUAL Jolywood N-type Mono-crystalline Double Glass Module M6 Double-glass module（HD120N/P & HD144N/P） All rights reserved © Jolywood (Taizhou) Solar Technology Co., Ltd...
-
Page 2: Table Of Contents
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module Revision Date 2022/6/10 Version: TZ-MP-068-2022-V2 Contents Introduction ………………………………………………………………… Disclaimer …………………………………………………………………… Limitation of Liability ……………………………………………………… Safety Precautions ………………………………………………………… Warning ……………………………………………………………………… General Safety ……………………………………………………………… Operation instruction ……………………………………………………… Unload, Transportation and Storage …………………………………… Marks on Outer Packaging …………………………………………………... -
Page 3: Introduction
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module The module installer must inform the end customer (or consumer) of the above matters Introduction accordingly. This manual contains relevant information about the installation methods and safe operation of photovoltaic modules (hereinafter referred to as "modules") of Jolywood Solar Technology Co., Ltd... -
Page 4: Operation Instruction
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module It is strictly forbidden to use modules with broken operation instruction glass. Damaged modules must not be repaired. 2.3.1 Contact with the surface of the modules may In order to avoid damage module, please do not cause electric shock. -
Page 5: 3.1 Marks On Outer Packaging
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module with recommended shipping method unpacking procedure. In order to avoid damage, scratch or strike module. Do not apply pressure directly on the module during transportation. Improper transportation or installation also may damage module, which is excluded from the warranty. -
Page 6: Unloading Instructions
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module packaged with original package could be transported land, air. During transportation, fixing the package to the transport platform to ensure it would not be tumbled. Taking land transportation as an example. When... -
Page 7: Unpacking Instruction
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module long-term storage modules, modules, and the unpacked modules should be recommended to store them in a standard properly fixed. warehouse for regular patrol inspection. In case of abnormal inclination, please reinforce them in 4.1.2... -
Page 8: Installation
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module 4.2.2 Installation Safety When unpacking, cut all vertical packing belts 5.1.1 The modules produced by Jolywood could with a blade or scissors, first cut the long side installed landscape or portrait, the influence of packing belt, secondly cut the short side packing shading effect caused by dust could be minimized... -
Page 9: Mechanical Installation And Precautions
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module snow and wind loads) depends on the way of 5.1.6 module installed. The mechanical load should be Do not damage the back glass of module when calculated by the professional system designer modules mounted on the bracket. - Page 10 Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module JW-HD120N/P JW-HD120N/P Mounted with 4 clamps along long frame. Mounted with 4 clamps along short frame. C-shaped steel perpendicular to the long frame Edge Clamp: width=40-50mm, height=30mm. Edge Clamp: width=40-50mm, A=50~100mm height=30mm.
-
Page 11: Framed Bifacial Double-Glass Modules (Installation With Bolts)
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module JW-HD120N/P JW-HD144N/P Mounted with 4 clamps along long frame. Mounted with 4 clamps along long frame. Edge Clamp: width=40-50mm, height=30mm. C-shaped steel perpendicular to the long frame A=50~100mm Clamp: width=40-50mm, height=30mm. - Page 12 Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module stainless steel bolts(the screw faces the frame JW-HD120N/P mounting holes) 5.2.3.2 The modules are fastened at 8 points according to load requirements installation requirements(Four points on the long side). 5.2.3.3 The tensile strength of M8*16 stainless steel outer...
-
Page 13: Grounding
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module JW-HD144N/P JW-HD144N/P Use inner four holes for bolt installation The long frame uses the inner four holes C-shaped steel perpendicular to the long frame (1300mm) for bolt installation maximum test load: front ≤5400Pa maximum test load: front ≤2400Pa... -
Page 14: Electrical Installation
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module wrong, may lead to irreparable damage. Before 5.2.5.3 modules connected in parallel, please check the Please visit http://www.jolywood.cn/ to view the voltage and polarity of each module array. If the “Product Catalog” link for detailed grounding polarity of products is opposite or Voltage holes locations and dimensions. -
Page 15: Wiring
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module the component open circuit voltage; Tmin represents minimum ambient temperature; 5.2.7 Wiring In order to ensure PV system could operation smoothly, when connecting modules connecting loads (such as inverters batteries, etc.), ensure that the polarity of the cables is Parallel connection after series connection properly connected (Figure 1 and Figure 2). -
Page 16: Connector And Cable Inspection
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module it must be replaced with same type one. Such as 6.1.5 broken glass, broken cables, damaged junction Cover the front surface of Modules with an opaque box, etc., which would lead to functional and material. -
Page 17: Cleaning
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module If you are not sure whether the array need Cleaning to cleaned, first select a column of particularly The amount of electricity produced by a solar dirty array to begin cleaning. If the power... -
Page 18: Troubleshooting
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module The overall appearance of modules is clean, bright and free of stains. The surface of module should no ash accumulation; there is no obvious scratch on the surface of module. No cracking occurs on the surface of module.
