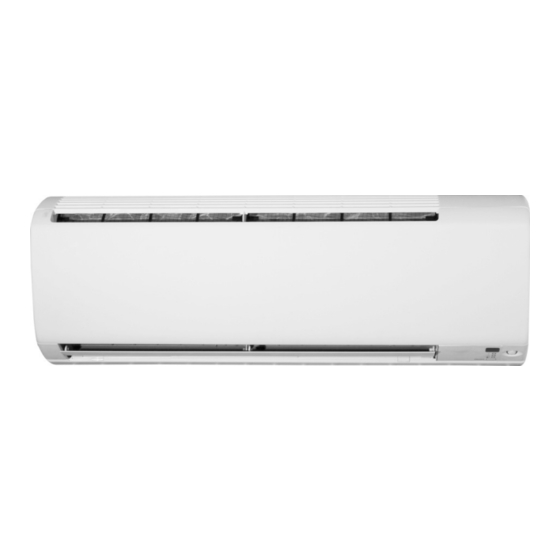

Daikin FTC35PRV16 Service Manual

Daikin FTC35PRV16 Service Manual

Removal procedure

Advertisement

Si041402EC
REMOVAL
PROCEDURE
S E R V I C E
M A N U A L
2.5/3.5/4.2 kW Class
Indoor Unit
Inverter / Non-Inverter
Wall Mounted Type

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FTC35PRV16 and is the answer not in the manual?

Questions and answers

Summarization of Contents

Air Filters Removal
Remove main air filters
Steps for removing the primary air filters from the indoor unit.
Remove optional filters
Procedure for detaching optional air filters if they are installed.
Front Panel Removal Procedure
Open front panel to stop position
Instruction to open the front panel until it reaches its stopping point.
Release left shaft of front panel
Steps to slide and detach the left shaft securing the front panel.
Remove right shaft of front panel
Procedure to remove the right shaft in a similar manner to the left.
Detach front panel
Final step to remove the entire front panel from the unit.
Front Grille Removal
Remove screw covers and screws
Procedure to remove screw covers and screws located on both sides.
Unfasten top hooks of front grille
Instruction to release the three hooks holding the top of the front grille.
Remove front grille assembly
Steps to pull out the upper part and lift the lower part to remove the grille.
Horizontal and Vertical Blade Assemblies Removal
Remove horizontal blade
Steps to unfasten shafts and carefully remove the horizontal blade.
Remove vertical blade assemblies
Procedure to unfasten hooks and detach vertical blade assemblies.
Electrical Box Removal Steps
Remove service cover and wire fixture
Instructions to remove the service cover and the wire fixture.
Disconnect terminal board and connectors
Steps for removing terminal board screws and disconnecting wires.
Release wire harnesses from hooks
Procedure to detach wire harnesses from their securing hooks.
Remove drip proof plate and thermistor
Steps to remove the drip proof plate and the indoor heat exchanger thermistor.
Remove electrical box assembly
Instructions to remove screws, lift, and detach the electrical box.
PCBs Removal Guide
Remove shield plate
Steps to unfasten hooks and detach the shield plate from the unit.
Remove electrical box cover
Instructions to disconnect connectors and remove the electrical box cover.
Remove signal receiver unit
Procedure to unfasten hooks and detach the signal receiver unit.
Remove display/signal receiver PCB
Steps to remove the display/signal receiver PCB after disconnecting.
Remove INTELLIGENT EYE sensor PCB
Procedure to remove the fixing plate and the INTELLIGENT EYE sensor PCB.
Remove control PCB
Steps to unfasten hooks and carefully remove the control PCB.
Drain Pan Unit and Swing Motor Removal
Remove drain pan unit
Instructions to remove screws, press, and twist to detach the drain pan unit.
Remove swing motor
Steps to remove the swing motor shaft and then the motor itself.
Indoor Heat Exchanger Removal
Remove indoor unit from installation plate
Steps to remove fixing screws, disconnect pipes, and detach the unit.
Pull out auxiliary piping
Procedure to slightly pull out the auxiliary piping for disconnection.
Unfasten hooks and remove heat exchanger
Instructions to unfasten hooks and lift/remove the indoor heat exchanger.
Fan Motor and Fan Rotor Removal
Remove right side plate
Steps to remove screws and release the fan motor lead wire from hooks.
Remove fan motor fixing plate
Instructions to remove screws and detach the fan motor fixing plate.
Remove fan motor and fan rotor
Procedure to loosen screws and detach the fan motor and fan rotor.
