- Page 1 INSTALLATION AND OPERATION MANUAL DA-60MT, DA-120MT, DA-240MT DA-350MT, DA-500MT, DA-500RM 6 Zone Mixer Amplifiers with Mp3/FM/BT Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
- Page 2 SAFTY WARNINGS! Read and keep these instructions. Heed all warnings and follow all instructions. Do not use this apparatus near water. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug.
- Page 3 INTRODUCTIONS Description The 6 Zone Mixer Amplifier with MP3, FM tuner & blue tooth, its rated power output from 60W, 120W, 240W, 350W to 500W, it is ideal for school, super market, bank, hotel BGM and speech use. It is all in one solution with two sources, pre amplifier and mixer power amplifier into one 19”...
-
Page 4: Front Panel

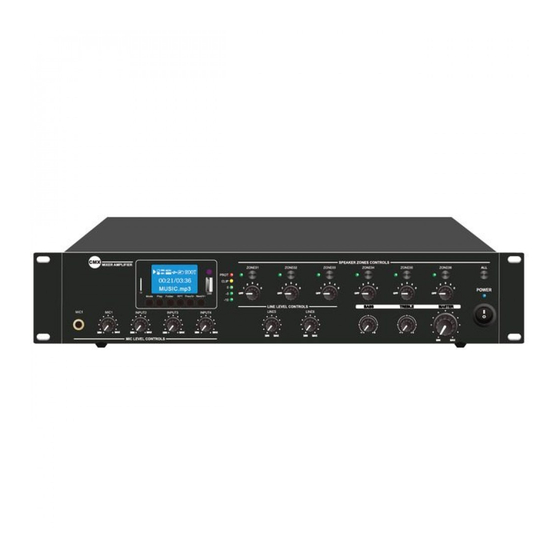

FRONT PANEL Protection Indicator 10. Mic1 Input with VOX priority except EMC Input Clip Indicator 11. Mic1 and Input2-4 Attenuators Output Level Meters 12. Line 5 Attenuator MP3 Module with FM & Blue Tooth 13. Line 6 Attenuator Speaker Zone1-6 Output Volume Attenuators 14. - Page 5 REMOTE PAGING MICROPHONE DA-500RM DESCRIPTION DA-500RM is a remote paging microphone work with DA-*MT series amplifier, which is of 6 zone paging features, its communication distance up to 300 meters through straight CAT6 cable, each amplifier capacity of connection up to 6 units of remote paging microphone, these microphone are connected hand-by hand.
- Page 6 AMPLIFIER OPERATION GUIDANCE 100V Line System For 100V line systems, connect the amplifier to the first speaker in the system using double-insulated speaker wire which has adequate current rating to handle the total output of the amplifier. Connect the “100V” output terminal to the positive (+) connection of the speaker and “COM” output to the negative (-) connection of the speaker.
-
Page 7: Operation Step
OPERATION STEP When all connections to the amplifier are made, turn all rotary controls down and switch on the power and a power “ON” LED will illuminate. Turn BASS and TREBLE controls to the 12 o’clock position (pointing straight up) and turn MASTER rotary control up part way for testing. -
Page 8: Usb/Sd Playback
2. Scan for Bluetooth devices and look for it in the list of available devices (ensure that the amplifier is powered on and within 30-50 meters reception range) 3. Select the blue tooth and the sending device should confirm that it is connected as an audio device 4. -
Page 9: Connection Diagrams
CONNECTION DIAGRAMS SCHEMATIC DIAGRAMS 9 / 10 www.cmxaudio.com... -
Page 10: Specification Sheet
Terms and conditions of warranty for a given product may be determined first by locating the appropriate country which the product was purchased in, then by locating the product type. Guangzhou CMX Audio Co., Limited 302RM 3#, Honghui Industrial Zone, Zhongyuan RD, Shibi Area, Panyu,Guangzhou, China 511497 Web: www.cmxaudio.com...
