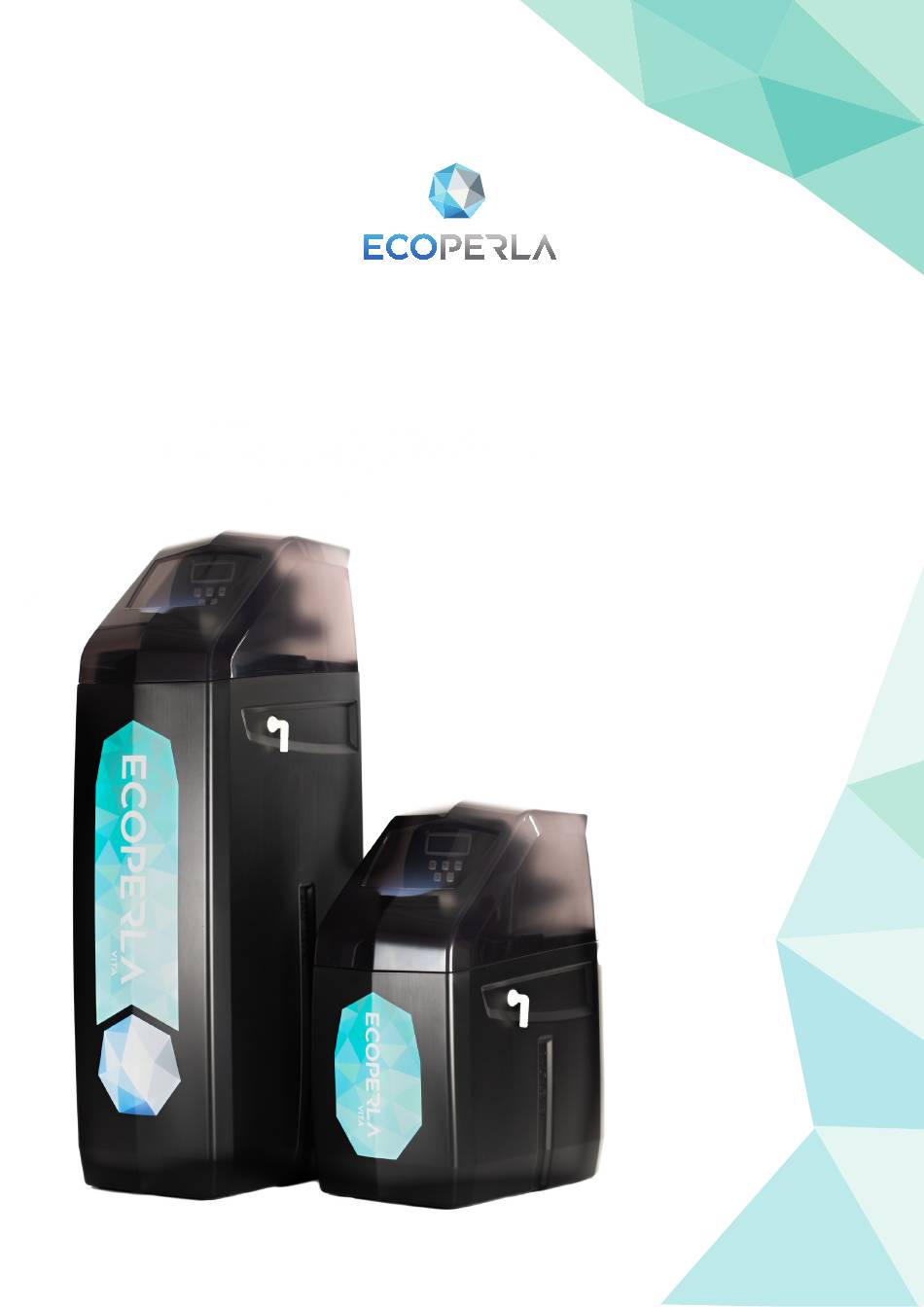

- Page 1 VITA WATER SOFTENER ECOPERLA VITA original product of Ecoperla USER MANUAL...
- Page 2 KEEP THIS USER MANUAL, SINCE IT CONTAINS THE WARRANTY AND THE SERVICE CARD...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. Introduction 1.1. Safety measures 1.2. Water softening 1.3. Description of device operation 1.4. Operation and maintenance 2. Technical data 3. System components 4. Installation and commissioning 4.1. Requirements 4.2. Installation diagram 4.3. Control valve 4.4. Installation 5. - Page 4 6. Operation 6.1. Water softener operation 6.2. General information 6.3. List of requirements for proper operation 6.4. User maintenance 6.5. Medium cleaning 6.6. Medium disinfection 6.7. Consumables 6.8. Loss of warranty 7. Service 7.1. Activities carried out by the service technician 7.2.
-
Page 5: Introduction
1. INTRODUCTION 1.1. SAFETY MEASURES • Read this user manual before installing the device and follow the instructions carefully during installation and ope- ration. The manual contains all necessary information on safety precautions during installation, operation and service of the device. •... -
Page 6: Description Of Device Operation
1.3. DESCRIPTION OF DEVICE OPERATION The Ecoperla Vita water softener uses an ion exchange resin to remove calcium (Ca2+) and magnesium (Mg2+) ions, which cause water hardness. The device removes hardness from water totally or partially. Calcium ions Ca2+ and magnesium ions Mg2+ are removed when water flows through the ion exchange resin in the water softener tank. -
Page 7: Technical Data
2. TECHNICAL SPECIFICATIONS Ecoperla Vita 12 Ecoperla Vita 25 Control valve CLACK CI UF CLACK CI UF Connection 1” GZ 1” GZ Medium amount [L] Medium S1567 monosphere (Lewatit) S1567 monosphere (Lewatit) Recommended flow rate [m3/h] 1,0 m3/h 1,5 m3/h... -
Page 8: System Components
3. SYSTEM COMPONENTS Ecoperla Vita consists of several components: Cabinet with brine tank, float and brine hose, Pressure cylinder, Control valve, Ion exchange resin, Water softener connections, Power supply unit, User manual. 4. INSTALLATION AND COMMISSIONING 4.1. REQUIREMENTS For proper operation, the water softener requires appropriate working conditions: •... -
Page 9: Installation Diagram
4.2. INSTALLATION DIAGRAM ECOPERLA VITA CONNECTION DIAGRAM Treated water Raw water Raw water Treated water Main water shut-off valve Inlet valve to Ecoperla Vita Mechanical water filter Ecoperla Vita Outlet valve from Ecoperla Vita Bypass valve Drain to the sewage system... -
Page 10: Control Valve
4.3. CONTROL VALVE Drain to the sewage DLFC Water outlet system BLFC 1" connection Injector Water inlet Mixer Brine hose inlet Flow meter A control valve is an integral part of the device mounted on the pressure cylinder inside the cabinet. It is responsible for the proper functioning of the device, monitors its operation and controls the regeneration process. -
Page 11: Installation
4.4. INSTALLATION Prepare the site for device installation (in accordance with point 4.1. Requirements). • • Shut off water supply to the installation. • Make water by-pass according to the diagram. • Install pre-filter with a filtering cartridge. • Connect the water inlet to the device. •... -
Page 12: Programming
5. PROGRAMMING 5.1. OPERATING MODE DISPLAYS Current time Remaining ion-exchange capacity Instantaneous flow rate Press NEXT to move to the next display. CAPACITY REMAINING TIME 4.41m 12:00 REGEN 10 l/min TODAY 5.2. LANGUAGE The menu is displayed in English. -
Page 13: Initial Settings
You can return to the previous step by pressing REGEN. * Initial hardness is hardness of untreated water (befo- re softening). In Ecoperla Vita, water hardness units are entered in ppm. A table with water hardness unit conver- sions can be found in point 2.1. -
Page 14: Days Between Regenerations
Press “up” and “down” to enter the time when regeneration starts. SET TIME 2:00 In the case of Ecoperla Vita, we recommend setting the re- REGEN generation time to 2 a.m., as the water demand is lowest at this time. -
Page 15: Individual Operation Mode Setting
5.4.1. Selection of operation mode Press “up” and “down” to select the operation mode: softening and filtration. SOFTENING For Ecoperla Vita, select softening. Press NEXT to move to the next stage. You can return to the previous step by pressing REGEN. 5.4.2. Brine-up time Press “up”... -
Page 16: Rinse Time
5.4.4. Rinse time Press “up” and “down” to enter the quick rinse time in 2 MIN minutes. RINSE Press NEXT to move to the next stage. You can return to the previous step, pressing REGEN 5.4.5. Salt fill in kilograms Press “up”... -
Page 17: Regeneration Frequency
MIXED: regeneration is delayed or starts as soon as the ion exchange capacity is exhausted. For Ecoperla Vita, we recommend the DELAYED regene- ration setting. Press NEXT to move to the next stage. You can return to the previous step by pressing REGEN. -
Page 18: Relay 1 Settings
5.4.9. 1st relay settings This option pulls the 12 V DC signal from the control valve. After activating the 1st relay signal, you can choose the way of activating the relay: - OFF, - when specified amount of time elapses since the last regeneration, for a specific time (HOUR), - when specified volume of water flows since the last regeneration, for a specific time or until water flow ceases,... -
Page 19: Operating History
5.5. OPERATING HISTORY Press “up” and “down” simultaneously and hold the buttons for 5 seconds until the message on the display changes. You will gain access to the basic operating history of the device. Press NEXT to move to the next stage. You can return to the previous step by pressing REGEN. To access the extended history, press “up”... -
Page 20: Reserve Volume
5.5.3. Reserve volume The screen displays reserve volume for 7 days (press “up” and “down” to select the day). 0.88 m Press NEXT to move to the next stage. You can return to the previous step by pressing REGEN. 5.5.4. Regeneration history The screen displays the volume of water softened by the device for the last 63 days (press “up”... -
Page 21: Total Number Of Days
5.6.2. Total number of days The screen displays the total number of days of device operation. Press NEXT to move to the next stage. You can return to the previous step by pressing REGEN. 5.6.3. Total number of regenerations The screen displays the total number of device regenera- tions. -
Page 22: Operation
6. OPERATION 6.1. WATER SOFTENER OPERATION The water softening system requires adding salt tablets to the brine tank. Salt demand depends on total hardness of raw water and average water consumption. The system requires regular, periodic regeneration. Regeneration takes place automatically. This process requires appropriate volume of water and salt for rinsing and brining the medium. -
Page 23: Medium Cleaning
We recommend using Ecoperla Antidotum granules for device maintenance. Use the product only for its intended purpose. 6.6. MEDIUM DISINFECTION We recommend using Ecoperla Antibacter for disinfecting and maintaining the filtering medium. Use the product only for its intended purpose. -
Page 24: Service
7. SERVICE 7.1. ACTIVITIES PERFORMED BY SERVICE TECHNICIAN To ensure many years of trouble-free operation and a 10-year warranty period, the device should be serviced annually after the second year of operation. Basic service activities performed by the service technician during the inspection: •... -
Page 25: Troubleshooting
8. TROUBLESHOOTING Problem Possible cause Solution 1. Control board not displayed on the a. No power at the electrical outlet. a. Repair the damaged outlet or use screen. another working outlet. b. Power supply unit is not connected to b. Connect the power supply unit into the outlet or to the control board. - Page 26 Problem Possible cause Solution d. Wrong programming. d. Refer to the programming instructions. e. The water meter is not connected to e. Connect the water meter to the ME- control board. TER connector on the control board. f. Defective water meter. f.
- Page 27 Problem Possible cause Solution 13. Treated water leaks into the drain. a. Power failure during regeneration. a. Regeneration will be completed when power is restored, set correct time, check battery status. b. Damaged gaskets/piston guide. b. Replace the gasket/piston guide. c.
- Page 28 Problem Possible cause Solution d. Dirt on MAV/NHBP valve piston and/ d. Replace or clean the piston and ga- or gaskets causing high motor resistance. skets of the MAV/NHBP valve and reset the control board. 19. 1007 defect (the display shows code a.
-
Page 29: Service Card
9. SERVICE CARD Maintenance service after Maintenance service after Date of maintenance Date of maintenance 2 years of operation 3 years of operation service: service: Signature of the service technician: Signature of the service technician: Stamp of the service technician: Stamp of the service technician: Maintenance service after Maintenance service after... -
Page 30: Warranty
10. WARRANTY The dealer warrants efficiency of the Ecoperla Vita system in accordance with the warranty conditions included in the user manual. In order to execute the warranty, you need to present proof of purchase of the system. In the case of a problem with the Ecoperla Vita system, please contact your dealer. - Page 31 NOTES...
- Page 32 WWW.ECOPERLA.COM...
