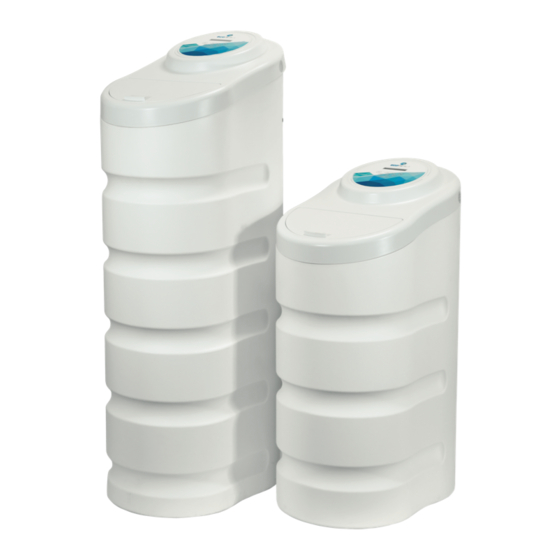

  • Page 1 TORO WATER SOFTENER ECOPERLA TORO original product of Ecoperla USER MANUAL...
  • Page 2 KEEP THIS USER MANUAL, SINCE IT CONTAINS THE WARRANTY AND THE SERVICE CARD...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. Introduction 2. Softening process: operation and regeneration 2.1. Operating mode 2.2. Regeneration mode 3. General technical features 4. Assembly, installation 4.1. Preliminary warnings 4.2. Installation 4.2.1. Choosing installation place 4.2.2. Device connection to water system 4.2.3. Drain hose connection 4.2.4.
  • Page 4 9. Operation 9.1. Water softener operation 9.2. General information 9.3. List of requirements for proper device operation 9.4. User maintenance 9.5. Medium disinfection and cleaning 9.6. System downtime 9.7. Consumables 9.8. Loss of warranty 10. Service 10.1. Activities carried out by the service technician 10.2.

  • Page 5: Introduction

    1. INTRODUCTION This user manual describes the installation, commissioning and maintenance steps of the Ecoperla Toro water softe- ning systems. Please read the manual carefully before installing and commissioning the device. The warranty will be voided if the installation is not carried out correctly.
  • Page 6 3. TECHNICAL SPECIFICATIONS Ecoperla Toro 20 Ecoperla Toro 35 Medium volume [dm3] Nominal flow rate [m3/h] Maximum flow rate [m3/h] [cal] Connection Operating pressure [bar] 2,5-6,0 2-40 Temperature [oC] Average ion exchange 1750 1000 [m3∙mgCaCO3/dm³] capacity [mm] [mm] Dimensions 1050...

  • Page 7: General Technical Features

    4. ASSEMBLY 4.1. PRELIMINARY WARNINGS Ecoperla Toro is a series of cabinet water softeners in two sizes. Device operates properly if you know hardness value of raw water in your household. If water comes from a public water intake, information on hardness can be obtained from water supplier. If water...
  • Page 8 ECOPERLA TORO CONNECTION DIAGRAM Raw water Treated water Treated water Raw water Inlet valve to Ecoperla Toro Mechanical water filter Ecoperla Toro Outlet valve from Ecoperla Toro Bypass valve Drain to the sewage system...

  • Page 9: Device Connection To Water System

    4.2.2. Device connection to water system System must be connected to the feed water with a bypass. You cay use either the original bypass or 3 ball valves installed in the pipeline (Fig. 1). Below is a diagram of the position of the original bypass ball valve, which is attached to the system. Fig.

  • Page 10: Drain Hose Connection

    4.2.3. Drain hose connection The system should be placed as close to the drain as possible. The drain level should be below the softener valve and no further than 3 m. Otherwise please contact your dealer’s technical department. The pipe connecting the device to the sewage system should be connected to the drain stub (fig.

  • Page 11: Electrical Connections

    To install the overflow hose, the overflow cap must be placed in the hole that is located on the side of the brine tank. It should be fixed with a nut and gasket as shown in fig. 5. The overflow cap for cabinet systems can be found in the box and can be fitted to the appropriate side of the ho- using, depending on the location of the system.

  • Page 12: Programming

    Rys. 5 5. PROGRAMMING After connecting the power line, you need to program the programmer. Fig. 6 Programmer front panel Description Button ADVANCE Moves the pointer to set appropriate parameters. TIME&DAY Allows for programming the time and date. INCREASE VALUES AND CONFIRMATION Increases the value of the configured parameters.

  • Page 13: Time And Date Configuration

    Before using the water softener, you need to program the control valve. Default program is mode 4 - METERDELEY - volumetric with delayed regeneration. For programming you need to: set the time (point 5.1, page 11) set the regeneration time and volume of softened water (point 5.2.4.1, page 16) set the regeneration cycles (5.2.5, page 18) 5.1.

  • Page 14: 1St Operating Mode Configuration: Time - Time Operating Mode

    MODE 2: METERIMM – Volumetric mode with immediate regeneration. The system will perform regeneration immediately after softening the specified volume of water. After programming, the following message will appear on the screen: Volume control indicator 14:05 PM 0002000 Service Volume available Status WEEK –...

  • Page 15: Configuration Of Time Regeneration Intervals: Mode 1 - Time - Time Operating Mode

    5.2.1.1. Configuration of time regeneration intervals: MODE 1 - TIME - Time Operating Mode Press SET REGEN to move on to the operating mode. Press INCREASE VALUES AND 02:00 AM CONFIRMATION to set a regeneration Day override hour. 04:00 Press ADVANCE to move on to setting minutes. Day override 04:35 AM Press INCREASE VALUES AND...

  • Page 16: Softened Water Volume Configuration: Mode 2 - Meterimm - Volumetric Mode With Immediate Regeneration

    5.2.2.1. Softened water volume configuration: MODE 2 - METERIMM - Volumetric mode with immediate regeneration Next press SET REGEN Press INCREASE VALUES AND CONFIRMATION to determine the amount of Capacity 0001600 water that can be softened by the resin bed. Press ADVANCE to navigate to the next digit.

  • Page 17: Delay - Volumetric Mode With Delayed Regeneration

    5.2.3.1. Configuration of time and day of week: MODE 3 – WEEK – Operating mode with weekly regeneration Press SET REGEN to move on to the operating mode. Set the desired regeneration time. 01:00 AM Press INCREASE VALUES AND CONFIRMATION MON TRE WED THU FRI SAT to set an hour of regeneration.

  • Page 18: Configuration Of Regeneration Time And Softened Water Volume: Mode 4 Meterdelay - Volumetric Mode With Delayed Regeneration

    5.2.4.1. Configuration of regeneration time and softened water volume: MODE 4 - METERDELAY - Volumetric mode with delayed regeneration Press SET REGEN to move on to regeneration time configuration. Set the desired regeneration time. 01:00 AM DAY: OFF Press INCREASE VALUES AND CONFIRMATION Capacity: 00001600 to set an hour of regeneration.
  • Page 19 CALCULATION TABLE FOR PROGRAMMING THE VOLUME OF WATER SOFTE- NED BY THE ECOPERLA TORO SYSTEM, DEPENDING ON WATER HARDNESS Capacity General hardness (number of litres of water be- tween regenerations) German degrees [od] French degrees [of] [mgCaCO3/dm³] ([ppm]) [dm³] [dm³]...

  • Page 20: Configuration Of Regeneration Cycles

    25,8 2174 3435 26,4 2128 3362 2083 3291 27,5 2041 3225 28,1 2000 3160 28,7 1961 3098 29,2 1923 3038 29,8 1887 2981 30,3 1852 2926 30,9 1818 2872 31,5 1786 2822 1754 2771 32,6 1724 2724 33,1 1695 2678 33,7 1667 2634...

  • Page 21: Water Softener Commissioning

    See the attached table to determine the volume of softened water depending on the resin. MODEL REGENERATION CYCLE BACKWASH BRINE DRAW RAPID RINSE REFILL Toro 20 60min 4min 5min 4min 70min 10min Toro 35 4min 6min 6. WATER SOFTENER COMMISSIONING Once the hydraulic system and power source have been connected and the controller has been programmed, the system can be put into operation.
  • Page 22 BEWARE: If the valve is opened too much or too quickly, damage may occur inside the softener due to hydraulic shock. Listen as air slowly escapes down the drain to the sewage system. Press and release MANUAL REGENERATION to move on to the next regeneration cycles. Repeat this operation until you reach CYCLE 4, REFILL to vent the brine hose.
  • Page 23 You should also disinfect the system every 6 months. For more detailed information, consult the technical department. BEWARE: We recommend using the Ecoperla Antidotum medium cleaning granulate every 6 months, alternating with Ecoperla Antibacter disinfectant. It is the best combination for main- tenance of the filtering medium.

  • Page 24: Messages On Screen

    7. MESSAGES ON SCREEN 7.1. Automatic lock If the programmer keypad has not been used for a while, the automatic lock is activated. This option disables the screen backlighting in order to save energy. When any key is pressed, the following message will appear on the display: Press and then To unlock the controller, press...

  • Page 25: Information Displayed On The Screen In Operating Mode Depending On Selected Configuration

    8. INFORMATION DISPLAYED ON THE SCREEN IN OPERATING MODE DEPENDING ON SELECTED CONFIGURATION 8.1. Delayed time program: TIME: Delayed clockwork Day of the week Time 12:00 PM 02day02h00min Service Time remaining Status until the next regeneration 8.2. Weekly program: WEEK: weekly clockwork Day of the week Time 12:00 PM...

  • Page 26: Operation

    When the counter reaches zero, the following message will appear: Day of the week Volumetric Time 12:00 PM indicator 02h00min Service Time remaining Status until the next regeneration Delayed regeneration 9. OPERATION 9.1. Water softener operation You need to add salt tablets to the brine tank of the water softening system. Salt demand depends on total hardness of raw water and average water consumption.

  • Page 27: User Maintenance

    9.6. System downtime If your water softener has not been used for a month or more, you should disinfect it with Ecoperla Antibacter and Ecoperla Antidotum. Please contact the Klarsan Service Department. 9.7. Consumables List of consumables: •...

  • Page 28: Service

    10. SERVICE 10.1. Activities performed by service technician To ensure many years of trouble-free operation and a 10-year warranty period, the device should be serviced annually after the second year of operation. Basic service activities performed by the service technician during the inspection: •...

  • Page 29: Troubleshooting

    11. TROUBLESHOOTING Problem Possible cause Solution 1. The display does not turn on. a. The power supply cable is a. Connect power supply. disconnected from the transformer. b. No power at the power outlet. b. Repair the outlet or use another functional outlet.
  • Page 30 Problem Possible cause Solution 9. The system uses more or less salt than a. Incorrectly set value. a. Set the correct value. set. b. Foreign body in BLFC causing incor- b. Remove and clean BLFC. Program the rect flow system manually to extract brine in order to clean the floats.

  • Page 31: Service Card

    12. SERVICE CARD Maintenance service after Date of maintenance Maintenance service after Date of maintenance 2 years of operation 3 years of operation service: service: Signature of the service technician: Signature of the service technician: Stamp of the service technician: Stamp of the service technician: Maintenance service after Date of maintenance...

  • Page 32: Warranty

    13. WARRANTY The dealer warrants efficiency of Ecoperla Toro in accordance with the warranty conditions included in the user manual. In order to execute the warranty, you need to present proof of purchase of the system. In the case of a problem with Ecoperla Toro, please contact your dealer.
  • Page 33 NOTES...
  • Page 34 NOTES...
  • Page 35 NOTES...
  • Page 36 WWW.ECOPERLA.COM...
