OWNER'S HANDBOOK
01

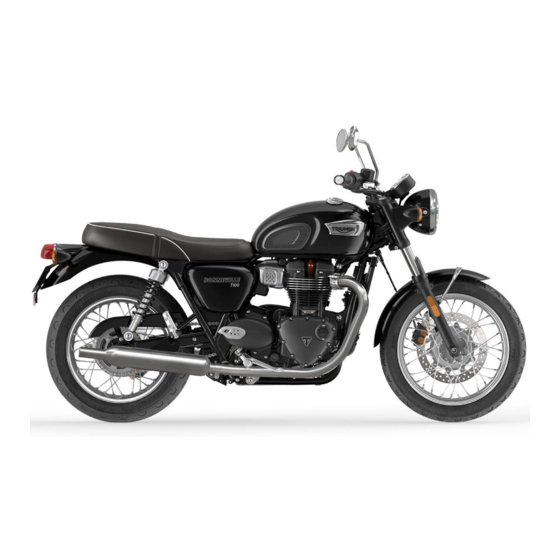

Bonneville T100 (all models),
Bonneville T120 (all models), Speed Twin (all models),
Scrambler 900 and Thruxton RS
This handbook contains information on the Triumph Bonneville T100 (all models), Bonneville T120 (all models),
Speed Twin (all models), Scrambler 900 and Thruxton RS motorcycles. Always store this Owner's Handbook with the
motorcycle and refer to it for information whenever necessary.
The information contained in this publication is based on the latest information available at the time of printing.
Triumph reserves the right to make changes at any time without prior notice, or obligation.
Not to be reproduced wholly or in part without the written permission of Triumph Motorcycles Limited.
© Copyright 01.2022 Triumph Motorcycles Limited, Hinckley, Leicestershire, England.
Publication part number 3850211-US-EN issue 1
Advertisement
Chapters
Table of Contents
Related Manuals for Triumph Speed Twin 900
Summarization of Contents
FOREWORD
Warnings, Cautions and Notes
Explains how important information is presented using symbols for warnings, cautions, and notes.
Warning Labels
Describes the meaning of warning symbols and where to find relevant information in the handbook.
Maintenance
Advises on proper motorcycle maintenance procedures and dealer recommendations.
Noise Control System
Warns against tampering with the noise control system and lists prohibited acts.
Owner's Handbook
Emphasizes the importance of the handbook for safe operation and familiarization with the motorcycle.
SAFETY FIRST
The Motorcycle - General Use
Details the motorcycle's design for on-road use and weight limitations for rider and luggage.
The Motorcycle - Scrambler 900 Specifics
Outlines light off-road use for Scrambler 900, including restrictions on jumping and obstacles.
Motorcycle Limitations
Warns against towing trailers or using sidecars and mentions spoke checks for off-road use.
Wheel Rim and Spoke Checks
Advises regular checks of wheel rims and spoke tension for safe handling and stability.
Fuel and Exhaust Fumes Safety
Provides safety guidelines for refueling and operating in areas with exhaust fumes.
Helmet and Clothing Recommendations
Stresses the importance of appropriate riding gear, including helmets, eye protection, and brightly colored clothing.
Parking Safety Precautions
Details safe parking practices, including engine off, key removal, and avoiding unstable surfaces.
Approved Parts and Accessories
Warns against using non-approved parts and accessories, highlighting potential safety hazards.
Maintenance and Equipment Safety
Advises consulting dealers for doubts on operation and ensuring all legal equipment is installed correctly.
Riding Safety Guidelines
Covers safe riding practices, licensing, training, and defensive riding strategies.
Speed and Handling
Advises operating within legal speed limits and reducing speed in hazardous conditions for safety.
Wobble and Weave Handling
Explains how to manage motorcycle stability issues like wobbles and weaves safely.
Handlebar and Footrest Use
Emphasizes maintaining control by keeping hands on handlebars and using footrests for rider and passenger safety.
Bank Angle Indicators
Explains the function and limitations of bank angle indicators for safe cornering.
WARNING LABEL LOCATIONS
Warning Label 1 - General Warning Symbol
Identifies the general warning symbol indicating potential hazards.
Warning Label 2 - Breaking-In Period
Highlights the importance of the breaking-in period for motorcycle longevity and performance.
Warning Label 3 - Helmet Use
Stresses the mandatory use of helmets for rider and passenger safety.
Warning Label 4 - Luggage Rack
Indicates the location and purpose of the luggage rack, if equipped.
Warning Label 5 - Panniers
Points out the location of panniers, if equipped.
Warning Label 6 - Tire Information
Directs to information regarding tires, including pressure and wear for safe operation.
Warning Label 7 - Daily Safety Checks
Emphasizes the necessity of performing daily safety checks before riding.
Warning Label 8 - Coolant Level
Guides on checking and maintaining the motorcycle's coolant level for optimal engine cooling.
Warning Label 1 - Engine Oil Check
Highlights the importance of checking engine oil levels for proper lubrication and engine health.
Warning Label 2 - Fuel Type E5/E10
Specifies compatibility with E5 and E10 unleaded fuel types.
Warning Label 3 - Unleaded Fuel Type
Details the requirement for using unleaded fuel for motorcycle operation.
Warning Label 4 - Mirror Adjustment
Advises on proper mirror adjustment for adequate rearward visibility and safety.
Warning Label 5 - Windshield Care
Provides guidance on cleaning and maintaining the windshield for clear visibility.
Warning Label 6 - Tire Pressure Monitoring
Refers to the Tire Pressure Monitoring System for checking tire pressure.
Warning Label 7 - Drive Chain Maintenance
Points to drive chain maintenance procedures for optimal performance and safety.
Warning Label 8 - Tire Specifications
Directs to tire specifications for correct fitment and safety.
PARTS IDENTIFICATION
Bonneville T100/T120 Component Identification
Illustrates and labels major external parts of the Bonneville T100 and T120 models.
Bonneville T100/T120 Component Identification - Continued
Continues the illustration and labeling of parts for Bonneville T100 and T120 models.
Scrambler 900 Component Identification
Illustrates and labels major external parts of the Scrambler 900 model.
Scrambler 900 Component Identification - Continued
Continues the illustration and labeling of parts for the Scrambler 900 model.
Speed Twin 1200 Component Identification
Illustrates and labels major external parts of the Speed Twin 1200 model.
Speed Twin 1200 Component Identification - Continued
Continues the illustration and labeling of parts for the Speed Twin 1200 model.
Speed Twin 900 Component Identification
Illustrates and labels major external parts of the Speed Twin 900 model.
Speed Twin 900 Component Identification - Continued
Continues the illustration and labeling of parts for the Speed Twin 900 model.
Thruxton RS Component Identification
Illustrates and labels major external parts of the Thruxton RS model.
Thruxton RS Component Identification - Continued
Continues the illustration and labeling of parts for the Thruxton RS model.
Rider View Parts Identification
Identifies controls and components visible to the rider from the handlebar perspective.
Rider View Parts Identification - Scrambler/Speed Twin 900
Identifies rider controls for Scrambler 900 and Speed Twin 900 from the handlebar perspective.
SERIAL NUMBERS
Vehicle Identification Number (VIN)
Explains the location and importance of the VIN for vehicle identification and registration.
Engine Serial Number
Details the location of the engine serial number for identification and service purposes.
GENERAL INFORMATION
Instrument Panel Layout Overview
Provides an overview of the motorcycle's instrument panel and the layout of its indicators and displays.
Warning Lights Explanation
Details the meaning and function of various warning lights on the instrument panel for safety.
Instruments - Speedometer and Odometer
Explains the function of the speedometer for road speed and the odometer for total distance traveled.
Instruments - Tachometer and Gear Display
Describes the tachometer for engine speed and the gear position display for current gear selection.
Instruments - Fuel Gauge and Range
Explains the fuel gauge indicating fuel level and the range to empty display for fuel management.
Instruments - Average Fuel Consumption and Trip Meter
Details how to read average fuel consumption and use the trip meter for distance tracking.
Instruments - Clock and Adjustment
Covers accessing and adjusting the motorcycle's clock display for timekeeping.
Riding Modes Explanation
Describes the available riding modes and their impact on throttle response and traction control settings.
Cruise Control System Operation
Explains how to activate, deactivate, and use the cruise control system for consistent speed maintenance.
Traction Control System (TC) Operation
Details the function, engagement, and settings of the traction control system for improved grip.
Tire Pressure Monitoring System (TPMS) (if equipped)
Explains the TPMS function, sensor serial numbers, and system display for monitoring tire pressure.
Ignition Switch and Steering Lock
Covers the operation of the ignition switch, steering lock, and related safety features.
Handlebar Controls Overview
Identifies and explains the function of various switches located on the right and left handlebars.
Throttle Control System
Describes the electronic throttle control system, its operation, and potential malfunctions.
Clutch Lever Free Play Adjustment
Provides instructions for adjusting the clutch lever free play for optimal control and comfort.
Brake Lever Adjustment Procedure
Details how to adjust the brake lever reach for comfortable and safe operation.
Fuel Requirements and Safety
Specifies required fuel grades, ethanol content, and safety precautions for refueling.
Motorcycle Parking Procedures
Outlines correct procedures for parking the motorcycle using the side stand or center stand.
Side and Center Stand Operation
Explains the use and safety precautions associated with the side and center stands.
Accessing Components - Side Panels
Describes how to remove side panels to access specific components for maintenance or inspection.
Tool Kit and Owner's Handbook Location
Details the location of the tool kit and the owner's handbook for user convenience.
Helmet Hook Usage and Safety
Explains how to use the helmet hook and safety considerations related to carrying helmets.
Seat Care and Removal/Installation
Provides guidance on seat care, removal, and installation procedures for different models.
Universal Serial Bus (USB) Socket Function
Describes the function and safety precautions for the motorcycle's USB power socket.
Breaking-In Procedure and Guidelines
Outlines the recommended breaking-in process for new motorcycles to ensure optimal performance and longevity.
Daily Safety Checks Checklist
Lists essential daily checks to ensure the motorcycle is safe and ready for operation.
HOW TO RIDE THE MOTORCYCLE
Motorcycle Starting Procedure
Details the step-by-step process for safely starting the motorcycle's engine.
Neutral Indicator Light Function
Explains the neutral indicator light and its role in confirming the transmission state.
Engine Stopping Procedure
Provides instructions on how to properly stop the motorcycle's engine using the ignition switch.
Safe Engine Starting Practices
Emphasizes safety guidelines for starting the engine, including ventilation and starter operation limits.
Moving Off Safely
Guides on how to move the motorcycle off from a standstill, covering clutch and throttle coordination.
Gear Shifting Techniques
Explains the process of shifting gears up and down for smooth acceleration and deceleration.
Braking System Operation
Details the correct use of front and rear brakes for effective and safe stopping.
Anti-lock Braking System (ABS) Function
Explains the ABS system's purpose, operation, and limitations for enhanced braking safety.
ABS Warning Light Interpretation
Describes the ABS warning light's behavior and what it indicates about the system's status.
Motorcycle Parking Guidelines
Provides essential guidelines for safely parking the motorcycle in various conditions to prevent falls.
High Speed Operation Considerations
Discusses important factors and precautions for operating the motorcycle at high speeds.
ACCESSORIES, LOADING AND PASSENGERS
Adding Accessories and Weight
Warns about the impact of accessories and added weight on motorcycle handling and stability.
General Accessory Installation Warnings
Advises against installing accessories that may negatively affect motorcycle control or operation.
Load Distribution and Security
Provides guidelines for evenly distributing and securely attaching loads to maintain motorcycle stability.
Passenger Seat and Luggage Rack Limits
Specifies weight limits for the passenger seat and luggage rack, and attachment requirements.
Passenger Safety and Riding Instructions
Instructs passengers on proper seating, posture, and interaction with the rider for safe operation.
Passenger Footrest and Stability
Emphasizes the importance of passenger footrest reach for secure seating and overall stability.
Motorcycle Handling with Passenger
Explains how a passenger affects motorcycle handling and braking, requiring rider adaptation.
MAINTENANCE AND ADJUSTMENT
Scheduled Maintenance Overview
Outlines the importance of scheduled maintenance and owner responsibilities for motorcycle upkeep.
Engine Oil Level Inspection
Details the procedure for checking the engine oil level using the sight glass for proper lubrication.
Engine Oil and Filter Replacement
Provides step-by-step instructions for changing the engine oil and oil filter according to maintenance schedules.
Cooling System Maintenance
Explains the importance of maintaining the cooling system, including coolant type and safety precautions.
Coolant Level Inspection and Adjustment
Guides on how to check and adjust the coolant level in the expansion tank for optimal engine cooling.
Throttle Control System Maintenance
Advises on inspecting the throttle control for proper feel and function, addressing potential sticking issues.
Clutch Lever Free Play Adjustment
Details the procedure for adjusting the clutch lever free play to ensure correct engagement and disengagement.
Drive Chain Maintenance and Lubrication
Covers essential drive chain maintenance, including lubrication frequency and methods for optimal performance.
Drive Chain Free Movement Adjustment
Explains how to inspect and adjust the drive chain's free movement within specified limits.
Drive Chain and Sprocket Wear Inspection
Guides on inspecting the drive chain and sprockets for wear and damage, recommending timely replacement.
Brake Pad Inspection and Replacement
Details how to inspect brake pads for wear and the procedure for replacing them as a wheel set.
Disc Brake Fluid Maintenance
Explains the importance of maintaining brake fluid quality and the procedure for its replacement.
Front Brake Fluid Level Check
Guides on inspecting and adjusting the front brake fluid level in the reservoir for optimal braking performance.
Rear Brake Fluid Level Check
Details the procedure for inspecting and adjusting the rear brake fluid level in its reservoir.
Brake Light Switch Functionality
Explains the independent operation of front and rear brake lights and troubleshooting for malfunctions.
Mirror Adjustment and Safety
Advises on proper mirror adjustment for clear rearward vision and safety while riding.
Steering Head and Wheel Bearing Inspection
Covers the inspection of steering head and wheel bearings for proper lubrication and free play.
Front Suspension Adjustment and Settings
Explains front suspension adjustments, including preload and damping, with specific settings for Thruxton RS.
Rear Suspension Adjustment and Settings
Details rear suspension adjustments for preload, rebound, and compression damping across different models.
Tire Wear and Replacement Guidelines
Provides information on tire wear limits, minimum tread depth, and guidelines for tire replacement.
Tire Pressure Monitoring System (TPMS) Usage
Explains the use of TPMS, sensor care, and precautions when mounting tires.
Battery Maintenance and Charging
Covers battery safety, maintenance, charging procedures, and precautions for storage.
Fuse Box Location and Identification
Shows the location of the fuse box and provides a table identifying fuses by circuit and rating.
Headlight Bulb Replacement Procedure
Guides on how to replace headlight and position light bulbs, including safety warnings.
Headlight Beam Adjustment
Explains how to adjust the headlight beam for optimal road illumination and to avoid dazzling other traffic.
Turn Signal Light Bulb Replacement
Details the procedure for replacing turn signal light bulbs, including model-specific instructions.
License Plate Light Bulb Replacement
Provides instructions for changing the license plate light bulb.
CLEANING AND STORAGE
Motorcycle Cleaning Best Practices
Offers advice on regular cleaning to preserve the motorcycle's appearance and prevent corrosion.
Washing Preparation and Precautions
Details precautions to take before washing, such as protecting specific areas and removing jewelry.
Safe Motorcycle Washing Techniques
Guides on the proper washing method, including water temperature, cleaner choice, and avoiding abrasive materials.
Areas Requiring Careful Cleaning
Highlights specific areas on the motorcycle that require careful attention during cleaning to prevent damage.
Paintwork Care - Gloss and Matt Finishes
Provides care instructions for both gloss and matt paintwork, including polishing and scratch removal advice.
Care for Aluminum Components
Offers guidance on cleaning unlacquered or unpainted aluminum parts to maintain their appearance.
Chrome and Stainless Steel Care
Explains how to clean and protect chrome and stainless steel parts, warning against silicone and abrasives.
Black Chrome Finish Care
Advises on maintaining the appearance of black chrome components, suggesting light oil application.
Exhaust System Cleaning
Details how to clean exhaust system parts, including warnings about heat and water entry.
Seat Care and Cleaning
Provides instructions for cleaning and maintaining the motorcycle seat, warning against harsh chemicals.
Windshield Care and Cleaning
Offers guidance on cleaning the windshield and safety precautions related to its condition.
Leather Product Care and Maintenance
Explains how to clean and care for leather products to ensure their longevity and appearance.
Motorcycle Storage Preparation
Outlines the steps needed to prepare the motorcycle for storage, including fuel, battery, and spark plugs.
Post-Storage Motorcycle Preparation
Details the steps required to prepare the motorcycle for riding after it has been stored.
WARRANTY
Triumph Warranty Terms and Conditions
Outlines the manufacturer's warranty terms, duration, and owner responsibilities for maintaining coverage.
Warranty Conditions and Exclusions
Lists conditions that may void the warranty and items that are not covered by the manufacturer's warranty.
Noise Control System Warranty
Details the specific warranty coverage for the motorcycle's noise control system and compliance with regulations.
Tampering with Noise Control System
Warns against tampering with the noise control system and lists acts that constitute tampering, voiding warranty.
Emission Control System Warranty
Explains the warranty coverage for the emission control system and compliance with environmental standards.
California Emissions Control Warranty
Details the specific emissions warranty requirements and rights applicable in California.
Manufacturer's Warranty Coverage
Summarizes the manufacturer's warranty coverage periods for emission-related parts.
Owner's Warranty Responsibilities
Clarifies the owner's responsibilities regarding motorcycle maintenance and presenting it for warranty service.
Emission Warranty Coverage Details
Lists the specific parts and components covered under the emission control system warranty.
Emission Warranty Exclusions
Specifies what is not covered by the emission control system warranty, including misuse and lack of maintenance.
Triumph Overseas Support
Provides information on obtaining assistance or advice from Triumph dealers when traveling abroad.
Motorcycle Care and Appearance
Offers advice on caring for the motorcycle's materials and finishes to maintain its appearance and durability.
SPECIFICATIONS
Bonneville T100 and Bonneville T120 Specifications
Lists detailed specifications for Bonneville T100 and T120 models, covering dimensions, engine, and cooling.
Bonneville T100/T120 - Fuel System and Ignition
Details specifications for the fuel system, fuel type, and ignition system for Bonneville T100/T120.
Bonneville T100/T120 - Transmission and Gears
Provides specifications for the transmission type, clutch, final drive, and gear ratios for Bonneville T100/T120.
Bonneville T100/T120 - Tires and Wheels
Lists tire sizes, pressures, and approved tire combinations for Bonneville T100/T120 models.
Bonneville T100/T120 - Electrical and Frame Specs
Details electrical equipment specifications and frame geometry for Bonneville T100/T120 models.
Bonneville T100/T120 - Tightening Torques
Lists essential tightening torque specifications for various motorcycle components on Bonneville T100/T120.
Bonneville T100/T120 - Fluids and Lubricants
Specifies the required fluids and lubricants, including grease, brake fluid, coolant, and engine oil for Bonneville T100/T120.
Scrambler 900 Specifications
Lists detailed specifications for the Scrambler 900 model, covering dimensions, engine, and cooling.
Scrambler 900 - Fuel System and Ignition
Details specifications for the fuel system, fuel type, and ignition system for the Scrambler 900.
Scrambler 900 - Transmission and Gears
Provides specifications for the transmission type, clutch, final drive, and gear ratios for the Scrambler 900.
Scrambler 900 - Tires and Wheels
Lists tire sizes, pressures, and approved tire combinations for the Scrambler 900 model.
Scrambler 900 - Electrical and Frame Specs
Details electrical equipment specifications and frame geometry for the Scrambler 900 model.
Scrambler 900 - Tightening Torques
Lists essential tightening torque specifications for various components on the Scrambler 900.
Scrambler 900 - Fluids and Lubricants
Specifies the required fluids and lubricants for the Scrambler 900, including grease, brake fluid, coolant, and engine oil.
Speed Twin 900 Specifications
Lists detailed specifications for the Speed Twin 900 model, covering dimensions, engine, and cooling.
Speed Twin 900 - Fuel System and Ignition
Details specifications for the fuel system, fuel type, and ignition system for the Speed Twin 900.
Speed Twin 900 - Transmission and Gears
Provides specifications for the transmission type, clutch, final drive, and gear ratios for the Speed Twin 900.
Speed Twin 900 - Tires and Wheels
Lists tire sizes, pressures, and approved tire combinations for the Speed Twin 900 model.
Speed Twin 900 - Electrical and Frame Specs
Details electrical equipment specifications and frame geometry for the Speed Twin 900 model.
Speed Twin 900 - Tightening Torques
Lists essential tightening torque specifications for various components on the Speed Twin 900.
Speed Twin 900 - Fluids and Lubricants
Specifies the required fluids and lubricants for the Speed Twin 900, including grease, brake fluid, coolant, and engine oil.
Speed Twin 1200 Specifications
Lists detailed specifications for the Speed Twin 1200 model, covering dimensions, engine, and cooling.
Speed Twin 1200 - Fuel System and Ignition
Details specifications for the fuel system, fuel type, and ignition system for the Speed Twin 1200.
Speed Twin 1200 - Transmission and Gears
Provides specifications for the transmission type, clutch, final drive, and gear ratios for the Speed Twin 1200.
Speed Twin 1200 - Tires and Wheels
Lists tire sizes, pressures, and approved tire combinations for the Speed Twin 1200 model.
Speed Twin 1200 - Electrical and Frame Specs
Details electrical equipment specifications and frame geometry for the Speed Twin 1200 model.
Speed Twin 1200 - Tightening Torques
Lists essential tightening torque specifications for various components on the Speed Twin 1200.
Speed Twin 1200 - Fluids and Lubricants
Specifies the required fluids and lubricants for the Speed Twin 1200, including grease, brake fluid, coolant, and engine oil.
Thruxton RS Specifications
Lists detailed specifications for the Thruxton RS model, covering dimensions, engine, and cooling.
Thruxton RS - Fuel System and Ignition
Details specifications for the fuel system, fuel type, and ignition system for the Thruxton RS.
Thruxton RS - Transmission and Gears
Provides specifications for the transmission type, clutch, final drive, and gear ratios for the Thruxton RS.
Thruxton RS - Tires and Wheels
Lists tire sizes, pressures, and approved tire combinations for the Thruxton RS model.
Thruxton RS - Electrical and Frame Specs
Details electrical equipment specifications and frame geometry for the Thruxton RS model.
Thruxton RS - Tightening Torques
Lists essential tightening torque specifications for various components on the Thruxton RS.
Thruxton RS - Fluids and Lubricants
Specifies the required fluids and lubricants for the Thruxton RS, including grease, brake fluid, coolant, and engine oil.
APPROVAL INFORMATION
FCC Statement
Details compliance with FCC rules regarding radio frequency interference and device operation.
Canadian Approval
Outlines Canadian regulatory compliance for license-exempt transmitters and exposure limits.
Need help?
Do you have a question about the Speed Twin 900 and is the answer not in the manual?
Questions and answers
