Installing The System In The Rack - Dell PowerVault 220S Installation Manual

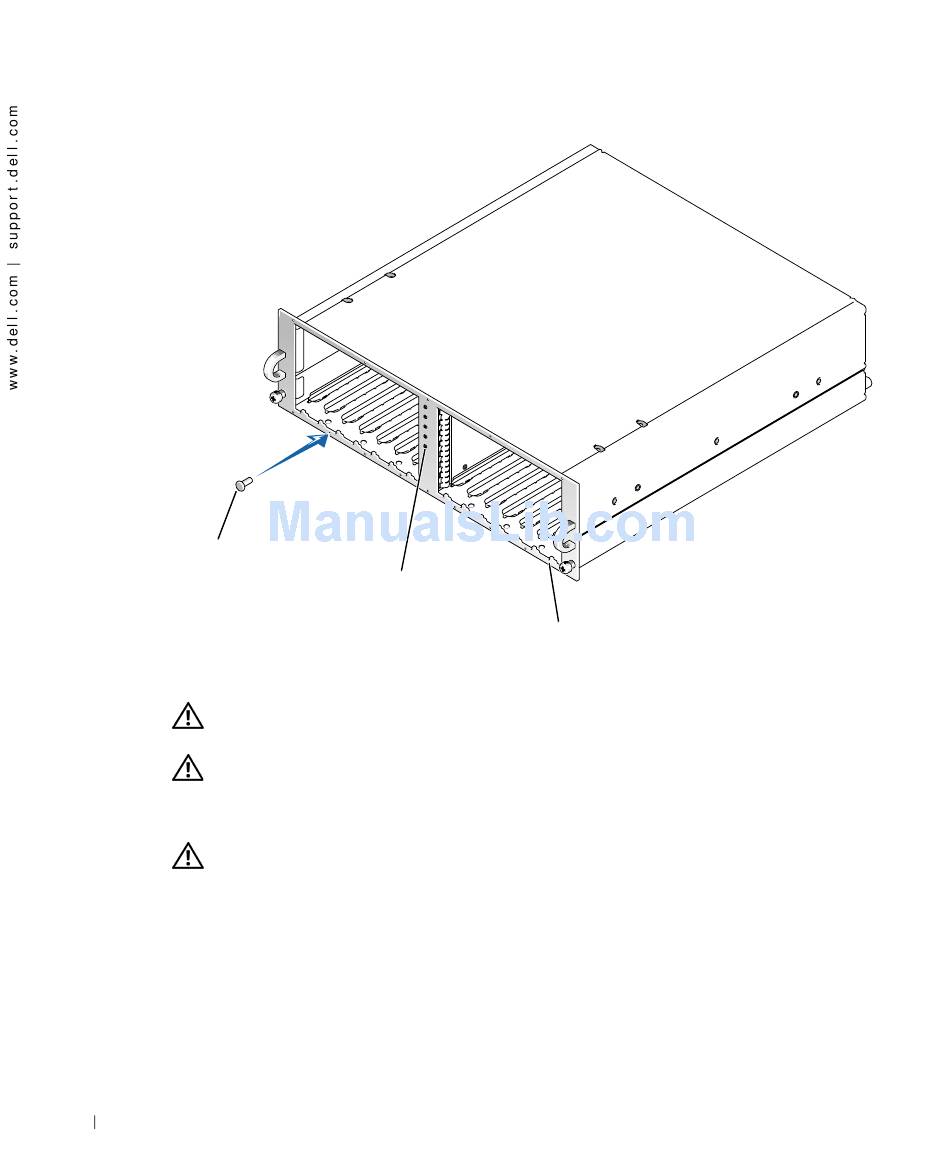

F i g u r e 1 - 9 .
screws (14)

Installing the System in the Rack

CAUTION: If you are installing more than one system, install the heaviest system
in the lowest available position in the rack.
CAUTION: Never pull more than one component out of the rack at a time.
Lift the system into position in front of the mounting rails you installed in the rack
1
cabinet.
CAUTION: Because of the size and weight of the system, never attempt to install
the system in the rails by yourself.
Slide the system into the rack until the system front panel is against the vertical rails
2
(see Figure 1-10).
Tighten the captive thumbscrews on each side of the system's front panel.
3
1-14 Rac k I nst allat io n G uide
I n s t a l l i n g t h e R a c k F r o n t P a n e l
light pipes (5)
front panel
