1-8 Compaq StorageWorks Fibre Channel Troubleshooting Guide
Storage Hub 7
The Compaq Fibre Channel Storage Hub 7 functions as the central point of interconnect for the
FC-AL. The Storage Hub 7 has seven I/O ports located on the rear of the unit.

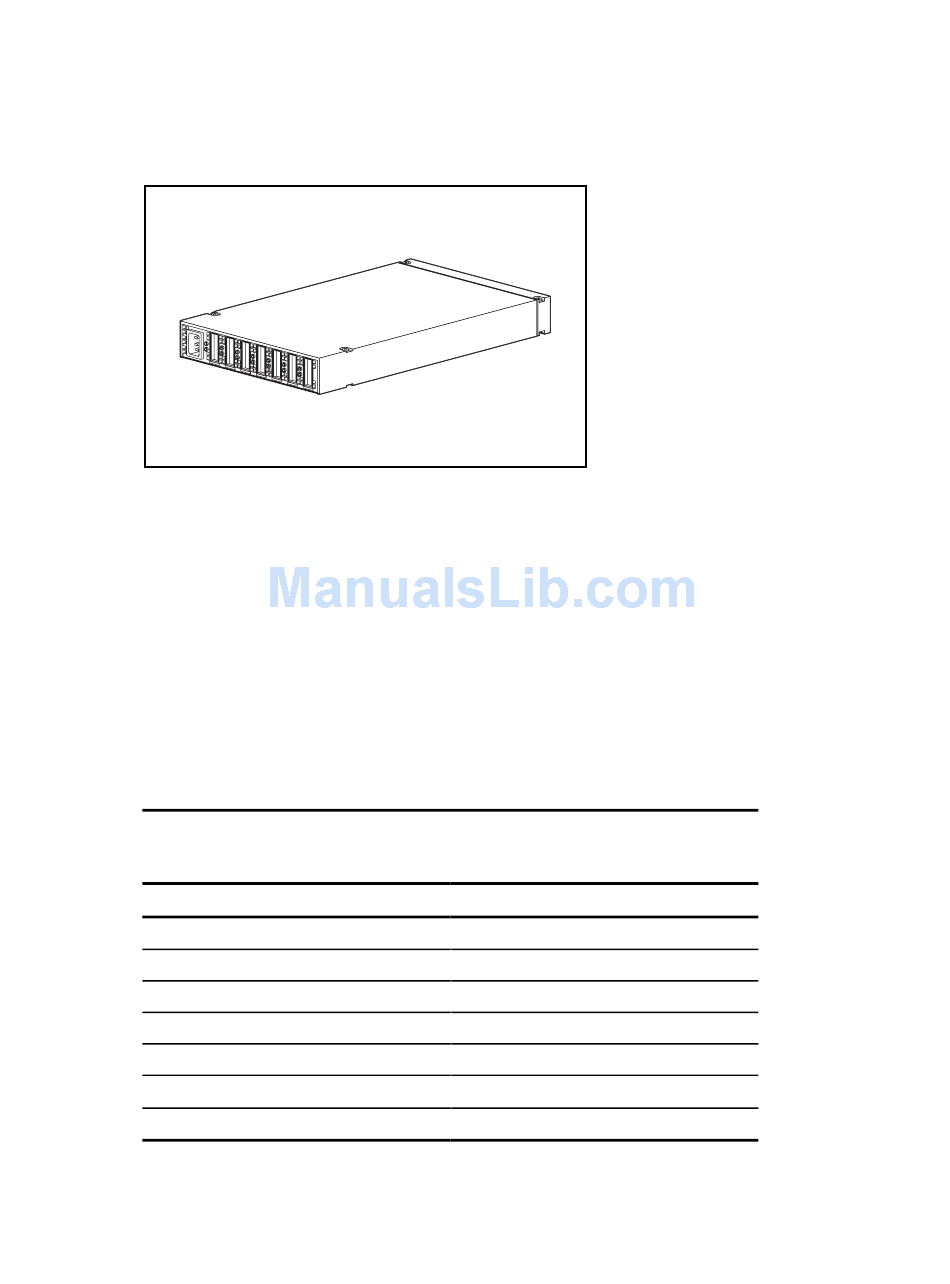

Figure 1-7. Compaq Fibre Channel Storage Hub 7
Features
The Compaq Storage Hub 7 includes the following features:
Versatility—seven user-configurable media interface ports
I
Scalability—add or modify the loop as requirements dictate
I
Expandability—supports up to six storage devices per Fibre Channel Host Bus Adapter
I
Spatial economy—takes up only 1U of rack space
I
Compatibility—adheres to the ANSI FC-AL standard
I
Convenience—standalone or rack-mountable models
I
Function
Data rate
Data format
Number of ports
AC input power range
Power consumption
Temperature
Humidity
Table 1-3
Functional Specifications
Value
1062.5 Mbaud
8 bit/10 bit
7
100 to 250 VAC, 50 to 60 Hz
<25 Watts (all ports empty)
Operating: 0 °C to 50 °C
Operating: 5% to 95%, non-condensing
