Summary of Contents for Philips 439P9H1/11

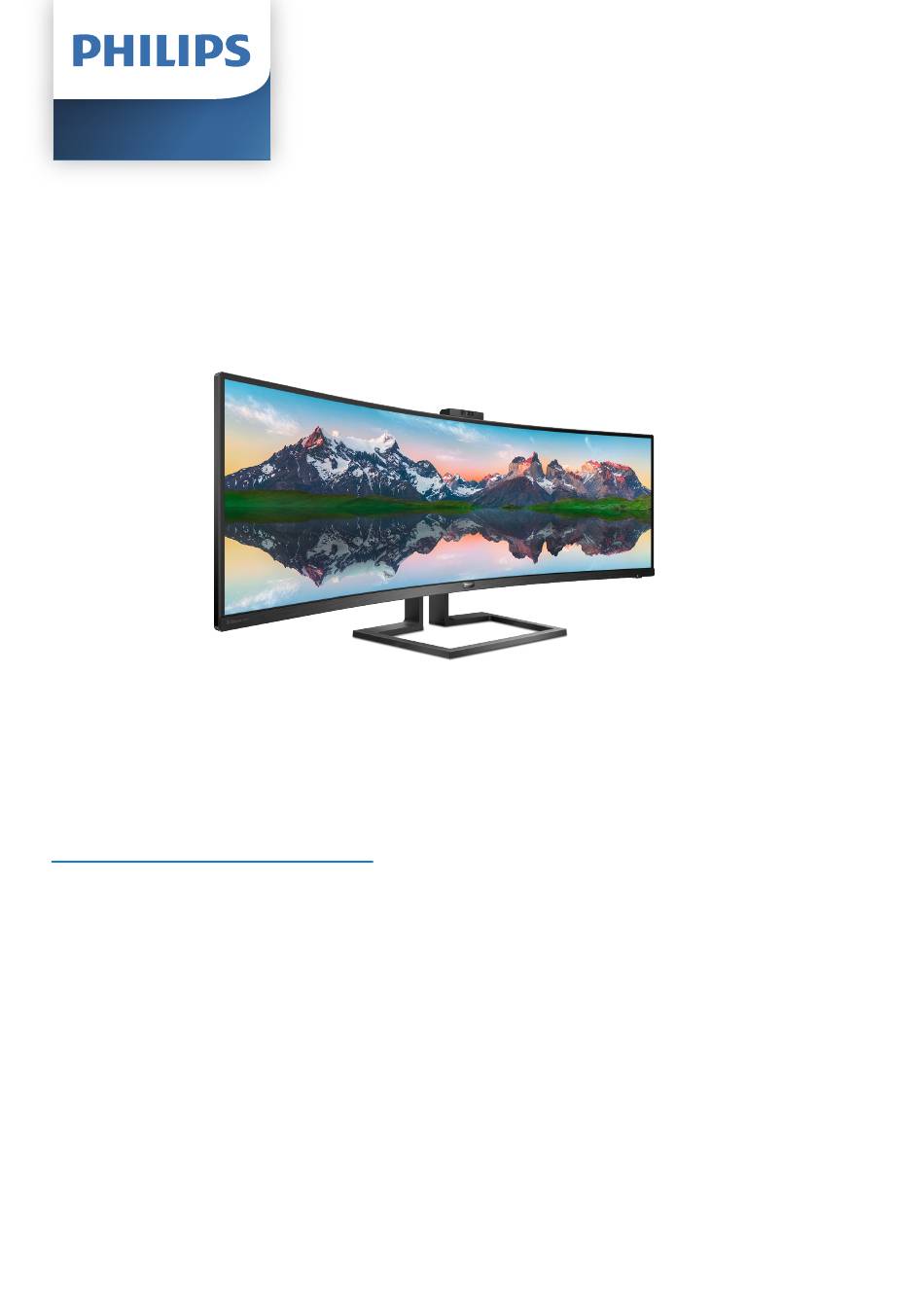

- Page 1 Brilliance 439P9 241B8 www.philips.com/welcome EN User manual Customer care and warranty 28 Troubleshooting & FAQs...
-
Page 2: Table Of Contents
5.1 Resolution & Preset Modes ...26 6. Power Management ....27 7. Customer care and warranty . 28 7.1 Philips’ Flat Panel Displays Pixel Defect Policy ......28 7.2 Customer Care & Warranty ..31 8. Troubleshooting & FAQs ..32 8.1 Troubleshooting ...... -
Page 3: Important
This electronic user’s guide is intended • If turning off the monitor by for anyone who uses the Philips display. detaching the power cable or DC Take time to read this user’s manual power cord, wait for 6 seconds before you use your display. - Page 4 1. Important every two hours. Try to keep your • Unplug the display if you are not eyes from eye strain while using the going to use it for an extensive screen for a constant period of time period of time. by : • Unplug the display if you need to • Looking at something varying...
-
Page 5: Notational Descriptions
1. Important Uninterrupted display of still or 1.2 Notational Descriptions static images over an extended The following subsections describe period may cause “burn in”, also notational conventions used in this known as “after-imaging” or “ghost document. imaging”, on your screen. • “Burn-in”, “after-imaging”, or Notes, Cautions and Warnings “ghost imaging”... -
Page 6: Disposal Of Product And Packing Material
From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or on entails participation in national take-... -
Page 7: Setting Up The Display
Package contents installation. Brilliance 439P9 241B8 Quick 439P Start Register your product and get support at www.philips.com/welcome Display User’s Manual 使用产品前请阅读使用说明 Contents: User’s Manual 保留备用 Drivers www.philips.com/welcome *Remote 2. Hold the neck with both hands. - Page 8 2. Setting up the monitor Kensington anti-theft lock Earphone jack USB fast charger USB downstream RJ-45 input Power Switch USB Type C input/Upstream Warning DisplayPort input This product is curve design, when HDMI input attach / detach the base, place the AC power input protective material under the monitor and do not press down the monitor to...
- Page 9 Sleep and Power Off modes. You can find the “LAN Drivers” from CD disk if bundled or go to Philips website Connected USB devices will not work in support page to download the driver. this state.
- Page 10 2. Setting up the monitor Note If you Turn OFF your monitor via the power switch at any given time, all the USB ports will power OFF. Warning USB 2.4Ghz wireless devices, such as, wireless mouse, keyboard, and headphones, maybe have interference by the high-speed signal of USB 3.2 devices, which may result in a decreased efficiency of the radio transmission.
-
Page 11: Operating The Display
2. Setting up the monitor Webcam 2.2 Operating the display Description of the control buttons Microphone Switch display’s power ON IR of Face identification OFF. Access the OSD menu. 2.0 Megapixel Webcam Confirm the OSD adjustment. Webcam activity light Adjust the OSD menu. User preference key. - Page 12 2. Setting up the monitor Customize your own “USER” key The remote control is powered by two 1.5V AAA batteries. (439P9H1) This hot key allows you to setup your To install or replace batteries: favorite function key. 1. Press and then slide the cover to 1.
- Page 13 2. Setting up the monitor Description of the remote control Press to switch power on buttons (439P9H1) and off. Change the signal input source. Access the OSD menu. Adjust the OSD menu/ Turn up the values. Return to previous OSD level.
- Page 14 On-Screen Display. You can use On-Screen Display (OSD) is a feature in this as a reference when you want to all Philips LCD displays. It allows an end work your way around the different user to adjust screen performance or adjustments later on.
- Page 15 2. Setting up the monitor Resolution notification Physical Function This display is designed for optimal Tilt performance at its native resolution, 3840 x 1200 @ 60 Hz. When the display 10˚ is powered on at a different resolution, an alert is displayed on screen: Use -5˚...
-
Page 16: Built-In Windows Hello™ Pop-Up Webcam
C2 port of this monitor. password. How to enable Windows Hello™ pop-up webcam Philips monitor with Windows Hello webcam can be enabled by simply connecting your USB cable from your USB C PC to the “ USB-C1” port or “ USB- C2”... - Page 17 2. Setting up the monitor c. You need to set up a PIN code Auto before you're allowed to use USB C1 USB Standby Mode USB C2 Windows Hello. Once you've added this, the option for Hello ...
-
Page 18: Multiclient Integrated Kvm
PCs. How to enable MultiClient Integrated With the built-in MultiClient Integrated KVM, Philips monitor allows to quickly switch your peripherals back and forth between in two devices through the Note OSD menu setting. The MultiClient integrated KVM is set to Please follow the steps for the settings. -
Page 19: Multiview
(main) signal source. Why do I need it? With the ultra high resolution Philips When the sub source is MultiView display, you can experience not detected: (main) a world of connectivity in a comfortable way in the office or at home. -
Page 20: Remove The Base Assembly For Vesa Mounting
2. Setting up the monitor 2.6 Remove the Base Assembly for VESA Mounting Before you start disassembling the display base, please follow the instructions below to avoid any possible damage or injury. 1. Place the display face down on a smooth surface. -
Page 21: Image Optimization
Game, Economy, LowBlue Mode, brightness, contrast, color and sharpness SmartUniformity and Off. in real time. Whether you're working with text applications, displaying images SmartImage or watching a video, Philips SmartImage EasyRead delivers great optimized display performance. Office Why do I need it? Photo... -
Page 22: Smartcontrast
Developed for wellbeing, and extend the lifetime of your display. Philips LowBlue Mode setting uses a smart software technology to reduce How does it work? harmful shortwave blue light. -
Page 23: Adaptive Sync
3. Image Optimization • AMD Radeon R7 260X 3.3 Adaptive Sync • AMD Radeon R7 260 • Processor A-Series Desktop and Mobility APUs Adaptive Sync • AMD A10-7890K • AMD A10-7870K PC gaming has long been an imperfect • AMD A10-7850K experience because GPUs and monitors •... -
Page 24: Hdr
4. HDR 4. HDR HDR Settings in Windows10 system. Steps 1. Right click on the desk top, enter to Display settings. STEP 5 2. Select the display/monitor. 3. Adjust resolution to 3840 x 1200 4. Turn the “HDR and WCG” to on mode. -
Page 25: Technical Specifications
5. Technical Specifications 5. Technical Specifications Picture/Display Display Panel Type Backlight W-LED system Panel Size 43.4" W (110.2 cm) Aspect Ratio 32:10 Pixel Pitch 0.274 x 0.274 mm Optimum Resolution 3840 x 1200@60 Hz Viewing Angle 178° (H) / 178° (V) @ C/R > 10 (Typ.) Picture Enhancement SmartImage Display Colors... - Page 26 5. Technical Specifications Convenience USER convenience Built-in speaker 5 W x 2 2.0 megapixel camere with microphone and LED Built-in Webcam indictor (for Windows 10 Hello) MultiView PBP mode, 2×devices English, German, Spanish, Greek, French, Italian, Hungarian, Dutch, Portuguese, Brasil Portuguese, Polish, OSD Languages Russian, Swedish, Finnish, Turkish, Czech, Ukranian, Simplified Chinese, Traditional Chinese, Japanese,...
- Page 27 Finish Texture Note 1. EPEAT rating is valid only where Philips registers the product. Please visit https:// epeat.sourcemap.com/ for registration status in your country. 2. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet.
-
Page 28: Resolution & Preset Modes
5. Technical Specifications quality, please follow this resolution 5.1 Resolution & Preset Modes recommendation. Maximum Resolution Recommended resolution 3840 x 1200 @ 100 Hz (digital input) HDMI 2.0/DP/USB C: 3840 x 1200 @ 60Hz Recommended Resolution If your display is not on the native 3840 x 1200 @ 60 Hz (digital input) resolution when connecting to USB C or DP port, please adjust... -
Page 29: Power Management
6. Power Management 6. Power Management If you have VESA DPM compliance display card or software installed in your PC, the display can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the display will 'wake up' automatically. -
Page 30: Customer Care And Warranty
Other combinations Pixel Defect Policy of lit and dark sub pixels appear as single pixels of other colors. Philips strives to deliver the highest quality products. We use some of the Types of Pixel Defects industry's most advanced manufacturing... - Page 31 Black Dot Defects the warranty period, a TFT Display panel Black dot defects appear as pixels or in a Philips flat panel display must have sub pixels that are always dark or 'off'. pixel or sub pixel defects exceeding the That is, a dark dot is a sub-pixel that tolerances listed in the following tables.
- Page 32 7. Customer care and warranty BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 5 or fewer 2 adjacent dark subpixels 5 or fewer 3 adjacent dark subpixels...
-
Page 33: Customer Care & Warranty
Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below. -
Page 34: Troubleshooting & Faqs
• First, ensure that the power button power source immediately for safety on the front of the display is in the OFF position, then press it to the • Contact with Philips customer ON position. service representative immediately. No Picture (Power LED is White) Imaging Problems • Make sure the computer is turned... -
Page 35: General Faqs
Service contact information listed in may cause "burn in", also known as Important information manual and "after-imaging " or "ghost imaging", contact Philips customer service on your screen. "Burn-in", "after- representative. imaging", or "ghost imaging" is a well-known phenomenon in LCD * Functionality different according to panel technology. - Page 36 • Shut down your computer, scratches? disconnect your old display and Ans.: In general it is recommended reconnect your Philips LCD display. that the panel surface is not • Turn on your display and then turn subjected to excessive shocks on your PC.
- Page 37 Can I connect my LCD display to repaired. The damage mentioned above any PC, workstation or Mac? is not covered under your warranty. Ans.: Yes. All Philips LCD displays are Q12: Why is my Display not showing fully compatible with standard sharp text, and is displaying PCs, Macs and workstations.
-
Page 38: Multiview Faqs
Please note that the next time Ans.: Important Information manual you turn on your Display, the can be download on the Philips Display will by default select the website support page. audio source you chose last time. In case you want to change it... - Page 39 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are regis- tered trademarks of Koninklijke Philips N.V. and are used under license.
