Rolls RPB486 Specifications

RPB486
SERIAL NUMBER
120 VAC
486-
50/60 Hz 15 VA
MADE IN U.S.A
MODEL RPB486
WARNING: To reduce the risk of electric shock or fire, do not expose
this device to rain or moisture. CAUTION: To reduce the risk of electric
shock do not remove lid. No user serviceable parts inside.
Refer servicing to qualified service personnel.
ROLLS ROLLS
Phantom Phantom
Power Supply Power Supply
XLR INPUTS
1/4" OUTPUTS
TRUE 48 VOLT PHANTOM POWER
ROLLS
5968 SOUTH 350 WEST S.L.C.,UT 84107
PHONE: 801-263-9053
FAX: 801-236-9068
DATA SHEET FOR RPB486
OUTPUT INPUT OUTPUT
CHANNEL SIX CHANNEL FIVE

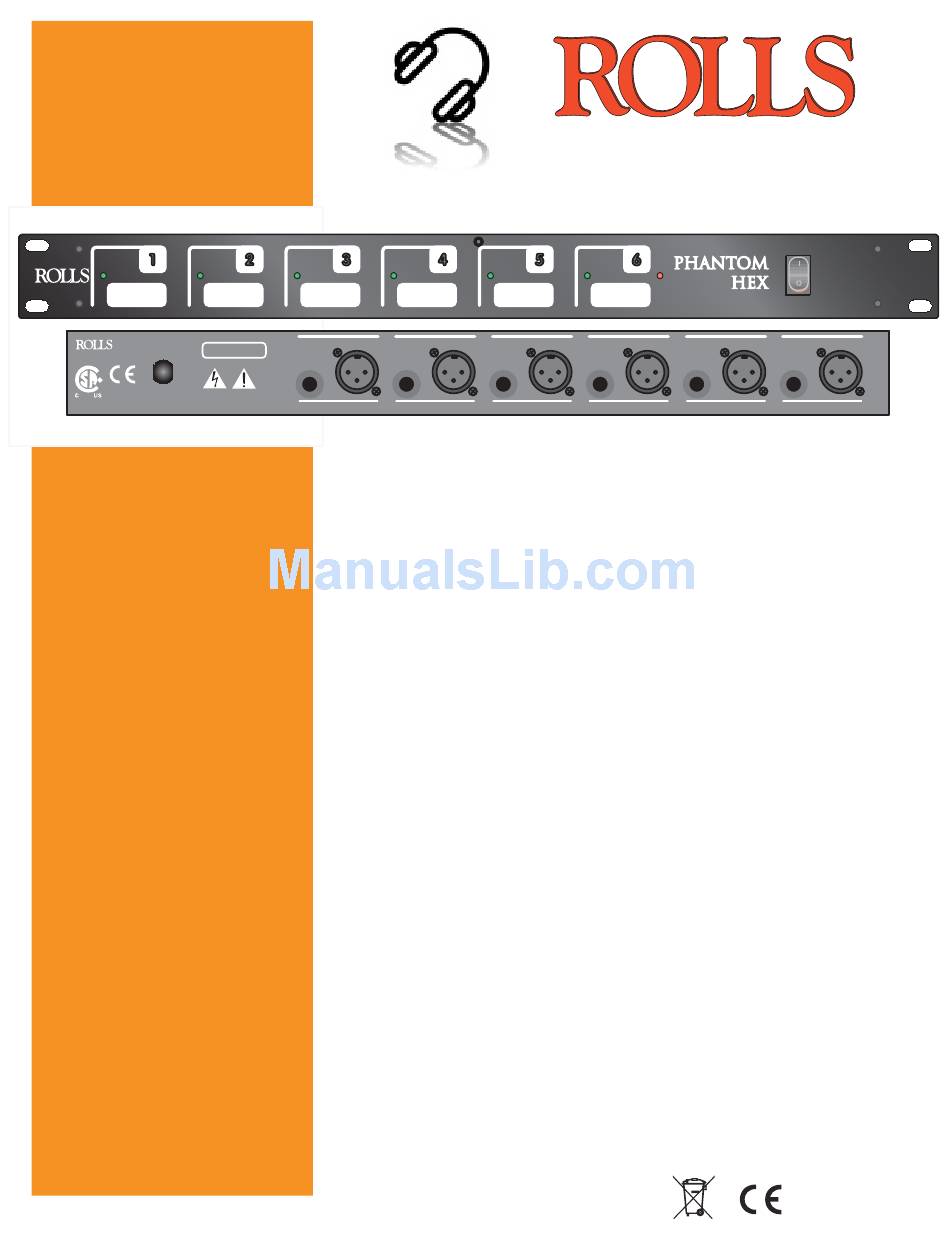

RPB623 PHANTOM HEX
Six Channel Phantom Power Supply
The RPB623 is an ultra clean six channel 48 volt phantom power
supply. The unit powers up to six condenser microphones for use in
digital multitrack recording situations, or contractor applications
where several mics must be powered from a single source.
SPECIFICATIONS
Connectors: 6 ea. XLR female jacks (pin 2 hot)
6 ea. 1/4. TRS jacks (tip positive)
Phantom Power Voltage: 48 Volts
Max Phantom Power Current: 14 mA each channel
Power Supply: Linear 120VAC 50/60Hz
Size (W x H x D): 19" x 1.75" x 2.5" (48 x 4.5 x 12.7)
Weight: 4 lbs.
FEATURES:
. 6 XLR Mic inputs and 1/4" TRS balanced outputs
. 48 Volts of regulated phantom power for each input
. Front panel LED indication for channel "in-use"
. Clean, quite internal power supply
. Pull-down resistors and isolation capacitors on all outputs to
minimize the possibilit y of equipment damage downline
MADE IN USA
www.rolls.com
