PB224
DUAL PHANTOM
POWER SUPPLY
pwr
BATTERIES 9V x 2
power
on
MADE IN USA
+
INPUT
OUTPUT
-
SPECIFICATIONS
Phantom Voltage:
Jacks:
Controls:
Indicators:
Batteries:
Current Drain:
Size:
Weight:
Dual Phantom
Dual Phantom
Power Supply
Power Supply
INPUT
OUTPUT
48V
2 ea: Male and Female XLR jacks,
2.1 x 5 mm DC input jack
1: Power Switch
1: Power LED
2ea. 9 Volt (alkaline recommended)
20 mA
5.5" x 2.7" x 1.75"
1 lb (.45 Kg)
Owners Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rolls DUAL PHANTOM PB224
Summary of Contents for Rolls DUAL PHANTOM PB224
-

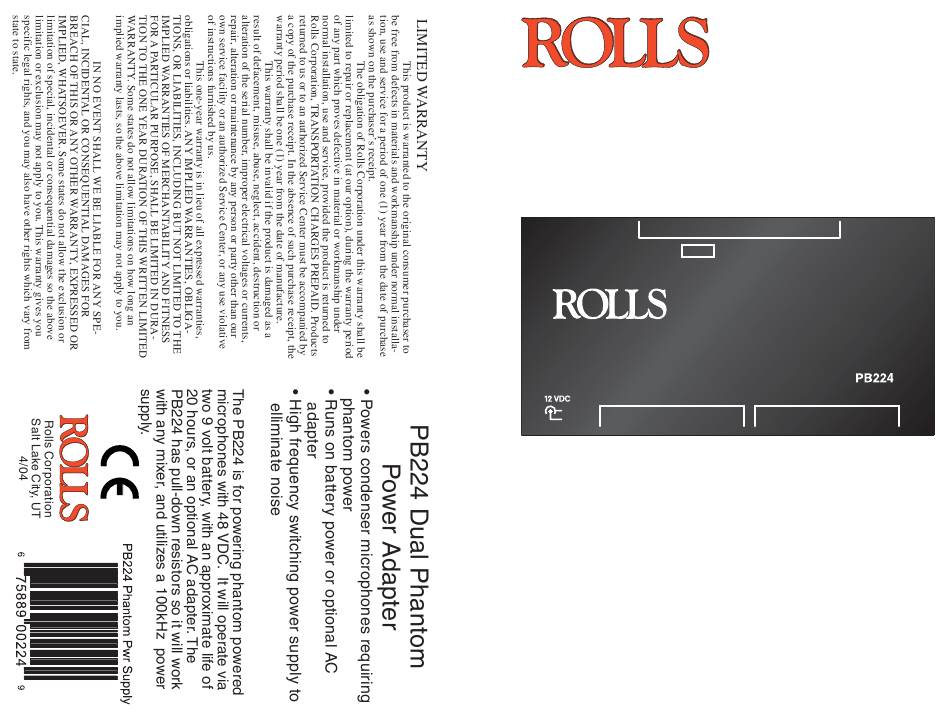

Page 1: Owners Manual
PB224 DUAL PHANTOM POWER SUPPLY BATTERIES 9V x 2 power Dual Phantom Dual Phantom MADE IN USA Power Supply Power Supply INPUT OUTPUT INPUT OUTPUT SPECIFICATIONS Phantom Voltage: Jacks: 2 ea: Male and Female XLR jacks, 2.1 x 5 mm DC input jack Controls: 1: Power Switch Indicators:... - Page 2 To optional was the old tube mic standard. The PB224 may be powered via two 9 volt AC Adapter batteries, or an optional AC adapter. (Rolls Model PS27) To mixer, snake, OPERATION mic preamp etc. Connect the condenser microphone(s) to the input connector and connect the outputs to a mixer or other audio input device.
