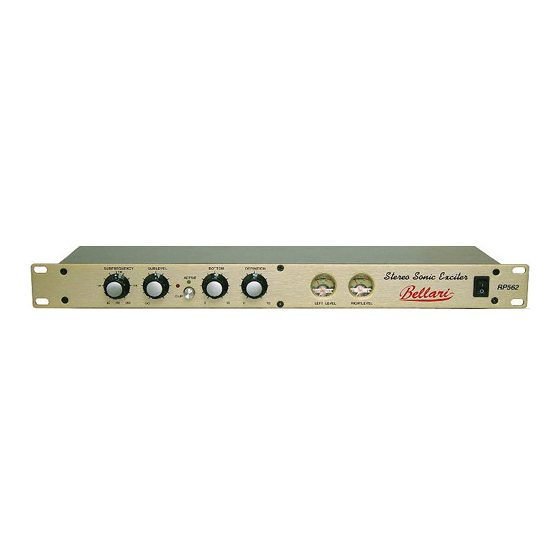

Rolls RP562 Owner's Manual

Stereo tube sonic exciter
Hide thumbs Also See for RP562:
1
2
3
4

Advertisement

Quick Links

Download this manual
Enlarged version
SPECIFICATIONS
Frequency Response
20 Hz - 40 kHz
Input Impedance
10K balanced
10K unbalanced
THD + Noise
<0.7% typical
Noise Floor
-78 dB
Subwoofer Slope:
-18 dB/Octave
Max. Subwoofer Gain: +20 dB
Indicators
Active LED
2: Analog VU Meters (Ref. +4 dBm)
Sub Clip LED
Input/Output jacks
XLR balanced
1/4" unbalanced
Dimensions
1.75" X 6" X 19"
(89mm X 162mm X 482mm)
Weight
6 lbs. (2.72 Kg)
Power
120VAC (230VAC) 15VA
A division of
Rolls Corporation
Salt Lake City, UT
12/97

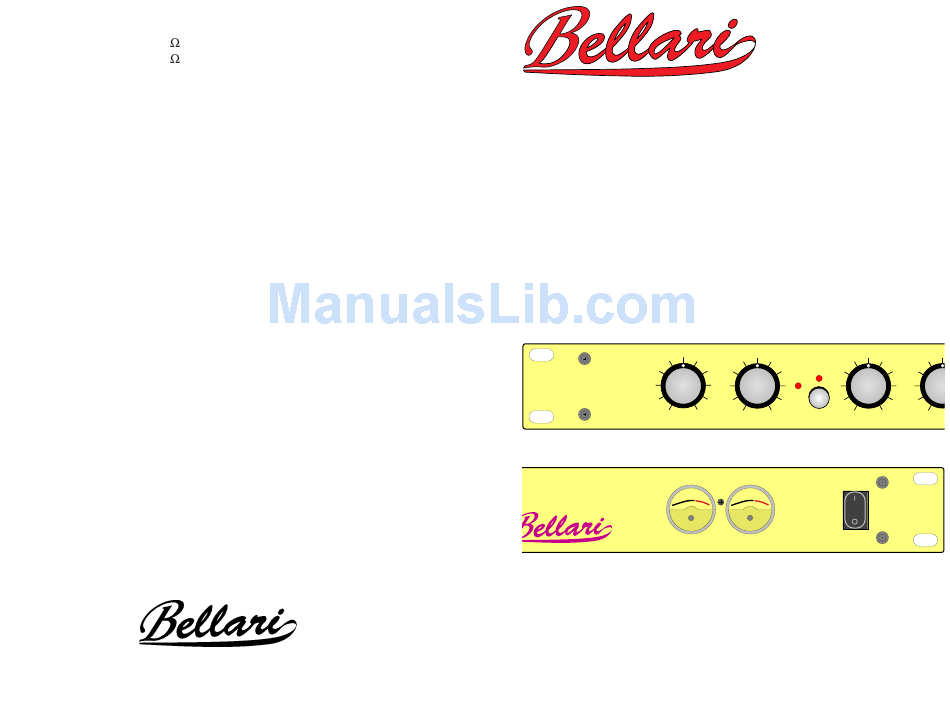

RP562
Stereo Tube
Sonic Exciter
SUB FREQUENCY
100
50
35
Hz
Tube Sonic Exciter
3 1
10 6
20
VU
LEFT LEVEL
OWNERS MANUAL
SUB LEVEL
BOTTOM
ACTIVE
175
SUB
CLIP
200
-O O
+20
0
3 1
0 2
10 6
0 2
4
4
20
VU
RP562
RIGHT LEVEL
DEFINI
10
0

Advertisement

loading
Need help?

Need help?

Do you have a question about the RP562 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rolls RP562

Summary of Contents for Rolls RP562

  • Page 1 Noise Floor -78 dB Subwoofer Slope: -18 dB/Octave Max. Subwoofer Gain: +20 dB Indicators Active LED 2: Analog VU Meters (Ref. +4 dBm) RP562 Sub Clip LED Input/Output jacks XLR balanced 1/4" unbalanced Dimensions 1.75" X 6" X 19" Stereo Tube...
  • Page 2 NO USER SERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL RISQUE DE CHOC - NE PAS ENLEVER of the unique tube design, the RP562 also has the benefit of natural tube compression. This makes a more realistic and pleasing sound. Also because of the all class “A”...
  • Page 3 Woofer Outputs. This frequency is adjustable between 35Hz and 200 The diagram shown below is a stereo connection for your RP562. We recommend you put the RP562 last in the signal chain. If you have an SUB LEVEL: Adjusts the output level of the Sub Woofer Outputs. The EQ or other processor after your mixer's main outputs, insert the RP562 level is adjustable between - infinity (off) and a gain of + 20 dB.
  • Page 4 Stereo Connection any part which proves defective in material or workmanship under normal Stereo w/sub-woof connection installation, use and service, provided the product is returned to Rolls Corpora- Warranty tion, TRANSPORTATION CHARGES PREPAID. Products returned to us or to Specifications...
