The plug connected to the Tip is the "Send" which will connect to the Input of the signal
processing device, and the Ring is the "Return" which connects directly to the detector
(compression control) circuit.
Side Chain circuits are often used in "ducking". Ducking is momentarily lowering one sig-
nal under another signal. For example, you may wish to automatically lower a music signal
under a paging microphone signal, then have the music return to normal level after the
page is over. This would be accomplished by running the music into the compressor, and
having the page signal connect into the Side Chain return. The page signal must also be
connected to the main mixer or amplifi er as well. When the paging signal begins, its signal
goes to the main mixer and the Side Chain circuitry. The music is compressed or "ducked"
under the page.

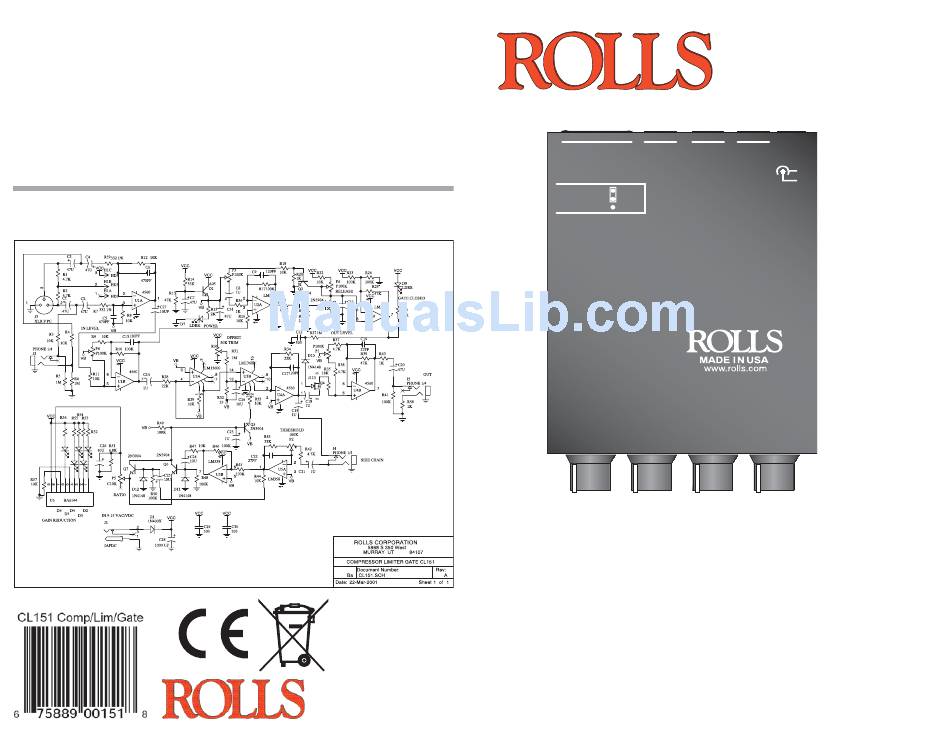

SCHEMATIC
SPECIFICATIONS
Max Input:
Max Out:
Noise Floor:
Phantom Power:
Frequency Response:
Gate Release Time:
Gate Attack Time:
Comp Attack Time:
Comp Release Time:
Power:
Weight:
ROLLS CORPORATION
Size:
SALT LAKE CITY, UTAH
03/10

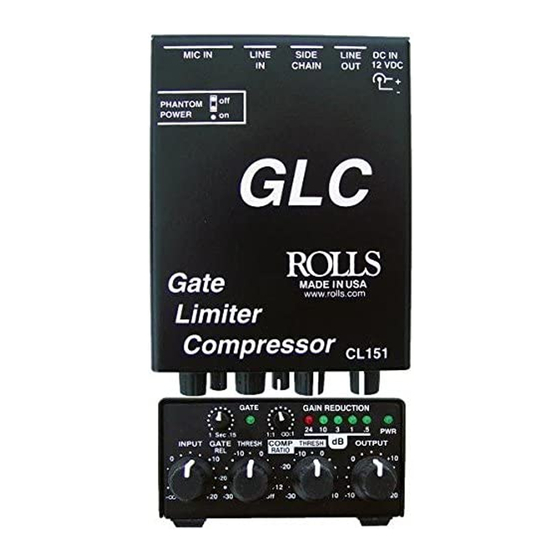

CL151 GLC
Compressor/Limiter/
Gate
MIC IN LINE SIDE
IN CHAIN
off
PHANTOM
POWER on
GLC
Gate
Limiter
Compressor
XLR: -10 dBm Balanced
1/4": +14 dBV Balanced
+14 dBV Balanced
-72 dBV, Out Level Min, Gate Off
12 VDC
10 Hz - 30 kHz, +0 -3 dB
150 mS - 1 S
5 mS
5 mS
800 mS
12 VDC 150 mA adapter (center negative)
1 lbs. (.45 Kg)
4.15" x 3.375" x 1.55"
DC IN
LINE
12 VDC
OUT
+
-
CL151
