COMPRESSOR TRAINING
Small compressors

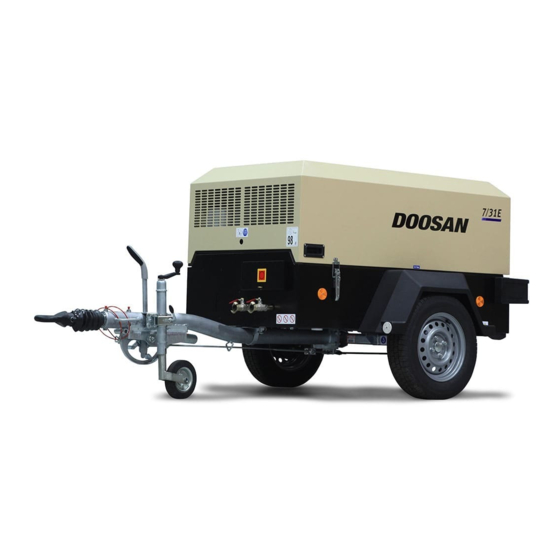

SMALL COMPRESSORS RANGE
• 7/20
- P65
- 7 bar (100 PSI), 1.9 m3/min (70 cfm)
• 7/26E
- P90
- 7 bar (100 PSI), 2.5 m3/min (90 cfm)
• 7/31E
- P110 - 7 bar (100 PSI), 3.0 m3/min (105 cfm)
• 7/41
- P135 -7 bar (100 PSI), 4.0 m3/min (140 cfm)
• 7/51
- XP185 -7 bar (100 PSI), 5.0 m3/min (175 cfm)
• 7/71
- P260
-7 bar (100 PSI), 7.1 m3/min (250 cfm)
• 12/56
-12 bar (170 PSI), 5.6 m3/min (200 cfm)
SUMMARY
• The compressor can be divided in the following subsystems
–
ENGINE & AIREND
–
LUBRICATION & COOLING SYSTEM
–
AIR FLOW REGULATION SYSTEM
–
SEPARATION SYSTEM
–
BLOWDOWN SYSTEM
–
INSTRUMENT/CONTROL PANEL
–
ELECTRICAL WIRING
•
Troubleshooting
Company Confidential
Company Confidential
10/12/2010
1
