8981FS SDI Frame Synchronizer/Delay
Key Features
10-bit signal processing assures
broadcast quality
Proc. amp controls
Various freeze options for production
applications
Audio delay signal to drive audio delay
cards
Functions as frame synchronizer or fixed
delay
Up to a full frame of delay
Cleanly handles input signal hot switches
Passes all horizontal ancillary data (AES)
Passes or blanks vertical interval data
user adjustable
EHD detection and insertion
Complete remote control with GPI or
Ethernet interface
Specifications
Supported Frame Types
GeckoFlex with 8900V-R GeckoFlex Video rear module,
Gecko video frames: 8900TX-V, 8900TF-V, 8900TFN-V
Power Rating
4.5 Watts – single slot
Input
Signal type: SMPTE 259M-C or EBU 3267
(270 Mb/s)
Connector: 75Ω BNC, terminating
Automatic cable eq.: <300 meters
Return loss: >15 dB, 5 to 270 MHz
Reference Input
Signal type: Analog color black 525 or 625 lines per
SMPTE 170M or CCIR 624
Connector: Differential loop-through BNC
Signal level: Sync level 140 mV to 560 mVp-p
Return loss: >40 dB to 5.5 MHz
Output
Signal type: SMPTE 259M-C or EBU 3267
Number of outputs: Four
Connector: 75Ω BNC
Return loss: >15 dB, 5 to 270 MHz
The 8981FS offers unparalleled functionality.
It combines the best features of a frame
synchronizer, frame delay, and digital
processing amplifier in one module. The
8981FS is designed to handle various
environments and applications including
asynchronous input video signal timing, manual
color correction, and production freeze frame
applications. It operates as a companion to
the popular 8916 AES autotracking delay
DA, and 8920ADT or 8921ADT for audio
synchronization applications. Several control
modes are also offered, including local board
controls, GPI for freeze control, and Ethernet
control over a LAN/WAN using a variety of user
friendly interfaces.

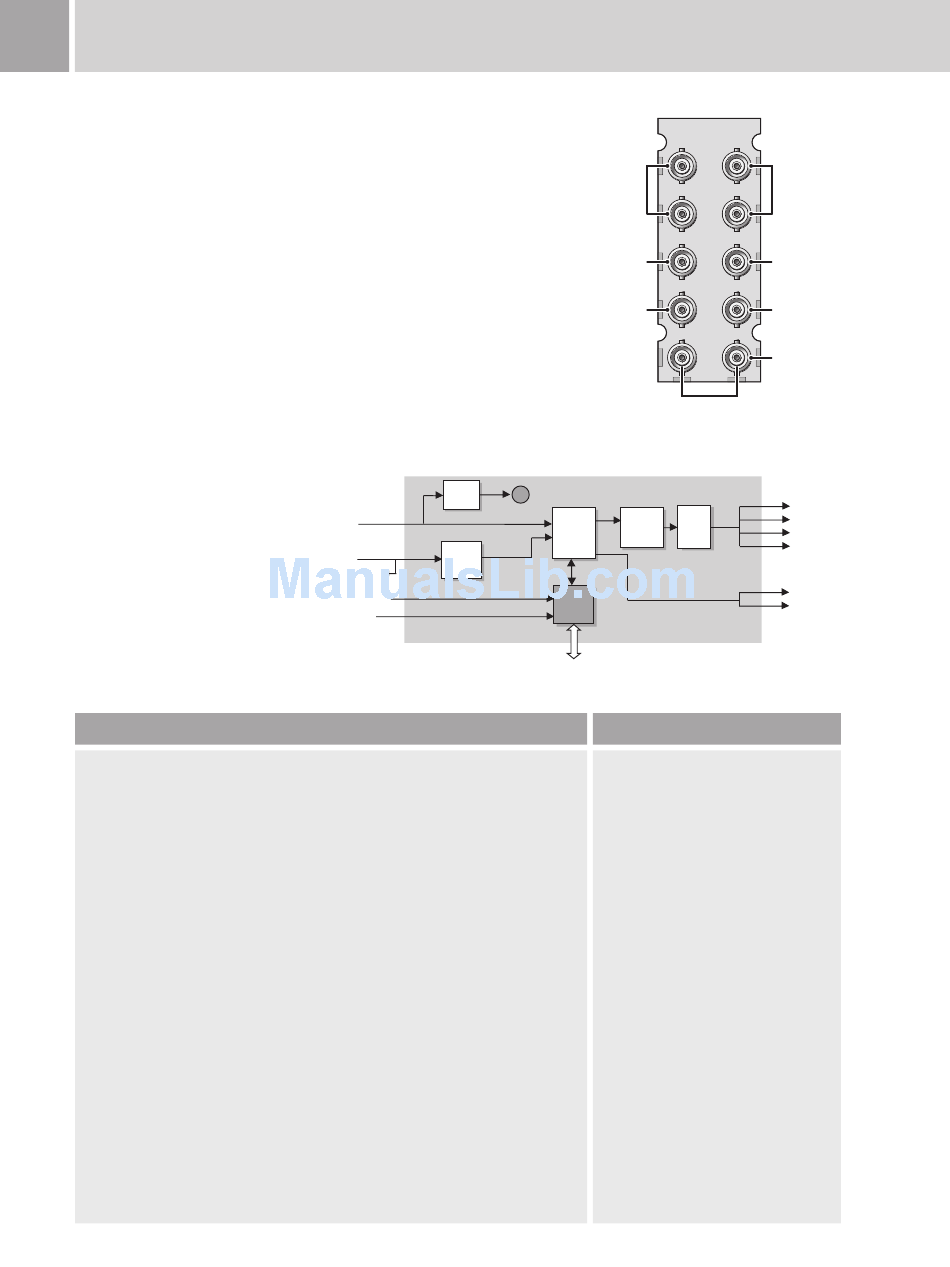

EDH
Detection
SDI with Embedded Audio
Reference
Timing
Loopthrough
Generator
Local
Controls
GPI
Audio Delay Data
Number of outputs: Two
Connector: BNC
Type: RS-232 serial data
Performance
Signal path: 10-bit
Error detection and insertion: EDH
Switching line processing: Optional black insertion
Min. electrical length (delay mode): Two lines
Output timing range: One frame
Output timing resolution: 37 ns
Operating temperature: 0° to 45°C
Operating humidity range: 0% to 90% non-
condensing
Indicators and Controls
Indicators: Signal present, line rate, reference present,
freeze mode, delay mode, fault, communication active,
configuration
Controls: Output timing, proc. amp controls, freeze,
blanking, sync/delay mode
GPI control: Freeze
Remote: All indicators and controls via Ethernet
8900V-R
J1
SDI
Output
J3
Delay
J5
Control
Output
J7
SDI
Input
J9
Loopthru
LED
Output
EDH
Signal
Framestore
Insertion
Processor
Control
Micro-
processor
Ethernet
