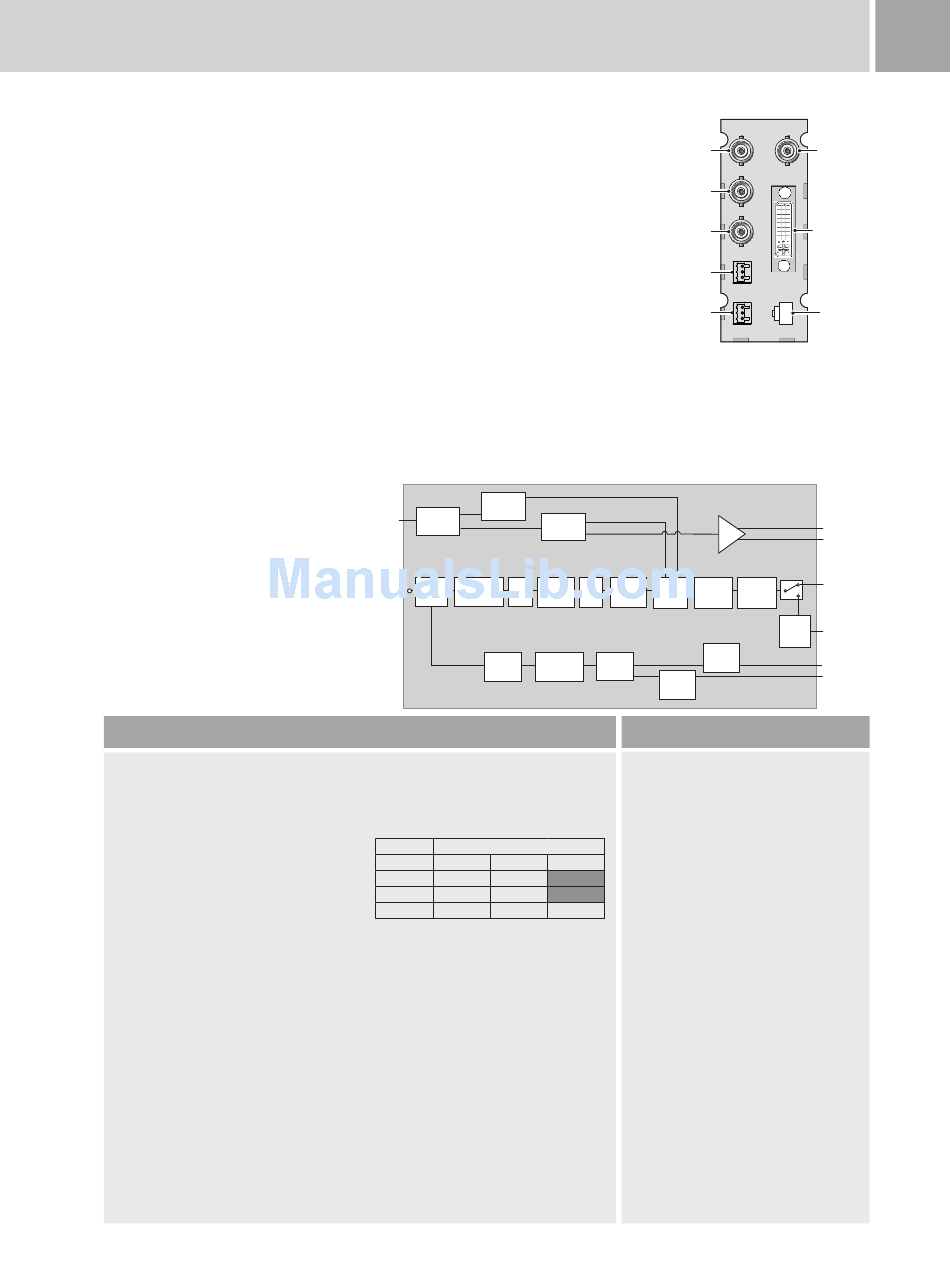

8949SVM-UMD/-LOC SD/HD-SDI Single Viewing Module
Key Features
•
Monitor SD or HD-SDI feeds on flat-panel
monitors
•
Drive video or low-cost computer monitor
panels
•
Support for digital DVI or analog VGA-style
monitors
•
UMD and tally control from an external
controller via Ethernet (8949SVM-UMD
only)
•
Analog audio monitoring outputs
•
Audio delay compensation for both module
and monitor processing
•
Auto-sensing of monitor resolution and
scan rate via EDID
•
Temporal conversion to display video or
non-video (PC) monitors
•
Built-in display compensation for color
and black stretch
•
Patterns, including PLUGE, for monitor setup
•
Frame lock modes to ensure no skipped or
repeated frames
Applications
•
Monitoring video in the production
environment on compact, high-quality
flat-panel displays
•
Using low-cost computer displays for
viewing HD signals
•
Creating a complete monitor station with
high-resolution viewing and stereo audio
Specifications
Specifications
Supported Frame Types
The module is compatible with GeckoFlex frames with
fans (8900FF and 8900FFN)
Power Rating and Size
8.5 Watts – single slot
Inputs
SD/HD-SDI: Auto-sensing
Note: selection of anamorphic SD initiated by the user
Equalization:
• Up to 125m (HD-SDI on Belden 1694A cable)
• Up to 330m (SD-SDI on Belden 1694A cable)
Ethernet (8949SVM-UMD only): For UMD and tally
control
Outputs
DVI-I:
• With digital and analog (VGA-type) signals
• Maximum cable length 15m (dependent on cable
and display resolution)
SD/HD-SDI: 2 x equalized copy of input feed (not
re-clocked)
Analog: 2 x channels balanced (maximum level
+24 dBu)
Supported Output Resolutions
5:4: 1280 x 1024
4:3: 1024 x 768, 1400 x 1050, 1600 x 1200
16:10: 1280 x 800, 1440 x 900, 1680 x 1050, 1920
x 1200
The 8949SVM module displays SD-SDI
and HD-SDI signals on flat-panel monitors,
including video or computer TFT displays. The
output is via a DVI-I type connection and can
be used to feed digital DVI monitors or analog
VGA-style units. The 8949SVM supports a
wide range of monitor resolutions and refresh
rates. The input is auto-sensing for HD and SD.
The output is auto-sensing for resolution and
scan rate. These features can provide for zero-
configuration installation.
The 8949SVM-UMD includes on-screen UMD
text and tally indicators. The UMD and tally
facilities can be driven from a central controller
via the module's own Ethernet connection.
The module includes balanced analog audio
monitoring outputs. Display of 50 Hz video
formats on 60 Hz monitors is supported. The
picture can be tuned using the built-in black
stretch, color space conversion, and RGB proc
amp controls. These adjustments are usually
UMD
Text
Ethernet
Ethernet
Interface
(-UMD only)
Video Proc.
De-
Black
SD/HD-SDI
Amp
embedder
Stretch
(Chroma/Luma)
Conversion
Input
Group
Selector
16:9: 1366 x 768, 1920 X 1080
Other: 1280 x 768
Frame Rate Conversion
The table below shows approximate available output
frame rates:
Output
Input
50 Hz
59.94 Hz
23.98 Hz
50 Hz
Yes
59.94 Hz
Yes
Output modes only available where supported by
the monitor. Shaded modes in the table above apply
temporal conversion. Computer scan rates are often
close but not exactly equal to 60 Hz. The 8949SVM
adjusts the blanking and vertical blanking to provide
60 Hz scan rate.
On-Screen Display
Tallies: Two (red and green)
UMD Text: 16 characters (standard ASCII characters
plus an extended character set)
Important Note: Configuration of the module
parameters is done with local on-board paddle switch
controls. The configuration for the UMD and tally
connections is not through the frame's 8900NET (Net
Card). For the 8949SVM-UMD, the UMD and tally
are connected through the module's own Ethernet
connection and managed by an external system
supporting TSL protocol.
SD/HD-SDI
In
SD/HD-SDI Out
Equalized input
SD/HD-SDI Out
Equalized input
Analog Audio
Out
Analog Audio
Out
missing from the monitor itself. This module
supports 16:9, 16:10, 4:3, and 5:4 monitor
screen aspects when fed with 16:9, 4:3, or
16:9 anamorphic (SD) pictures. The input is
auto-sensing for non-anamorphic HD and SD
units. SD inputs with anamorphic aspect ratios
can be displayed but the aspect ratio must be
set manually.
Tally
Color
On-screen
Component
Temporal
Scaler
Space
Display
to RGB
Conversion
Keyer
Conversion
Audio A-D
Audio Delay
Converter
Pair
(left)
(Fixed and
Selector
Adjustable)
Audio A-D
Converter
(right)
Ordering Information
Ordering Information
This module can be mounted in a GeckoFlex
frame with fans but not in other 8900 series
frames, including Gecko-A or Gecko-V frames.
8949SVM-UMD
SD/HD single viewing module with UMD and tally
management, front and rear module set
60 Hz
8949SVM-LOC
Yes
SD/HD single viewing module, front and rear module
Yes
set
For detailed specifications, installation, and setup
instructions see:
www.grassvalley.com/docs/modular
69
8900AVM-R
J1
J2
Not Used
J3
J4
J5
DVI-I
Connector
J7
J9
Ethernet
Equalized
SD/HD-SDI
Outputs
RGB Display
DVI-D Output
Correction
(on DVI-I
Proc Amp
connector)
Video
D-A
DVI-A Output
Converter
(on DVI-I
connector)
Analog Audio
Outputs
