T-Line

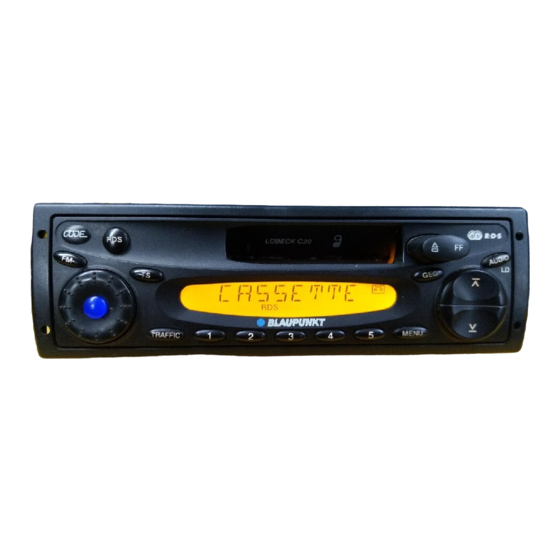

Lübeck C30
7 640 105 510
Luxembourg C30
7 640 110 510
Augsburg C30
7 640 115 510
Dublin C30
7 640 120 510
Boston C30
7 640 125 510
Kiel CD30
7 640 155 310
Lausanne CD30
7 640 160 310
Alicante CD30
7 640 165 310
Minnesota DJ30
7 640 315 019/...510
Ontario DJ30
7 640 320 019/...510
CLASS 1
LASER PRODUCT
VORSICHT!
D
Die CD-Geräte beinhalten eine Laserkomponente!
Im Servicefall bitte nachfolgende Hinweise
beachten:
-
Das Gerät arbeitet mit einem unsichtbaren Laserstrahl.
-
Bei geöffnetem Gerät tritt im Bereich des Plattenfaches
Laserstrahlung aus.
-
Nicht in den Strahl blicken.
-
Unbeteiligte Personen vom Arbeitsplatz fernhalten.
-
Der Betrachtungsabstand darf 13 cm nicht unterschreiten.
-
Kann dies nicht eingehalten werden, muß eine geeignete
Laserschutzbrille getragen werden.
AUTORADIO
D/EU
Serviceanleitung • Service Manual
7 640 405 019/...510
7 640 410 019/...510
UNSICHTBARE LASERSTRAHLUNG
NICHT DEM STRAHL AUSSETZEN
CAUTION!
GB
The CD units are equipped with a laser component!
For servicing make sure to observe the following
instructions:
-
The unit operates with invisible laser beams.
-
When the cover is removed, invisible laser beams are
emitted near the disc compartment.
-
Avoid direct eye contact with these beams.
-
Keep unauthorised persons away from the workbench.
-
The viewing distance should not be less than 13 cm.
-
If this distance cannot be kept, use suitable laser safety
goggles.
Funline2
Düsseldorf C50
7 640 205 510
Bologna C50
7 640 210 510
Sylt CD50
7 640 255 310
Modena CD50
7 640 260 310
7 640 260 312
7 640 260 315
7 640 260 318
Colorado DJ50
Carolina DJ50
Dakota DJ50
7 640 460 310
8 622 402 383 BN 03/00 AG
LASER CLASS 3B
Advertisement
Table of Contents
Related Manuals for Blaupunkt Lausanne CD30
Summarization of Contents
Supplementary Documentation
Circuit Diagram
Provides the electrical schematic for the device.
Spare Part Lists
Lists of replacement parts for various car radio models.
Measurement Points and Alignment Elements
FM/HF Module Measurement Points
Identifies specific test points on the FM/HF module for alignment.
Main Board Measurement Points
Identifies specific test points on the main circuit board for alignment.
Repair Notes
Parameter Programming
Steps for re-programming device parameters post-repair or alignment.
FM Alignment
Programming of FM IF Offset
Sets the intermediate frequency offset for optimal FM reception.
Oscillator Alignment
Adjusts the FM oscillator for precise frequency tuning.
Basic IF Alignment and Front/Intermediate Circuit Adjustment
Adjusts the IF section and front/intermediate RF circuits for FM.
FM Phase-Shifter Alignment
Calibrates the FM phase-shifter for proper signal processing.
IF Limiting Adjustment
Sets the Intermediate Frequency (IF) limiting level for FM.
AM Alignment
MW Oscillator
Adjusts the Medium Wave (MW) oscillator frequency.
MW Input Circuits
Tunes the input circuitry for Medium Wave (MW) reception.
LW Oscillator
Adjusts the Long Wave (LW) oscillator frequency.
LW Input Circuit
Tunes the input circuitry for Long Wave (LW) reception.
IF Alignment
Adjusts the Intermediate Frequency (IF) section for AM.
Programming of Product Parameters
Lo Programming for FM
Configures low-power reception parameters for FM.
Dx Programming for FM
Configures DX (distant reception) parameters for FM.
Programming of Stereo Threshold
Sets the threshold for automatic stereo/mono switching.
Programming of RDS - Basic Sensitivity
Sets the basic signal sensitivity for Radio Data System.
Lo Programming for MW
Configures low-power reception parameters for MW.
Dx Programming for MW
Configures DX reception parameters for MW.
Lo Programming for LW
Configures low-power reception parameters for LW.
Dx Programming for LW
Configures DX reception parameters for LW.
