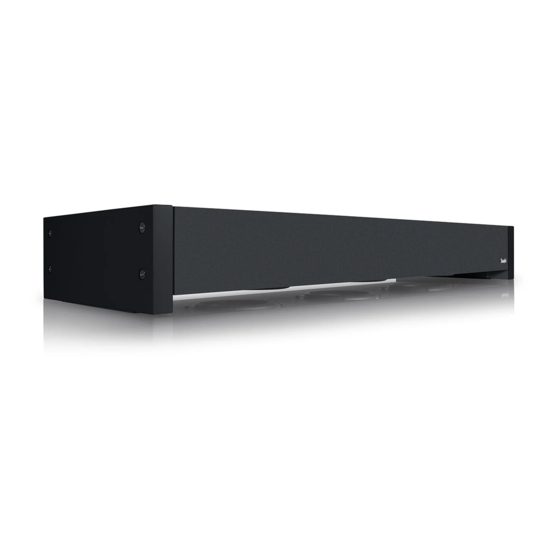

- Page 1 Technical description and instruction manual T4000 Flat Subwoofer Active subwoofer and wireless module...
-
Page 2: Table Of Contents
Disposal ..............15 Setup/wall mounting ..........8 Important information in accordance with Setup location ............8 the Electrical and Electronic Equipment Act Location tips ..........8 (Germany: ElektroG) ..........15 Suitable locations: .........8 Unsuitable locations ........8 Preparation ............8 Wall mounting ............8 • T4000 Flat Subwoofer... -
Page 3: General Notes And Information
Complaints caused by use not in accordance with the instruc- tions. In case of complaint we will need the following infor- The T4000 flat subwoofer is intended for private mation to process your enquiry: use. 1. Invoice number To improve readability, the T4000 flat subwoofer will Can be found on the sales slip (enclosed with the be referred to as the “subwoofer”... -
Page 4: For Your Safety
• Only use the accessory products specified by the manufacturer. • Only use the device in indoor areas. • Do not operate the device in wet rooms and pro- • T4000 Flat Subwoofer... -
Page 5: Explanation Of Symbols
• On parquet, varnished wood and similar surfaces, you should stick felt gliders to the rubber feet of the subwoofer or put blankets or small carpets under them. This will prevent discolouration of the floor over the long term. • T4000 Flat Subwoofer... -
Page 6: Overview
• Carefully open the box and lift out the subwoofer and remove all packaging parts. Product contents ① 1 x T4000 Flat Subwoofer ②1 x mains cable ① ③ 1 x cable tie ④ 2 x isolation pads Instruction manual ②... -
Page 7: Control Elements And Connections
– Mains connection jack PAIRING wireless connection – Mains fuse Power LED for the wireless Switch for shifting the STATUS connection PHASE phase (shifts the subwoofer Bay for the wireless plug-in phase by 180°) module ⑤ • T4000 Flat Subwoofer... -
Page 8: Setup/Wall Mounting
Setup/wall mounting Setup location Wall mounting The construction of the T4000 Flat Subwoofer offers You will need the following material to mount the a wide range of setup possibilities. subwoofer on a solid stone wall: • 4 x dowels (ø 8 mm) Location tips •... - Page 9 7. Screw the subwoofer securely onto the wall so that the screws are located in the small slot of the keyhole openings of the angle brackets 17 and the subwoofer is securely mounted on the wall. • T4000 Flat Subwoofer...
-
Page 10: Connection
WIRELESS SUB IN AUTO LEVEL INPUT PHASE 1. Switch your T4000 Flat Subwoofer off and pull the WIRELESS MODULE mains plug. 2. Insert the wireless plug-in module ⑤ in bay 15. The module's plug connector only fits the bay in one direction. -
Page 11: Use And Settings
2 “SUB LEVEL” until the subwoofer can be “easily heard”. However, it must not drone. 2. If any deep “hits” are too hard increase the setting of the controller 3 “HIGH-PASS”. 3. Repeat these steps with different CDs and DVDs. • T4000 Flat Subwoofer... -
Page 12: Care And Cleaning
In case of stubborn marks, a mild soap solution may be used. • In no circumstances should caustic cleaning products, white spirit, thinners, petrol or similar be used for cleaning. • T4000 Flat Subwoofer... -
Page 13: Troubleshooting
The subwoofer hums. The subwoofer is connected to a Connect the amplifier and different power circuit from the T4000 Flat Subwoofer to the same power amplifier. circuit. The humming is caused by prob- Buy a mains filter and connect the amplifier lems with the power supply. -
Page 14: Technical Data
You can find further technical data on our website. Technical changes reserved! Declaration of Conformity Lautsprecher Teufel GmbH declares that this product complies with Directive 2014/53/EU. The full text of the EU Declaration of Conformity can be found at this web address: www.teufel.de/konformitaetserklaerungen... -
Page 15: Disposal
You can find the exact contact data and collection points on our website www.Teufel.de/entsorgung. It is also possible to return old electrical and electronic appliances free of charge at an official delivery point run by the public waste disposal authorities. - Page 16 Please contact our customer service department with any questions, sugge- stions, or complaints: Lautsprecher Teufel GmbH Phone.: 00800 200 300 40 (toll-free) No responsibility is assumed for the BIKINI Berlin Fax: +49 (0)30 - 300 930 930 correctness of this information.
