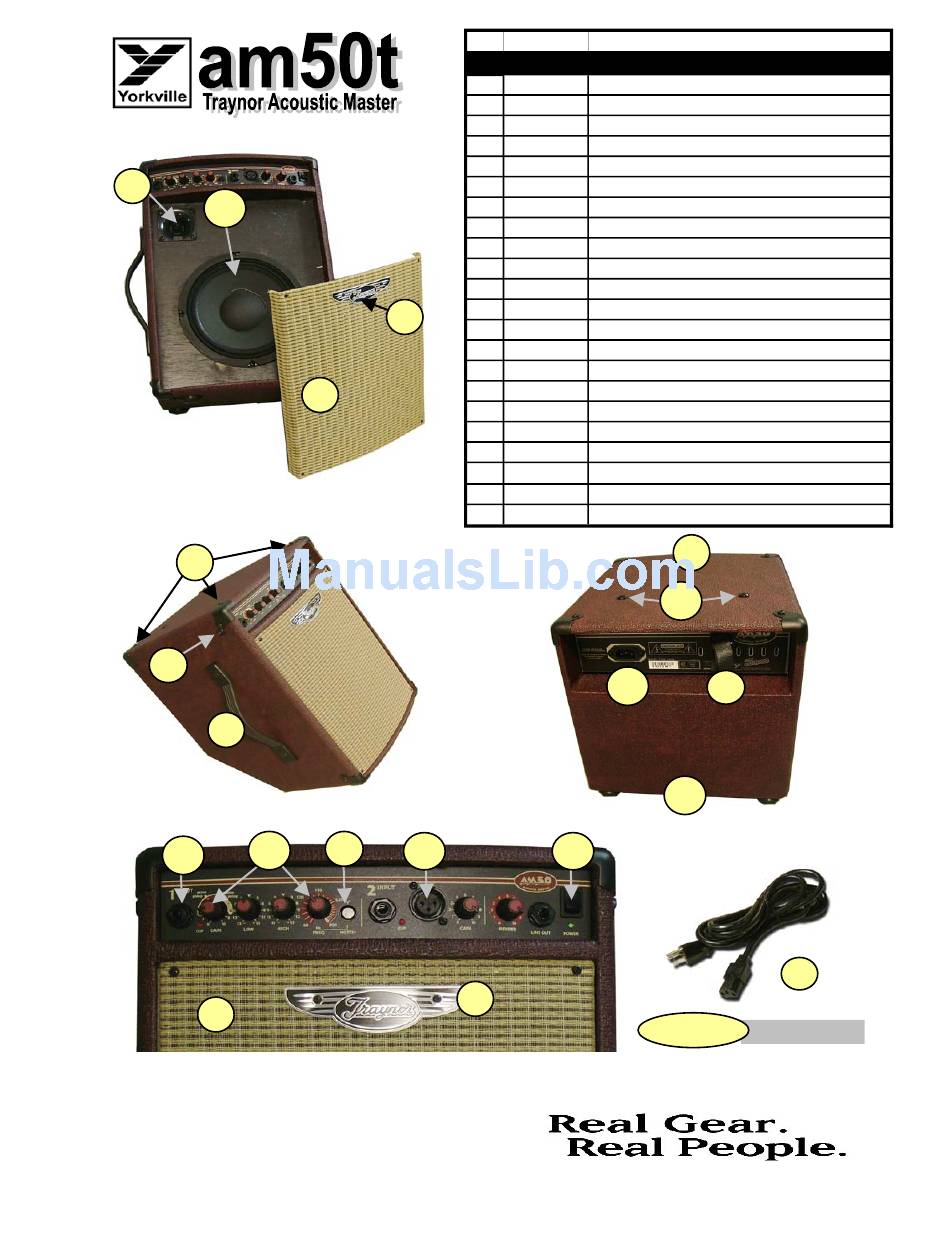

YORKVILLE AM50T Parts List

1
2
5
7
6
12
3
*NOTE: Replacement grills & HF Driver supports are 'Special-Order' and are only available while the model is in production.
** Internal Lightbulb not shown
Parts-Serv-AM50T-1v0.xls
4
3
13 14
15
ftp.yorkville.com
# Part# Description

Labeled Components

1 7417 8R 30W TWEETER PIEZO TLC 1
2 7331 8" 8R 50WPGM SPEAKER
3 Z276 AM50T GRILL
4 SMALL TRAYNOR LOGO EMBOSSED ALU
8267
5
8570 CORNER, 2 LEGS NOTCED LIP BLACK
6
8451 10" STRAP HANDLE,BLACK METAL EN
7 8473/8912
#10 BLACK CUPWASHER /10-32 X 1 FLAT PHIL MS JS500 BL
8 8770/8817
1/4-20 X 1 5/16 TRUSS PH MS JS500/#10 FLAT WASHER
9
3645 AC SOCKET RECEPTACLE WITH 0.250
10 8468 VELCRO STRAP 3/4"X22CM (VELSTRA
11
8547 PLASTIC FOOT BLACK, POLYETHYLEN
12
3450 1/4" JCK PCB MT HORZ, GOLD
13
8642 MAROON KNOB FOR AM WINE RED SER
14
3421/8649
DPDT PUSH SW PCMT MAKE B4 BREAK/BUTTON KNOB
3660 XLR FEML PCB MT HORZ
15
16 3698 SPST ROKR SW QUIK 180" AC PWR B
3428 8' 3/18 SJT AC LINE CORD REMOVA
17
18 3586 ACC# 1BB1C1C SHORT REVERB
19 3688 36" RCA DUAL RED-WHITE PREFAB C
2468 0.800 AMP SLO-BLO .25X1.25 (Internal Fuse)
20
21
22
9
16
4
5
8
10
11
17
18/19/20
not shown

Speaker Enclosure
