SERVICE MANUAL
Ver. 1.1 2018.05
SS-M20/M20D/M40D
• SS-M20 is the front speaker in MHC-M20.
• SS-M20D is the front speaker in MHC-M20D.
• SS-M40D is the front speaker in MHC-M40D.
• SS-M60D is the front speaker in MHC-M60D.
• SS-M80D is the front speaker in MHC-M80D.
• SS-WM80D is the subwoofer speaker in MHC-M80D.

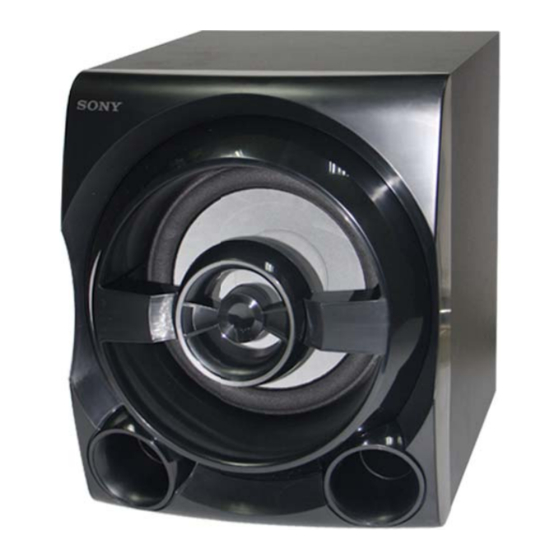

Speaker System
SS-WM80D
Speaker system:
1-way, Bass Refl ex
Speaker unit:
Subwoofer: 250mm, cone type
Rated impedance:
3 ohms
Dimensions (w/h/d) (Approx.):
340 mm × 405 mm × 315 mm
Mass (Approx.):
8.5 kg
SS-M80D
Speaker system:
3-way, Bass Refl ex
Speaker unit:
Mid: 80 mm, cone type
Tweeters: 50 mm, cone type
Woofers: 200 mm, cone type
Rated impedance:
Mid/Tweeter: 8 ohms
Woofers: 3 ohms
Dimensions (w/h/d) (Approx.):
285 mm × 405 mm × 350 mm
Mass (Approx.):
7.4 kg
SS-M60D
Speaker system:
3-way, Bass Refl ex
Speaker unit:
Mid: 80 mm, cone type
Tweeters: 50 mm, cone type
Woofers: 200 mm, cone type
9-890-694-02
2018E80-1
© 2018.05
SS-M20/M20D/M40D/M60D/M80D/
SS-M60D/M80D
Rated impedance:
Dimensions (w/h/d) (Approx.):
Mass (Approx.):
SS-M40D
Speaker system:
Speaker unit:
Rated impedance:
Dimensions (w/h/d) (Approx.):
Mass (Approx.):
Sony Corporation
Published by Sony EMCS (Malaysia) PG Tec
SS-WM80D
SPECIFICATIONS
Mid/Tweeter: 8 ohms
Woofers: 3 ohms
285 mm × 405 mm × 310 mm
7.2 kg
2-way, Bass Refl ex
Tweeters: 50 mm, cone type
Woofers: 200 mm, cone type
6 ohms
255 mm × 405 mm × 220 mm
5.1 kg
• JIG
When disassembling the set, use the following jig (for front panel
removal).
Part No.: J-2501-238-A JIG FOR SPEAKER REMOVAL
WM80D
US Model
Canadian Model
AEP Model
SS-M20D/M60D
UK Model
SS-M20D
Russian Model
SS-M20D/M40D/M60D
E Model
Australian Model
SS-M20D/M40D/M60D/M80D/
Brazilian Model
SS-M60D/M80D/WM80D
Malaysia Model
SS-M40D/M60D
SS-M20/M20D
Speaker system:
2-way, Bass Refl ex
Speaker unit:
Tweeters: 50 mm (2 in), cone type
Woofers: 200 mm (8 in), cone type
Rated impedance:
4 ohms
Dimensions (w/h/d) (Approx.):
255 mm × 405 mm × 220 mm
(10 1/8 in x 16 in x 8 3/4 in)
Mass (Approx.):
5.1 kg (11 lb 4 oz)
Design and specifi cations are subject to
change without notice.
SPEAKER SYSTEM
