SERVICE MANUAL
Ver 1.0 2004. 05

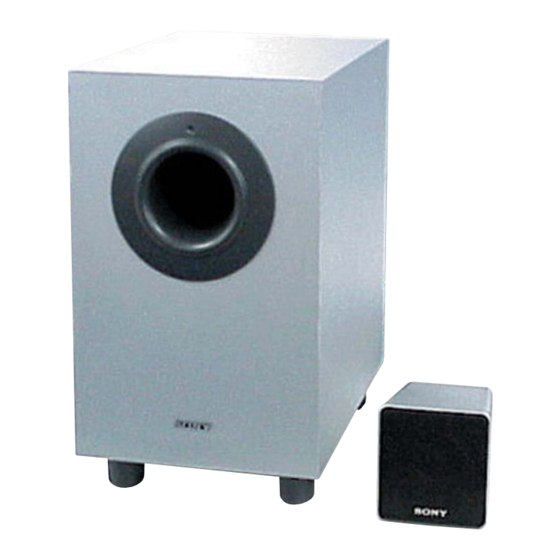

• SA-VE155 consists of the following models respectively.
SUBWOOFER
SA-WMS155
FRONT, CENTER AND
SS-MS155
SURROUND SPEAKER
SS-MS155
(front, center and surround speakers)
Speaker system
Full range, magnetically
shielded
Speaker units
7 cm, cone type
Enclosure type
Closed type
Rated impedance
8 ohms
Power handling capacity
Maximum input power: 100 W
Sensitivity level
83 dB (1 W, 1 m)
Frequency range
120 Hz - 20,000 Hz
Dimensions (w/h/d)
Approx. 91 × 96 × 102 mm,
including front grille
Mass
Approx. 650 g each
Sony Corporation
9-877-869-01
2004E04-1
Home Audio Company
© 2004. 05
Published by Sony Engineering Corporation
SA-VE155/WMS155/
SA-WMS155
SS-MS155
SPECIFICATIONS
SA-WMS155
(subwoofer)
Speaker system
Active subwoofer,
magnetically shielded
Speaker unit
Woofer: 16 cm, cone type
Enclosure type
Bass refl ex
Reproduction frequency range
32 Hz - 200 Hz
Continuous RMS power output
55 W (4 ohms, 100 Hz,
10 % THD)
Input
LINE IN (input pin jack)
General
Power requirements
220 - 240 V AC, 50/60 Hz
Power consumptions
45 W
Dimensions (w/h/d)
E model:
Approx. 210 × 355 × 335
mm
AEP, UK model:
Approx. 210 × 355 × 330
mm
Mass
Approx. 8 kg
MICRO SATELLITE SPEAKER SYSTEM
SS-MS155
AEP Model
UK Model
E Model
Supplied accessories
Foot pads (20)
Audio connecting cord (1)
Speaker connecting cords, 10 m (2)
Speaker connecting cords, 3.5 m (3)
Design and specifi cations are subject to change
without notice.
1
Advertisement
Table of Contents
Related Manuals for Sony SS-MS155
Summarization of Contents
Product Specifications
SS-MS155 Speaker Specifications
Details specifications for the SS-MS155 front, center, and surround speakers.
SA-WMS155 Subwoofer Specifications
Details specifications for the SA-WMS155 active subwoofer.
General System Specifications
Provides general specifications including power, consumption, dimensions, and mass.
Supplied Accessories List
Lists the accessories provided with the system.
Unleaded Solder Information
Unleaded Solder Characteristics
Explains characteristics of unleaded solder, including melting point, viscosity, and usage.
Safety Component Warning
Critical Component Identification
Identifies critical components for safety and advises replacement with specified parts.
General Operation and Setup
Control Location Overview
Identifies the location of all controls on the system.
System Setup and Listening Guide
Guides on connecting, positioning, and listening to the speaker system.
Troubleshooting Common Issues
Provides solutions for common problems encountered with the speaker system.
System Diagrams and Schematics
Diagram Notation and Board Locations
Explains notation used in diagrams and shows circuit board locations.
SA-WMS155 Printed Wiring Boards
Detailed printed wiring board layout for the SA-WMS155 subwoofer.
SA-WMS155 Schematic Diagram
Provides the full schematic diagram for the SA-WMS155 subwoofer.
IC601 TDA7296 Block Diagram
Block diagram illustrating the functions of the TDA7296 power amplifier IC.
Exploded Views and Parts Lists
SA-WMS155 Exploded View and Parts
Exploded view of the SA-WMS155 subwoofer with its associated parts list.
SS-MS155 Exploded View and Parts
Exploded view of the SS-MS155 satellite speaker with its associated parts list.
Electrical Parts List
Control and LED Board Components
Detailed list of electrical components for the Control and LED boards.
General Electronic Components
Lists various electronic components like capacitors, resistors, and ICs with part numbers.
Power Section Components
Lists electrical components specific to the power supply and switching circuits.
System Accessories and Manuals
Lists system accessories, manuals, and conversion adapters.
