Nibco LD-3000 Series Installation, Operation & Maintenance Instructions Manual

Installation and Maintenance Guidelines for

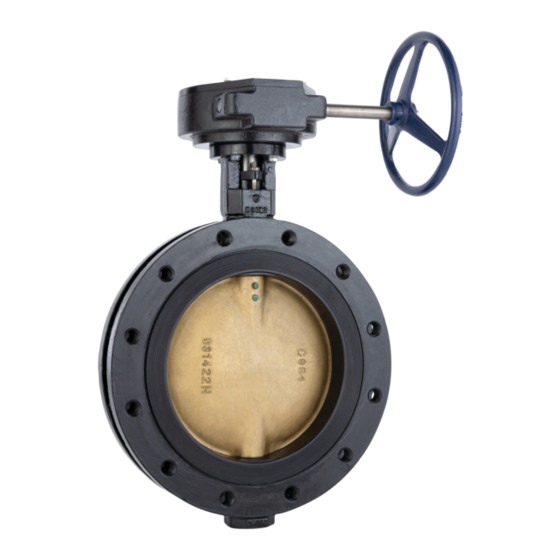

NIBCO ® Flanged Butterfly Valves with Rubber Seats
250 psi / 17.2 Bar CWP – LD-3000 Series
For any technical inquiries please call NIBCO Technical Services
CAUTION: Only qualified personnel should undertake the procedures outlined in this document. NIBCO
INC., its agents, representatives and employees assumes no liability for the use of these procedures. These
procedures are offered as suggestions only.
NIBCO Technical Services • Phone: 1.888.446.4226 • Fax: 1.888.336.4226
N I B C O I N C .
W O R L D H E A D Q U A R T E R S
INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS
USA ONLY
Figure Numbers
LD-7000 Series
LD-3000 Series
Pressure Rating
232 psi / 16 Bar CWP - LD-7000 Series
Valve Size Range
14" – 48" - LD-7000 Series
(DN 350 - DN 1200)
14" – 24" - LD-3000 Series
(DN 350 - DN 600)
1 5 1 6 M I D D L E B U R Y S T . P H O N E :
E L K H A R T , I N 4 6 5 1 6 - 4 7 4 0 F A X :
U S A W E B :
Review Date: NA
Original Date: 3/23/2022
5 7 4 . 2 9 5 . 3 0 0 0
5 7 4 . 2 9 5 . 3 3 0 7
w w w . n i b c o . c o m
1
