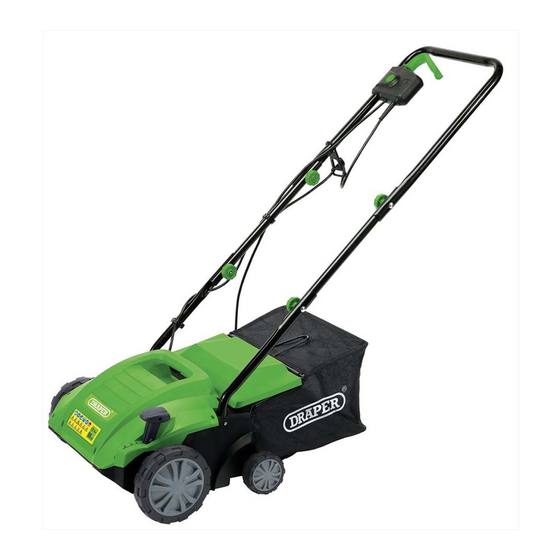

Draper 97921 User Manual

Law aerator/ scarifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

230V
LAWN
AERATOR/SCARIFIER
97921/98931, 97922
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
Stock No.97921/98931
Stock No.97922

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 97921 and is the answer not in the manual?

Questions and answers

Related Manuals for Draper 97921

Summary of Contents for Draper 97921

  • Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS TABLE OF CONTENTS TITLE PAGE INTRODUCTION: ......................2 REVISIONS: ......................... 2 UNDERSTANDING THIS MANUALS SAFETY CONTENT: ......... 2 COPYRIGHT © NOTICE: ..................... 2 CONTENTS TABLE OF CONTENTS ....................3 WARRANTY WARRANTY ......................... 4 INTRODUCTION SCOPE ......................... 5 SPECIFICATION ......................5 HANDLING AND STORAGE ..................

  • Page 4: Warranty 3.1 Warranty

    This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period.

  • Page 5: Introduction

    Any other application is considered misuse. SPECIFICATION Stock No..........97921/98931 ............97922 Part No........GLAS1500D / GLAS1500D/AUS ........GLAS1800D Rated voltage: ........230V~50Hz ............ 230V~50Hz Rated input: ..........1500W ..............1800W Speed (no load): ........3,000r/min ............3,500r/min Working width: ...........

  • Page 6: Health And Safety Information

    HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully.

  • Page 7: Additional Safety Instructions For Lawn Aerator/Scarifier

    ADDITIONAL SAFETY INSTRUCTIONS FOR LAWN AERATOR/ SCARIFIER Important: Draper Tools Limited recommends that this machine should not be modified or used for any application other than that for which it was designed. If you are unsure of its relative applications do not hesitate to contact us in writing and we will advise you.

  • Page 8: Residual Risk

    HEALTH AND SAFETY INFORMATION − Do not operate the machine on steep slopes. − Use extreme caution when reversing or pulling the machine towards you. − Stop the tines if the machine has to be tilted for transportation. Do not operate the tines when crossing surfaces other than grass, and when transporting the machine to and from the working area.
  • Page 9 HEALTH AND SAFETY INFORMATION IMPORTANT If using an extension lead, follow the instructions that came with your lead regarding maximum load while cable is wound. If in doubt, ensure that the entire cable is unwound. Using a coiled extension lead will generate heat which could melt the lead and cause a fire. –...

  • Page 10: Technical Description

    TECHNICAL DESCRIPTION IDENTIFICATION (13) (11) (14) (10) (13) (10) (12) Stock No.97921/98931 Stock No.97922 (15) (1) ON/OFF lever switch. (9) Collection bag. (2) Safety button. (10) Middle handle section. (3) Cable restraint. (11) Handle locks (97921/98931). (4) Lower handle sections. (12) Handle locks (97922).

  • Page 11: Unpacking And Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 12: Preparing The Lawn Aerator/Scarifier

    PREPARING THE LAWN AERATOR/SCARIFIER CABLE RESTRAINT (97921/98931) – FIG. 1 Before assembling the handle sections, slide the cable restraint (3) over the upper handle section (13). This is an important safety device, it prevents pressure being put onto the cable connections. Never operate the product without the cable restraint.
  • Page 13 PREPARING THE LAWN AERATOR/SCARIFIER − Loosen the screws in the back of the ON/OFF trigger switch control unit (1) and separate the 2 halves. − Locate both halves with the 2 screw holes over the upper handle assembly. − Re-fit the screws to fasten the unit in place on the handle section.

  • Page 14: Cable Restraint (97922)

    PREPARING THE LAWN AERATOR/SCARIFIER CABLE RESTRAINT (97922) – FIG. 9 Before assembling the handle sections, slide the cable restraint (3) over the upper handle section (13). This is an important safety device, it prevents pressure being put onto the cable connections. Never operate the product without the cable restraint HANDLE ASSEMBLY (97922)
  • Page 15 PREPARING THE LAWN AERATOR/SCARIFIER − Loosen the screws in both parts of the ON/OFF trigger switch control unit (1)/ (1.1) and separate the component parts. − Locate control unit with the holes the upper handle assembly (fig.14). (13) − Re-fit the screws to fasten the unit in place on the upper handle section.
  • Page 16 PREPARING THE LAWN AERATOR/SCARIFIER − Fasten loose cables to the assembled handle sections using the cable clips (19) (fig.19). FIG. FIG. (19) FIG. – 16 –...

  • Page 17: Assembling The Collection Bag

    PREPARING THE LAWN AERATOR/SCARIFIER ASSEMBLING THE COLLECTION BAG – FIGS.20 – 23 Warning! Always ensure that the motor is switched off with the plug removed from the wall. The grass collector can be used with both aerator and scarifier function. To assemble: −...

  • Page 18: Inserting The Aerator/Scarifier Cartridges (97921/98931)

    PREPARING THE LAWN AERATOR/SCARIFIER INSERTING THE AERATOR/ SCARIFIER CARTRIDGES (97921/98931) – FIGS.24 – 27 Warning! Always ensure that the motor is switched off with the plug removed from the wall. − Turn the machine upside down so the wheels are in the air. −...

  • Page 19: Inserting The Aerator/Scarifier Cartridges (97922)

    PREPARING THE LAWN AERATOR/SCARIFIER INSERTING THE AERATOR/ SCARIFIER CARTRIDGES (97922) – FIGS.28 – 31 Warning! Always ensure that the motor is switched off with the plug removed from the wall. − Turn the machine upside down so the wheels are in the air. −...

  • Page 20: Operation

    OPERATION WORKING HEIGHT – FIGS. 32 – 33 Stock No.97921/98931 Warning! Always ensure that the motor is switched off with the plug removed from the wall. The scarifying depth is set using the depth adjustment on the two front wheels. Gently pull the depth adjustment lever (6) and latch into the desired positions as shown below: 97921/98931...

  • Page 21: Maintenance And Troubleshooting

    10. MAINTENANCE AND TROUBLESHOOTING 10.1 MAINTENANCE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. Avoid blocking the air inlets and vacuum the ventilation slots regularly.

  • Page 22: Disposal

    11. DISPOSAL 11.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •...

  • Page 23: Explanation Of Symbols

    12. EXPLANATION OF SYMBOLS 12.1 EXPLANATION OF SYMBOLS Class II construction Read the instruction manual. (Double insulated). WEEE – Wear face mask and safety Waste Electrical & Electronic Equipment. glasses. Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish. Continuous A-Weighted Sound Wear ear defenders.
  • Page 24 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
