- Page 1 SWITCHING DC POWER SUPPLY USER MANUAL SINGLE OUTPUT SWITCH MODE DC POWER SUPPLY...
- Page 2 Please read this manual carefully before operating the power supply. 1. Introduction Volteq HY series single output switch mode DC power supplies are regulated variable DC power supplies designed to provide the most often required DC outputs in scientific and research institutions, schools and colleges, industrial R&D, as well as manufacturing and testing.
- Page 3 Temperature: -10°C to 40°C Relative humidity:<80% Table 2-1 Model Max. Voltage Max. Current Fuse Rating Reverse Output Relay Weight (lbs) Polarity Protection HY1520EP 10A/250V HY1530EP 10A/250V HY3010EP 10A/250V HY3020EP 10A/250V HY3030EP 15A/250V HY3050EP 15A/250V HY5020EP 15A/250V HY12010EP 120V 15A/250V HY30005EP...

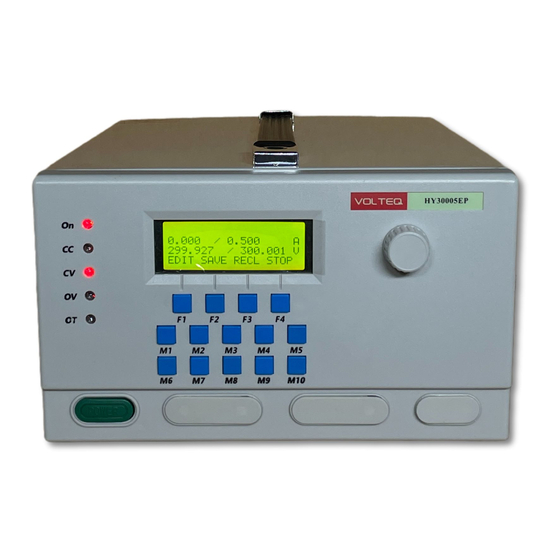

- Page 4 b. CC – lights up when the power supply is in constant current mode. c. CV – lights up when the power supply is in constant voltage mode. d. OV – lights up when the power supply is in over-voltage protected state. e.
- Page 5 (3) LCD display: this is a 4-line 20 characters display. The first line shows special messages; the second line shows the set value of current (in this case 0.500A) and the actual output value (in this case 0.084A); the third line shows the set value and actual output value of voltage;...
-
Page 6: Back Panel
Warning: the front terminals are rated for less than 10A only. Use only the rear output terminals if current draw is more than 10A, and tighten the connections to avoid damages caused by large contact resistance. Back Panel... - Page 7 (1) Positive output terminal. (2) Negative output terminal. (3) Voltage signal for remote sensing: if you need remote sensing, connect the sensing wire from the positive end of your load to this connector. (4) Ground terminal. (5) Connector for I/O pins: these pins are directly connected to some of the I/O pins of the Arduino Micro board. See 5-2 for more details.
- Page 8 if you are plugging into 110V AC outlet, the AC selector switch itself should show 110 in the middle. (12) Power socket and fuse holder: this is for AC input; for some of the models, we use cables directly to accommodate the higher amperage rating.
-
Page 9: Technical Parameters
Remote sense. • Active feedback control. • Amp-minute control. • Timer control. • Voltage ramp. • Automatic battery charger. • Digital voltmeter. • Transient measurements. • 2-4 Technical Parameters 1) Voltage stabilization: ≤0.2% 2) Current stabilization: ≤0.5% 3) Load stabilization: ≤0.3% 4) Ripple and noise: ≤1%( RMS) 5) Display accuracy: ±1%±1 digit 3. - Page 10 Warning: Do not connect any load to the power supply before it's turned on. Likewise, make sure to disconnect the load before shutting down the power supply. Damages to the power supply can happen if you do not follow this. Such damages are not under warranty. Warning: If you are running an inductive load like magnetic coils, DC motors, stepper motors, etc., make sure to connect your load with the output set to zero and change the voltage/current slowly, and NEVER turn the power supply on or off with a inductive load connected!
- Page 11 or via the front keypad of the power supply. Below we describe the method using the front keypad of the power supply: 1) With no load connected, turn the power supply on; the LED display will show the main menu with the four functions keys as “EDIT SAVE RECL...
-
Page 12: Constant Voltage / Constant Current Characteristics
5) The power supply reserved 6 memory positions for voltage, current and OV levels. Use “SAVE” key to store the current settings to one of the 6 memory locations, and you can use “RECL” key to recall one of the stored settings. 3-3 Constant Voltage / Constant Current Characteristics The power supply is a regulated constant current / constant voltage (CC CV) power supply, and is characterized by automatic crossover from constant current (CC) to constant voltage (CV), or vise versa, depending on the load... -
Page 13: Basic Operating Procedures
limit set for the power supply, and it will operate at constant current mode, with the maximum charging current equal to the set current limit. As charging goes on and the battery becomes more charged, the voltage will increase, and eventually reach 13.8V. - Page 14 the potential from the load, so that at no time there is a reverse current going into the power supply in the wrong direction. 1) Make sure that line voltage is correct for the input voltage of the power supply. 2) Plug power cord into the AC outlet.
-
Page 15: Fuse Replacement
Warning: The following instructions are to be performed by qualified personnel only. To avoid electrical shock, do not perform any servicing other than the contained in the operation instructions unless you are qualified to do so. For further questions, please contact factory support at support@volteq.com. 4-1 Fuse Replacement If the fuse is blown, the power supply will not turn on. -
Page 16: Line Voltage Conversion
Warning: For continued fire protection, replace fuse only with 250V fuse of the specified type and rating. A replacement fuse must be slow blowing type. 4.2 Line Voltage Conversion The power supply will work with line voltage of 110AC or 220V AC. Change from one line voltage to another is done by changing the selection switch in the back. -
Page 17: Reverse Voltage Protection
To reset the power supply that's in the OV protected state, follow the procedures below: 1) Disconnect the load. 2) Set OV level to be higher than the voltage limit, typically by more than 0.5V. 3) Press on the button labeled as “OV Reset” in the back. The OV light should be off now. 4-4 Recovery from Over-temperature Protection If the internal temperature is too high, the power supply is disabled due to over-heating. -
Page 18: Software Capabilities
Arduino is a very popular hardware platform for embedded intelligent devices. The hardware platform is very stable and versatile, and there are a lot of programs available for download. The Volteq EP models come with built-in Arduino Micro board to control and read the output. It is not our intention to provide fully packaged software, but rather to provide a very versatile hardware platform and starter software package so you can have full access to the power supply capabilities, and build rich application capabilities to suit your needs. - Page 19 Active feedback loop to stabilize voltage / current: this is automatically enabled; with active feedback control, output is much more stable than the analog version (EX models), and typical ripple noise is less than 5mV and 5mA for most models. Voltage and Current Calibration: this can be achieved by typing in “C”...
- Page 20 Amp-Minute operation: accessible via M10; once activated, the user simply inputs the total amp-minute, the output is disabled once the total amp-minute is reached; the user can stop and resume the process anytime using F4 key. Timer operation: accessible via M9; once activated, the user simply inputs the duration of operation in minutes, the output is disabled once the time lapsed is done;...
-
Page 21: Hardware Capabilities
achieve parallel operation. The user can build on this to control multiple power supplies to do more sophisticated applications than simple parallel setup. 5-2 Hardware Capabilities In addition to 4 function keys (F1 - F4) and 10 user definable function keys (M1 – M10), we make available 15 I/O ports for sophisticated control and measurement needs. - Page 22 6. Attachment User manual Power cord USB cable 15 pin female connector Reverse polarity assembly optional For further technical support, please consult schematics and contact us at support@volteq.com.
