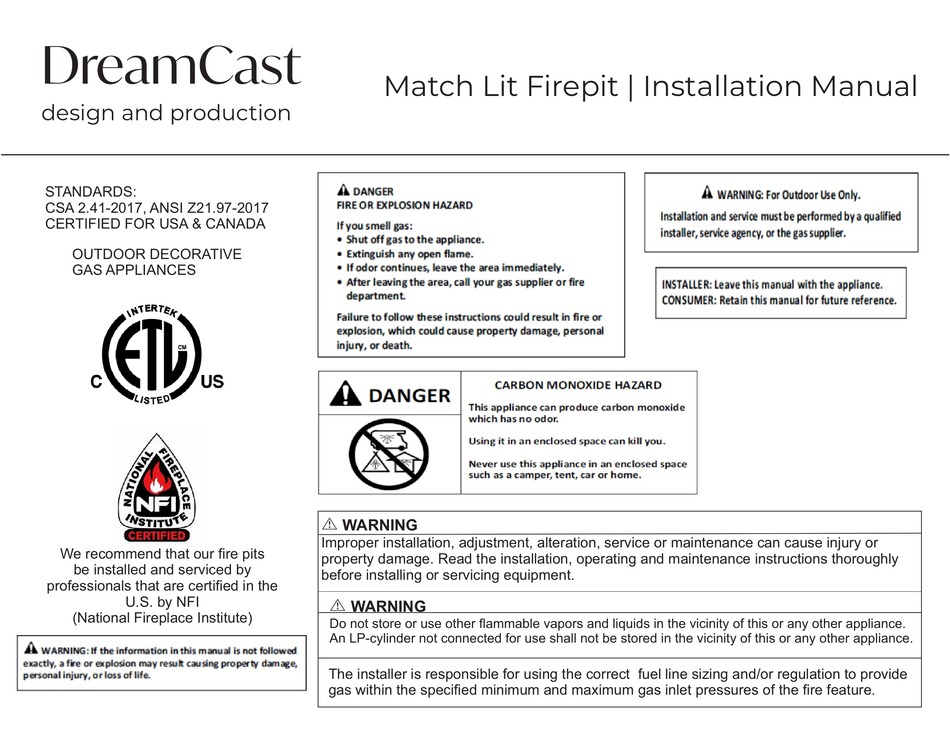

DreamCast
design and production
STANDARDS:
CSA 2.41-2017, ANSI Z21.97-2017
CERTIFIED FOR USA & CANADA
OUTDOOR DECORATIVE
GAS APPLIANCES
We recommend that our fire pits
be installed and serviced by
professionals that are certified in the
U.S. by NFI
(National Fireplace Institute)
Match Lit Firepit | Installation Manual
⚠
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Read the installation, operating and maintenance instructions thoroughly
before installing or servicing equipment.
⚠
WARNING
Do not store or use other flammable vapors and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
The installer is responsible for using the correct fuel line sizing and/or regulation to provide
gas within the specified minimum and maximum gas inlet pressures of the fire feature.
1
Advertisement
Table of Contents
Related Manuals for DreamCast Zen 36
Summary of Contents for DreamCast Zen 36
- Page 1 DreamCast Match Lit Firepit | Installation Manual design and production STANDARDS: CSA 2.41-2017, ANSI Z21.97-2017 CERTIFIED FOR USA & CANADA OUTDOOR DECORATIVE GAS APPLIANCES ⚠ WARNING Improper installation, adjustment, alteration, service or maintenance can cause injury or We recommend that our fire pits property damage.
-
Page 2: General Information
YOUR DREAMCAST APPLIANCE. Mixers may create and operation of your DreamCast fire feature. You leakage in the cavity of the pit and could cause fire or must read this manual in its entirety prior to 1. - Page 3 See Fig. 1. Please make sure that the gas line is located only within this area. This will Aura Lotus 32 ensure that the final position of the unit will not be compromised. We recommend that gas risers be kept as low to grade as possible and no higher than 6”...
- Page 4 Gas Positioning ctd. All square/rectangular firepits have a hollow base. Gas supply can come up within the footprint of this hollow base. Side slots are inherent on 2 sides to allow for sideways access. Element Libra Cubo Bloq...
-
Page 5: Concrete Care
Your DreamCast Concrete Firepit This Owner’s Guide and Instruction Manual contains critical information for the safe installation operation and maintenance of your DreamCast fire feature. You must read this manual in its entirety prior to installation and/or operation. UNBOXING CONCRETE CARE Upon receiving your DreamCast Firepit, take care to Your new DreamCast fire pit is factory sealed to resist staining and... -
Page 6: Location Considerations
Location Considerations All appliances are designed and intended for outdoor use only. All appliances must have a gas shutoff located outside of the appliance to allow for emergency shutoff and maintenance. Select a location where the appliance can be attended during operation. Never leave an operating appliance unattended or by someone not familiar with its Minimum and Maximum operation or emergency shutoff... -
Page 7: General Installation Instructions
Firepit Clearance Diagram 5. For models that include electronic ignitions, be sure to have a qualified electrician install proper power supply following all local 36" Horizontal to combustibles codes. 120" Overhead to combustibles 6. Inspect flex line(s) for punctures or breaks in line(s). 7. - Page 8 GENERAL INSTALLATION INSTRUCTIONS Ctd. 15. DreamCast Fire Pit must be installed on a stable surface. Fire 19. Do not cover the ignition pilot assembly or wind cage more pit must be properly assembled, level, and stable. The weight of than halfway with any form of media.
- Page 9 Connection Diagram - Leave with End User MATCH LIT SYSTEM CONNECTION DIAGRAMS Burner Standard Assembly Diagram Aura...
- Page 10 Standard Assembly Diagrams Refer to page 9 for parts list Bloq Libra/Element Cubo...
- Page 11 Standard Assembly Diagrams Refer to page 9 for parts list Lotus 32 Zen 34 / Zen 36...
- Page 12 Connection Diagram Ctd. 2. Remove flared fittings from flex hoses Removing flared fittings first makes installation easier 3. Connect to Burner Coupling Pass one of your flared fittings removed in Step 2 through the Support Plate and connect to the coupling of the burner unit 4.
- Page 13 Connection Diagram Ctd. 5. Connect Flex Hose with Key Valve Connect the two Flex Hoses to the Flared Fittings that are now connected to the Key Valve. One flex hose will be connected to your gas supply 6. Attach Key Valve to Fire Pit Wall Place the ABS Spacer on the threaded end of the Key Valve.
- Page 14 Connection Diagram Ctd. 7. Connect Gas Line For connecting to a portable propane tank proceed to 7B. Before connecting to a gas line, ensure your firepit burner is rated for natural gas or liquid propane as required. Connect one flex hose to your gas line using the appropriate fittings for your site arrangment 7B.
- Page 15 Connection Diagram Ctd. 8.Connect Flex Hose to Burner Connect the remaining Flex Hose and Flared Fitting attached to the Crossfire Burner in Step 3. 9. Secure Burner to Aluminum Support Plate Using the supplied EMT Straps & Screws, secure the Burner to the Support Plate through the pre-drilled holes.
-
Page 16: Lp-Gas Models
Connection Diagram Ctd. - Propane Models Be certain to mount or set the LP-gas cylinder on a flat stable surface and LP-GAS MODELS: retain it to prevent it from tipping. 1. Make sure tank valve is in its full off position. (Turn clockwise to stop). Purge the gas supply line of any trapped air prior to the first firing of the unit. - Page 17 Connection Diagram Ctd. - Propane Models The LP gas supply cylinder used with LP models must be : • i:Constructed and marked in accordance with the US Department of Transportation (D.O.T.) Specifications for LP-Gas Cylinders or the Standard for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and Commission, CAN/CSA- B339, as applicable.
-
Page 18: Media Installation
Media Installation Only use approved decorative media that have been Fuel Supply line must not come into contact with surfaces having manufactured for specific use in fire features. temperatures in excess of 140°F. LP gas cylind\er must be kept a minimum of 4.5 feet from the appliance. - Page 19 Operating Instructions ⚠ WARNING: Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury or death. Keep the area clear and free from combustible materials, 4. Before lighting, visually inspect fire feature and remove any gasoline, and other flammable vapors and liquids.
-
Page 20: General Maintenance & Troubleshooting
General Maintenance & Troubleshooting TROUBLESHOOTING ⚠ WARNING: Fire feature should be inspected by MATCH LIT user prior to each use and inspected at least once Below are some potential causes and countermeasures to annually by a qualified gas appliance service the symptoms listed: TURN OFF APPLIANCE BEFORE SERVICE professional •... -
Page 21: Replacement Parts
Replacement Parts Key3 3” Key MSCB Escutcheon & 1/2” Key valve with 3” Key EMT Mount Kit of 4 Mounting brackets and (8) screws ABS Spacer AP-52RND Aluminum round plate Flex-1/2x36 1/2” Flex Line - 36”L GF-1/2FLR 1/2” Flared Fitting LP Hose 10 LP 3/8”... -
Page 22: Warranty
Instruct you how to use the fire pit. All DreamCast products are guaranteed, at the time of delivery B. Repairs when the DreamCast Fire pit has been used in other (i) to meet the product specification, (ii) to conform to the than normal domestic/commercial use or when not used in description and standards stipulated on the order. - Page 23 Burner Warranty by Warming Trends® ALL CROSSFIRE BRASS BURNERS HAVE A Problems in the functioning of the systems due to gas plumbing or LIMITED LIFETIME WARRANTY. electrical installed by others are not covered by any warranty ALL BURNERS MUST BE COVERED WHEN NOT IN USE offered by Warming Trends®.
-
Page 24: Prop 65 Warning
Prop 65 Warning What is “Prop 65”? WARNINGS: Proposition 65 (“Prop 65”) is a California law which requires Lead: Can cause birth defects or other reproductive harm. businesses to provide warnings to Californians about Lead can be found in brass fittings. View the fact sheet at significant exposures to chemicals that cause cancer, birth www.p65warnings.ca.gov defects or other reproductive harm.
