DreamCast
design and production
Certified to
ANSI STD Z21.97 - 2017
CSA STD 2.41 - 2017
4011077
OUTDOOR DECORATIVE
GAS APPLIANCES
CERTIFIED FOR USA & CANADA
We recommend that our fire pits
be installed and serviced by
professionals that are certified in the
U.S. by NFI
(National Fireplace Institute)
Match Lit Firepit with Standing Pilot
60k - 250k BTU with Safety Shut-off
Installation & Operation Manual
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Read the installation, operating and maintenance instructions thoroughly
before installing or servicing equipment.
WARNING
Do not store or use other flammable vapors and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
The installer is responsible for using the correct fuel line sizing and/or regulation to provide
gas within the specified minimum and maximum gas inlet pressures of the fire feature.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AURA36-CFB60 and is the answer not in the manual?

Questions and answers

Summary of Contents for DreamCast AURA36-CFB60

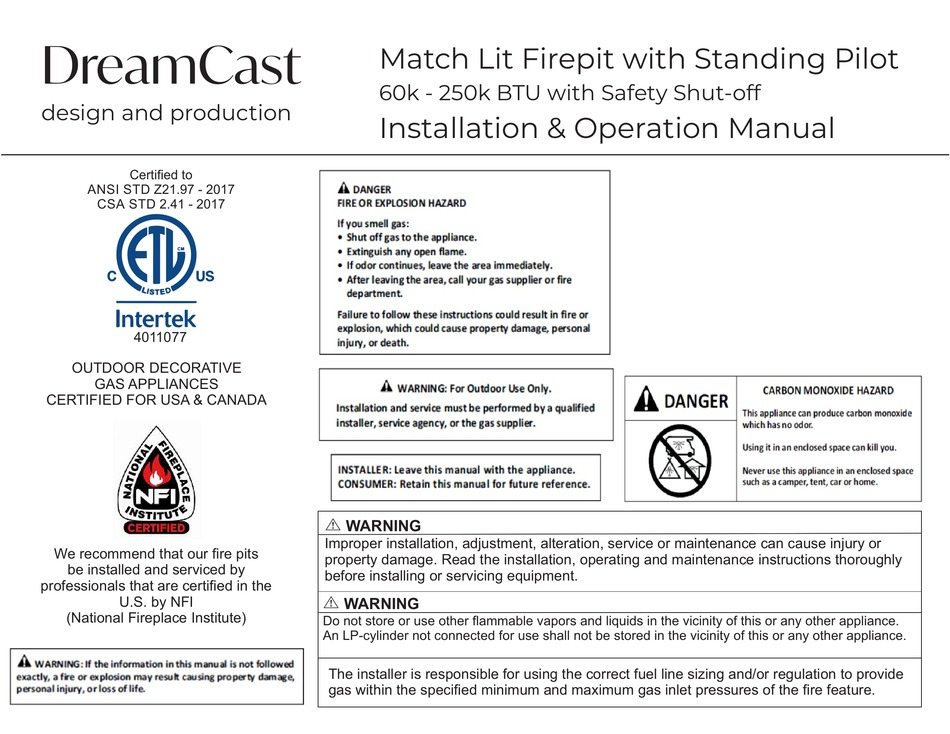

  • Page 1 Match Lit Firepit with Standing Pilot DreamCast 60k - 250k BTU with Safety Shut-off design and production Installation & Operation Manual Certified to ANSI STD Z21.97 - 2017 CSA STD 2.41 - 2017 4011077 OUTDOOR DECORATIVE GAS APPLIANCES CERTIFIED FOR USA & CANADA ⚠...
