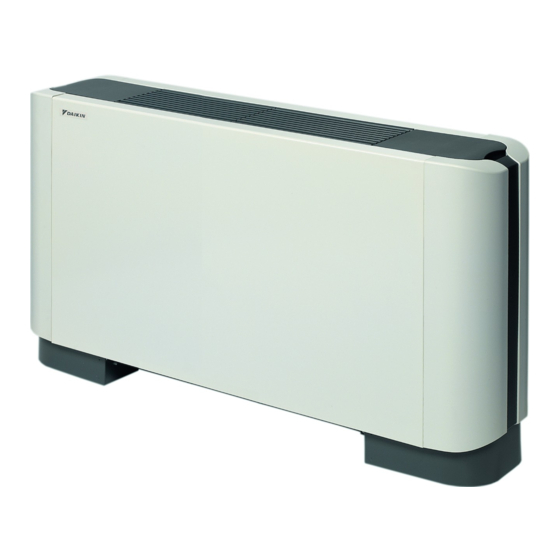

- Page 1 INSTALLATION AND OPERATION MANUAL System air conditioners FXLQ20P5VEB FXLQ25P5VEB FXLQ32P5VEB FXLQ40P5VEB FXLQ50P5VEB FXLQ63P5VEB...
- Page 2 Control box IN/D OUT/D Control box IN/D OUT/D Control box IN/D OUT/D Control box Control box IN/D OUT/D IN/D OUT/D...
- Page 3 3P604645-1...
-
Page 4: Table Of Contents
TO USE ACCESSORIES AND SPARE PARTS MADE BY Do not install or operate the unit in rooms mentioned below. ■ DAIKIN WHICH ARE SPECIFICALLY DESIGNED FOR Places with mineral oil, or filled with oil vapour or spray like in USE WITH THE EQUIPMENT AND HAVE THEM kitchens. - Page 5 This unit can be installed on the floor or be mounted to a wall. ■ THE ABOVE TABLE RELATES TO THE MODELS Important information regarding AND VALUES STATED IN THIS TABLE the refrigerant used FXLQ20P5VEB 0.049 FXLQ25P2VEB 0.049 This product contains fluorinated greenhouse gases. FXLQ32P5VEB 0.09...
-
Page 6: Selecting Installation Site
Selecting installation site This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Select an installation site where the following conditions are Keep indoor unit, outdoor unit, power supply wiring and fulfilled and that meets your customer's approval. -
Page 7: Indoor Unit Installation
Indoor unit installation Wallmounted installation As for the parts to be used for installation work, be sure to use the ■ Check whether the wall is strong enough to bear the provided accessories and specified parts designated by our weight of the unit. If there is a risk, reinforce the wall company. -
Page 8: Refrigerant Piping Work
■ Use copper alloy seamless pipes (ISO 1337). ■ The outdoor unit is charged with refrigerant. ■ To prevent water leakage, execute heat insulation work completely on both sides of the gas and liquid piping. When using a heat pump, the temperature of the gas piping can reach up to approximately 120°C. -
Page 9: Drain Piping Work
Drain piping work Cautions for brazing ■ Be sure to carry out a nitrogen blow when brazing. Rig the drain pipe as shown below. Improperly rigged piping could Brazing without carrying out nitrogen replacement or releasing lead to leaks and eventually wet furniture and belongings. nitrogen into the piping will create large quantities of oxidized film on the inside of the pipes, adversely affecting valves and Carry out the drain piping... -
Page 10: Electric Wiring Work
Electric wiring work Precautions Observe the notes mentioned below when wiring to the power supply terminal board. General instructions Use a round crimp-style terminal for insulation sleeve for connection to the terminal block for wiring the units. When DANGER: ELECTRICAL SHOCK none are available, follow the instructions below. -
Page 11: How To Install The Remote Controller And Wiring Inside The Unit
Electrical characteristics Wiring installation Remove the control box cover and connect the wiring. Power supply Fan motor Voltage Model Volts range 0.015 0.015 0.025 50/60 220-240/220 ±10% 0.025 0.035 0.035 MCA: Minimum Circuit Amps (A) MFA: Maximum Fuse Amps (A) FLA: Full Load Amps (A) For details, refer to "Electrical data"... -
Page 12: Wiring Examples
Wiring examples Field setting Fit the power supply wiring of each unit with a switch and fuse as Field setting must be made on the remote controller in function of the shown in figure 1. installation condition. ■ Setting can be made by changing the "Mode number", "First Power supply BS unit (only for heat code No."... -
Page 13: Test Operation
Test operation How to clean the air filter Refer to the installation manual of the outdoor unit. Clean the air filter when the display shows " " (TIME TO CLEAN AIR FILTER). The operation lamp of the remote controller will flash when an error occurs. -
Page 14: Disposal Requirements
How to clean air outlet and outside panels Start up after a long stop ■ Clean with soft cloth. Confirm the following: ■ When it is difficult to remove stains, use water or neutral ■ Check that the air inlet and outlet are not blocked. Remove any detergent. -
Page 15: Unified Wiring Diagram Legend
Unified wiring diagram legend Unified Wiring Diagram Legend For applied parts and numbering refer to the wiring diagram sticker supplied on the unit. Part numbering is realized by Arabic numbers in ascending order for each part and is represented in the overview below by symbol “*” in the part code. CIRCUIT BREAKER CIRCUIT BREAKER PROTECTIVE EARTH... - Page 16 DAIKIN ISITMA VE SOĞUTMA SİSTEMLERİ SAN.TİC. A.Ş. Gülsuyu Mahallesi, Fevzi Çakmak Caddesi, Burçak Sokak, No:20, 34848 Maltepe İSTANBUL / TÜRKİYE Tel: 0216 453 27 00 Faks: 0216 671 06 00 Çağrı Merkezi: 444 999 0 Web: www.daikin.com.tr 3PEN604647-1 2019.12...
