Instructions – Parts List
19 LITER (5 GALLON)
Ram–Mounted Pumps
For information on Ram Extension Kit 223889, refer to page 10.
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
See page for 2 model numbers, ratios, and
maximum working pressures.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 1990, Graco Inc. is registered to I.S. EN ISO 9001
Parts

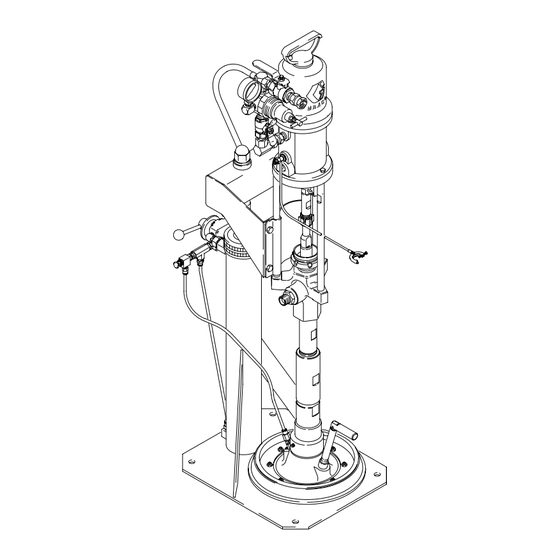

Model 231117 Shown
308026S
06540A
Advertisement
Related Manuals for Graco Senator
Summarization of Contents
Instructions and Parts List
Important Safety Instructions
Read all warnings and instructions in this manual. Save these instructions for future reference.
Symbols and Warnings
Warning and Caution Symbols
Alerts the user to potential serious injury or equipment damage if instructions are not followed.
Equipment Misuse Hazard
Highlights risks associated with improper use, modification, or maintenance of the equipment.
Hazardous Operation Warnings
Injection Hazard
Warns about the danger of high-pressure fluid injection, causing serious injury or amputation.
Moving Parts Hazard
Alerts users to the risk of pinch or amputation from moving components during operation.
Environmental and Fluid Hazards
Fire and Explosion Hazard
Details risks related to grounding, ventilation, open flames, and flammable fumes.
Toxic Fluid Hazard
Addresses risks from hazardous fluids or fumes, emphasizing proper handling and protective gear.
Setup and Installation
Grounding Procedures
Instructions for correctly grounding the system to prevent fire and explosion hazards.
Location and Mounting
Guidance on positioning the ram for accessibility and securing its base.
Components and Accessories
Notes on selecting and using genuine Graco parts and appropriate system accessories.
System Components Details
Air Line Components
Description of essential air line parts like bleed valves, regulators, filters, and manifolds.
Fluid Line Components
Details on necessary fluid line accessories such as drain valves and pressure regulators.
Air and Fluid Hoses
Guidelines for selecting and using electrically conductive air and fluid hoses with spring guards.
Setup Kits and Shields
Ram Extension Kit
Information on the Ram Extension Kit 223889 for adapting pumps to specific ram models.
Wiper Plate Shield Kit
Details on the Wiper Plate Shield Kit 223689 for keeping the wiper plate clean.
Operation Guide
Pressure Relief Procedure
Step-by-step instructions to safely relieve system pressure before servicing or clearing clogs.
Starting and Adjusting the Ram
Procedure for raising the ram, positioning the fluid pail, and initial setup.
Pump Operation and Maintenance
Starting and Adjusting the Pump
Steps for starting the pump, adjusting ram air pressure, and ensuring proper operation.
Changing Fluid Pails
Procedure for safely replacing an empty fluid pail with a new one.
Shutdown and Care
Instructions for safely shutting down the pump and general care recommendations.
Parts Breakdown - Model 231113
Model 231113 Parts List
Detailed list of part numbers and descriptions for the 10:1 Ratio Monark Pump.
Parts Breakdown - Model 231111
Model 231111 Parts List
Detailed list of part numbers and descriptions for the 20:1 Ratio President Pump.
Parts Breakdown - Model 231112
Model 231112 Parts List
Detailed list of part numbers and descriptions for the 34:1 Ratio Senator Pump.
Parts Breakdown - Model 231115
Model 231115 Parts List
Detailed list of part numbers and descriptions for the 55:1 Ratio Bulldog Pump.
Parts Breakdown - Models 231166 & 231167
Model 231166 Parts List
Detailed list of part numbers and descriptions for the 34:1 Quiet Senator Pump.
Model 231167 Parts List
Detailed list of part numbers and descriptions for the 55:1 Quiet Bulldog Pump.
Parts Breakdown - Models 231117 & 234953
Model 231117/234953 Parts List
Detailed list of part numbers and descriptions for the 23:1 Monark Pump.
Parts Breakdown - Models 231118, 234954 & 233030
Model 231118/234954 Parts List
Detailed list of part numbers and descriptions for the 46:1 President Pump.
Model 233030 Parts List
Detailed list of part numbers and descriptions for the 46:1 President Pump (No Ram Plate).
