TITANIUM-SERIES

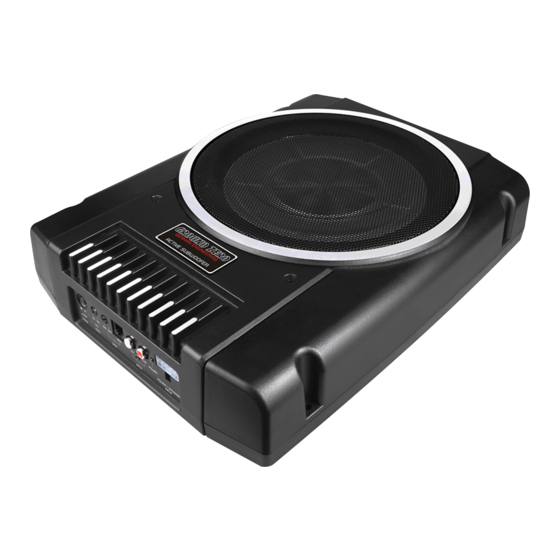

20 cm / 8" ACTIVE SUBWOOFER
ANLEITUNG / OWNER'S MANUAL
GZTB 20ACT
Ausstattungsmerkmale / Features
• Extrem flach
• Massives Kunststoff Spritzguss Gehäuse
• Geringe Stromaufnahme
• Basspegel-Fernbedienung
• High-Level Eingänge mit AUTO-ON
• Extremely flat
• Strong plastic injection enclosure
• Low current consumption
• Bass remote
• High level input with AUTO-ON
Advertisement
Table of Contents
Related Manuals for Ground Zero GZTB 20ACT
Summarization of Contents
Ground Zero GZTB 20ACT Product Features
Extremely Flat Design
The subwoofer features an extremely flat profile for versatile installation options.
Robust Enclosure
Constructed with a solid plastic injection molded housing for durability.
Low Power Consumption
Designed for minimal electrical draw, ensuring efficient operation.
Bass Level Remote Control
Includes a remote control for convenient adjustment of bass levels.
High-Level Input with Auto-On
Features high-level inputs that automatically turn the unit on.
Ground Zero GZTB 20ACT Technical Specifications
Woofer and Impedance Details
Details the woofer size (20 cm / 8") and impedance (2 x 2 Ω).
Power Output and Frequency Range
Specifies max/RMS output power (160W/100W) and low-pass filter range (50-100 Hz).
Operational Requirements
Covers max current consumption (8A), recommended voltage (10V-15V), dimensions, and weight (3.9 KG).
Installation and Wiring Guide
Suggested Mounting Positions
Illustrates potential installation locations within a vehicle, like footwell or trunk.
Wiring Diagram Overview
Presents a general wiring diagram for connecting power, ground, and remote signals.
High-Level Input Connection
Details the specific connection procedure for high-level audio inputs.
RCA (Low-Level) Input Connection
Explains how to connect the subwoofer using RCA low-level audio signals.
GZTB 20ACT Adjustment Controls
Phase and Crossover Frequency
Adjusts the audio phase (0°/180°) and sets the crossover frequency (50-100 Hz).
Gain Control
Allows adjustment of the input signal level for optimal volume matching.
Input Signal Selection
Guidance on using either RCA or high-level inputs, not both simultaneously.
