IRIDIUM SERIES

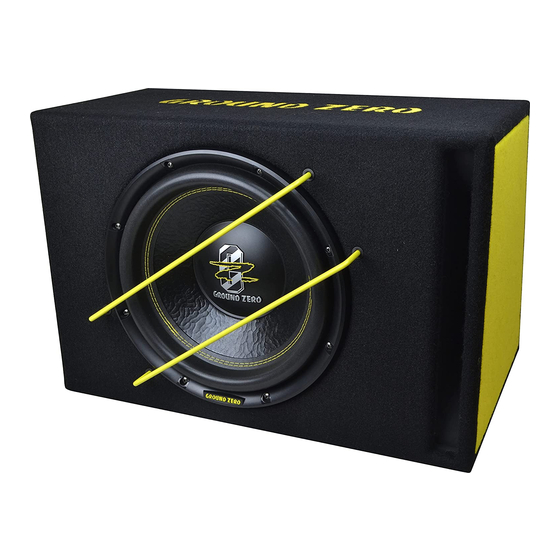

Active Vented Subwoofer
GZIB 20BR-ACT / 25BR-ACT / 30BR-ACT
Anleitung / Owner´s manual
•
Hochwertiger Bassreflex Aktiv-Subwoofer
•
KLIPPEL
•
IMPP Membran mit 3D-Wabenstruktur
•
Massives Gehäuse aus MDF
•
Strömungsoptimierter Basstunnel
•
Class A/B MOSFET Verstärker
•
Regelbare Bass-Anhebung (Bass Boost)
•
Schalter zur Umkehr der Phasenlage (Phase Switch)
•
Tiefpassfilter (30 – 120 Hz)
•
Hochpegeleingang mit automatischer Einschaltfunktion
•
Optionale Kabelfernbedienung (GZTA Bassremote)
o High-Quality vented active subwoofer
o KLIPPEL® optimized
o IMPP cone with 3D-honeycomb structure
o Solid enclosure made from MDF
o Flow optimized bass tunnel
o Class A/B MOSFET amplifier
o Adjustable bass boost
o Phase shift option (phase switch)
o Low pass filter (30 – 120 Hz)
o High level input with auto-on function
o Optionally available remote control (GZTA Bassremote)
(AWV2.1)
Ausstattungsmerkmale / Features
®
optimiert
IRIDIUM SERIES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRIDIUM Series and is the answer not in the manual?

Questions and answers

Related Manuals for Ground Zero IRIDIUM Series

Summary of Contents for Ground Zero IRIDIUM Series

  • Page 1 IRIDIUM SERIES Active Vented Subwoofer GZIB 20BR-ACT / 25BR-ACT / 30BR-ACT Anleitung / Owner´s manual (AWV2.1) Ausstattungsmerkmale / Features • Hochwertiger Bassreflex Aktiv-Subwoofer • ® KLIPPEL optimiert • IMPP Membran mit 3D-Wabenstruktur • Massives Gehäuse aus MDF • Strömungsoptimierter Basstunnel •...

  • Page 2: Einleitung / Introduction

    Anlage sowie deren Einbau und Abstimmung den Fachhandel oder eine spezialisierte Fachwerkstatt aufzusuchen. Thank you for choosing a great GROUND ZERO product! We hope you will enjoy this product from the IRIDIUM series. This owner´s manual contains information you need to use this product. Please read it carefully in order to achieve the best possible result.

  • Page 3: Sicherheitshinweise / Safety Instructions

    130 dB or more. Extreme levels can also hinder the perception of important traffic noises and distract from what is happening on the road. Ground Zero GmbH and its sales partners expressly assume no responsibility for hearing damage, physical damage or any damage to property or consequential damage resulting from improper or careless use or improper installation of its products.

  • Page 4: Technische Daten / Specifications

    GROUND ZERO GZIB 20BR-ACT/25BR-ACT/30BR-ACT Technische Daten / Specifications Modell / model GZIB 20BR-ACT Lautsprecherdurchmesser / speaker diameter 20 cm / 8“ 4 Ω impedance Impedanz / cone Membran / IMPP max. output power Max. Ausgangsleistung / 220 W max rated output power...
  • Page 5 GROUND ZERO GZIB 20BR-ACT/25BR-ACT/30BR-ACT Anschlüsse und Einstellungen / Connections and functions Feature Ausstattungsmerkmal Betriebsanzeige Power indicator Diese leuchtet im Betriebszustand Lights up in operation mode Störungsanzeige Protection indicator Diese leuchtet im Fall einer Störung oder Überhitzung Lights up in case of a defect or overheating...

  • Page 6: Troubleshooting Guide

    GROUND ZERO GZIB 20BR-ACT/25BR-ACT/30BR-ACT Belegung des Hochpegeleingangs / High level input connection Kabelfarbe Anschluss Cable color Connection grau rechter Kanal (-) grey right channel (-) grey/black grau/schwarz rechter Kanal (+) right channel (+) weiß linker Kanal (-) white left channel (-) white/black weiß/schwarz...
  • Page 7 ® Verified with KLIPPEL ® GROUND ZERO is using the worldwide accepted KLIPPEL R&D Analyzer KA3 measurement system for speaker development during the German in-house development as well as for QC reporting for most production lines at the factory. The results of LPM and LSI measurements are the basis for evaluating and verifying further development enabling to offer perfectly working products in any practical application.
  • Page 8 Some music styles require higher levels while others prefer the soft tones. GROUND ZERO considers all the different wishes of customers during the development of new products. Along with this, the target is to create the most realistic sound, to transfer the soul of the music and the intention of the performer.
