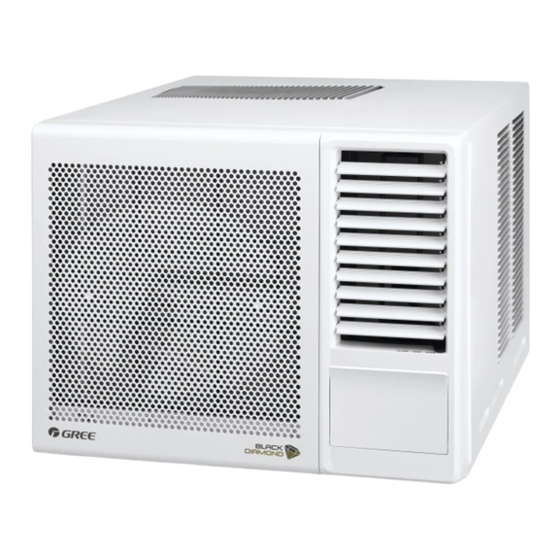

- Page 1 Window type Air Conditioner Models: GWA2107BM GWA2107BR GWA2109BM GWA2109BR GWA2112BM GWA2112BR GWA2118BM GWA2118BR GWA2124BM GWA2124BR...
-
Page 2: Table Of Contents
CONTENTS Thank you for choosing air conditioner. Our design is based on the best efficiency and the lowest noise operation and it can keep the room comfortable. Please read this operating manual carefully before operating the unit and keep it for consultation. Structure mechanism and Installation Precautions Function... - Page 3 Explanation of Symbols Indicates a hazardous situation that, if not avoided, will DANGER result in death or serious injury. Indicates a hazardous situation that, if not avoided, could WARNING result in death or serious injury. Indicates a hazardous situation that, if not avoided, may CAUTION result in minor or moderate injury.
-
Page 4: Precautions
Precautions Warning Children should not operate the appliance. Cleaning and user maintenance shall not be made by children without supervision. The air conditioner should be installed in accordance with local regulation. Air Conditioner should be properly grounded. Incorrect grounding may cause electric shock. -
Page 5: Function
Function Introduction Autumn Window type room air conditioners can regulate the room Spring Summer Winter Room temperature and dry the room. It is convenient for your work,study temp. and life. It can be widely used in residence, shop, hotel, office, library and laboratory, and so on. -
Page 6: Operating Condition
Operating Condition Please operate air conditioner in the correct conditions as following. DRY mode operation COOL mode operation Outdoor temperature should be in range of 18 Outdoor temperature should be in range of 18 to 43 to 43 , otherwise it is possible for air conditioner otherwise it is possible for air conditioner to breakdown. -
Page 7: Installation
Installation Installation precaution: Window type conditioner is so valuable and the improper installa- tion of it will cause a lot of damage! Please associate the profes- sional technician to install the unit and don’t install it by yourself. Otherwise, we are not responsible for the damage due to the improper installation. - Page 8 Installation procedure: Horizontal line Remove the sticker from the front panel. Put the unit into the installation hole. When installing the unit, it should be slante d down to the back to avoid the enlargement of noise or vibration. (Slant between 6-10mm.) Shown at right figure.) The installation place should be strong enoug h to avoid the enlargement of noise or vibration.
- Page 9 Drain water for one style: To get the maximum cooling efficiency, the air conditioner is designed to splash the condensate on the condenser coil. If the splashing sound annoys you, you can provide an outside drain by using the following procedure, which may cause a small loss of performance.
-
Page 10: Notes For Installation
All the electrical work must be done according to the local wiring regulations. Shall be installed in the circuit of miniature circuit switch and it has a capacity of 10A (GWA2107BM/R , GWA2109BM/R, GWA2112BM/ R),16A (GWA2118BM/R ) or 25 A(GWA2124BM/R)；... -
Page 11: Part Identification
Part identification Panel outlook picture, just for reference, please take the real unit as standard. Panel outlook picture, just for reference, please take the real unit as standard. Air direction adjustment Vertical airflow direction vane (Airfl o w direction adjustment up and down). The vertical airflow direction vane is controlled by positioning the vane to discharge the air upwards, downwards or straight out. -
Page 12: Main Switch Operation Procedure
Main switch operation procedure 1.Main Control Knob Set to Low Cool, Med Cool or High Cool as desired (FAN setting operates the fan only.) CAUTION: If the main control knob is turned off of changed to a fan setting from a cooling operation setting. WAIT at least 3 minutes before resetting to cooling operation. -
Page 13: Remote Control Operation Procedure
Remote control operation procedure Buttons on remote controller ON/OFF button MODE button +/- button FAN button SWING button SLEEP button TIMER button Introduction for icons on display screen Timer on Timer off Sending signal auto operation swing operation cool operation sleep operation dry operation lock... - Page 14 Introduction for buttons on remote controller Note: ● This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model doesn't have, if press the corresponding button on the remote controller that the unit will keep the original running status.
- Page 15 Introduction for buttons on remote controller FAN button Pressing this button can select fan speed circularly as: AUTO, SPEED 1 ( SPEED 2 ( ) , SPEED 3 ( ), SPEED 4 ( ) (unavailable in this air conditioner. Speed 4 is the same with speed 3.). AUTO SPEED 1 (equals to low fan speed) SPEED 2 (equals to mid fan speed)
- Page 16 Introduction for buttons on remote controller Note: ● Range of time setting is: 0.5~24h. ● The interval between two motions can't exceed 5s, otherwise the remote con- troller will exit setting status. Function introduction for combination buttons Child lock function Press “+”...
- Page 17 Replacement of batteries in remote controller 1. Press the mark “ ” on back cover of batteries box cover for remote controller with fingers as shown in the fig, and then remove the batteries box cover along the arrow direction. Battery 2.
-
Page 18: Remote Control Panel
Remote control panel Note: If wireless remote controller is lost, open the surface panel and operate manually. ON/OFF BUTTON SIGNAL RECEIVER Operation starts when pressing this button, and stops when pressing this button again. MODE BUTTON Select the operation mode AUTO,COOL,FAN, DRY . SWING BUTTON Activate the automatic air swing function. -
Page 19: Operation Tips
Operation Tips Operation for comfort and economy Do not overcool the room Keep blind or curtains closed . Keep the room temperature temperature. consistent. Adjust the vertical Do not let sunshine enter the This is not good for health and and horizontal airflow direction room directly when the air con- wastes electricity. -
Page 20: Caution
Caution Operations for safety and health 1) The plug must be accessible after the appliance is positioned. 2) Do not use this appliance in the laundry. 3) If the power cord is damaged, it must be replaced by the manufacturer or its service agent against any hazard. Do not pull out the power cord. -
Page 21: Care And Maintenance
Care and maintenance Always turn off the air conditioner and cut off the main power supply for secure before cleaning. Cleaning unit 1. Cut off power supply before cleaning. Air filter The air filter behind the intake grille should be washed at Unplug only after least once every two weeks or as often as it needs cleaning. -
Page 22: Trouble Shooting Guide
Trouble shooting guide Please check the following items before asking for repair,it saves your time and money. Fault phenomenon Trouble-shooting * Is there a power failure? * Is the plug out? Air conditioner can not s power fuse or switch off ? operate at all. -
Page 23: After Service
Immediately stop all operations and plug out, please contact your dealer in the following situations. *Operation starts or stops abnormally; *Power fuse or switch often breaks; *Carelessly splash water or something into air conditioner; *Electrical lines are much hot or lines cover breaks; *Other strange situations. - Page 24 Please record the following product information ● Model ● Serial No. ● Name of the franchiser ● Date of purchase The continuous improvement of products , such as function is changed, without prior notice, if there are any questions, please contact customer service ,Sorry for the inconvenience please forgiveness ToolBox Customer Service Centre：...
