Carmanah M850 & M860 Self-Contained LED Lantern Instructions
Carmanah M850 & M860 LED Lantern Instructions

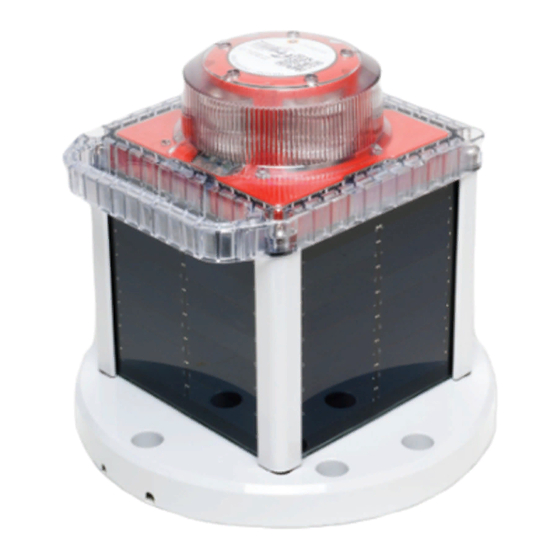

The Carmanah M850 and M860 lanterns are self-contained, omni-directional LED marine
lanterns for use on lighted buoys and structures with a nominal range of 3 to 7 nautical miles.
This document provides the following information:
Overview
●
Important Notes of Concern
●
General Information (SECTION 1)
●
Solar Sizing Program (SECTION 2)
●
Lantern Quick Start Guide & Programming (SECTION 3)
●
Lantern Selection (SECTION 4)
●
Receipt, Storage, Recharging, Installation,
●
Servicing, and Troubleshooting (SECTION 5)
Ordering Instructions (SECTION 6)
●
Enersys Cyclon Battery Safety Data Sheet (SDS)
●
Carmanah USCG Product Item List
●
Carmanah M850 & M860 Self-Contained LED Lanterns
All manuals and user guides at all-guides.com
1
v1.1 Jan 2016
Page 2
Page 3
Page 4
Page 6
Page 7
Page 14
Page 15
Page 24
APPENDIX A
APPENDIX B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M860 and is the answer not in the manual?

Questions and answers

Related Manuals for Carmanah M860

Summary of Contents for Carmanah M860

  • Page 1 Carmanah M850 & M860 Self-Contained LED Lantern Instructions Carmanah M850 & M860 LED Lantern Instructions The Carmanah M850 and M860 lanterns are self-contained, omni-directional LED marine lanterns for use on lighted buoys and structures with a nominal range of 3 to 7 nautical miles.
  • Page 2 The lanterns are self-contained: the solar panels, battery, flasher, daylight control, and lantern assembly are all housed as a single unit. The M850 and M860 share the same LED optics but differ in battery and solar panel size (the “solar engine”). The M850 lantern contains the 60X battery (60 watt-hour) while the M860 contains the larger 200BC battery (200 watt-hour) along with larger solar panels resulting in a bigger solar engine.
  • Page 3 All manuals and user guides at all-guides.com v1.1 Jan 2016 Carmanah M850 & M860 Self-Contained LED Lantern Instructions Important Notes of Concern: 1. DO NOT store these self-contained LED lanterns in the box after delivery. These lanterns contain expensive lead-acid batteries that must be kept charged or else sulfation build-up on the lead plates will permanently damage the batteries and reduce their capacity.

  • Page 4: General Information

    There are no top-mounted solar panels. The optic head and battery packs are replaceable. The M850 is approximately 9” tall, 9-¼” wide at the base, and weighs approximately 10 lbs. The M860 is 13” tall, 9-¼” wide at the base, and weighs approximately 22 lbs.
  • Page 5 Default Settings. The M850 and M860 lanterns arrive from the factory with three default settings that should never be changed: (1) Automatic Light Control (ALC) must remain off, (2) the Calendar (CAL) must remain off, and (3) the lux transition levels must remain at d2n = 250L and n2d = 320L.
  • Page 6 You will then be able to select a lantern and effective intensity that will work for your aid. Always select the M850 lantern over the M860 if it provides an acceptable solution as it’ll save you about $300 dollars per lantern.
  • Page 7 StAt Battery Status: SoC (charge in percentage), voLt (in dc volts; bAtt M850 = 6.3 volts nominal, M860 = 8.4 volts nominal) Displays the three digit code for the flash characteristic. FLSh Displays the lantern’s Effective Intensity setting in candela (cd).
  • Page 8 Carmanah after placing a lantern order through SILC Contracting). While charging, a single decimal point on the lower right corner of the lantern’s digital LED display will continually flash to indicate that charging is taking place;...
  • Page 9 (for Flash Character Menu). Press the Set Key to unlock the flash characteristic setting. Enter the selected three digit code for the characteristic with the numeric key pad. The codes are same for all Carmanah lanterns. Rhythm Code Q (0.3s flash, 0.7s eclipse) FL 2.5 (0.3) (0.3s fl, 2.2s ec)
  • Page 10 All manuals and user guides at all-guides.com v1.1 Jan 2016 Carmanah M850 & M860 Self-Contained LED Lantern Instructions Setting the Lantern Effective Intensity Step Action Wake the lantern by repeatedly pressing the Power Key until you get a flash. Then, turn on the lantern by holding down the Power Key for a few seconds.
  • Page 11 It’s unlikely ATON units will ever have to change the LUX (Ambient Light Levels) on their M800 Carmanah lanterns. Ambient light levels are used to determine when the lantern will turn on at night or turn off during the day, depending on the amount of ambient light detected by the lantern’s internal daylight control sensor.
  • Page 12 When servicing or troubleshooting the M850 or M860 LED lantern, clean any dirt or guano from the lantern, paying close attention to the solar panels and the optic head/lens cover. Closely inspect the optic head and solar panels checking for any damage, cracks, or discoloring.
  • Page 13 Calendar: on, oFF When sending correction messages or reporting lantern problems, ensure that the lantern serial number (not battery tracking number) shown on the optic head is included in the message or email. This information is vital for reporting issues/problems to Carmanah.
  • Page 14 Both the M850 and M860 lanterns provide a wide range of intensities. However, the capabilities of the M860 lantern in the lower intensity settings are duplicated by the M850 lantern. Because of cost considerations, use the M860 only at aid locations where the required effective intensities and/or autonomy cannot be met with an M850 lantern.
  • Page 15 (the cooler, the better). Carmanah offers a three (3) year limited warranty: For the first year after purchase, Carmanah will, at their discretion, repair, replace, or provide a credit for a faulty lantern if failure is due to a defect in materials or workmanship.
  • Page 16 SILC Contracting by calling Carmanah and providing the order number and the additional payment. If you purchase this option, a battery charge port will be added to the bottom of the lantern’s base flange for charging the battery using an external 120VAC...
  • Page 17 3. Opening the Lantern. Use this method only as a last resort since it involves disturbing the factory seal. Any Carmanah self-contained lantern, with or without a charge port, can always be opened up and charged using the external 120VAC power-pack style battery charger ($56 option, p/n: 69885) connected directly to the battery board.
  • Page 18 Carmanah M850 & M860 Self-Contained LED Lantern Instructions Installation If District has determined that the Carmanah M850 or M860 satisfies effective intensity and autonomy requirements, then the lantern may be installed on either a steel buoy, a 5 X 9 foam buoy, or on a structure.
  • Page 19 All manuals and user guides at all-guides.com v1.1 Jan 2016 Carmanah M850 & M860 Self-Contained LED Lantern Instructions bolts and the top of the lantern’s base, as shown in the above figure. The mounting bolts should be torqued to 40 to 44 ft-lbs (4.5 to 5 N m).
  • Page 20 (replace) batteries at intervals shown in the table on the next page. A battery replacement kit can be ordered directly from Carmanah (see SECTION 6 below). The battery kits contain a Cyclon battery pack, harness, battery hold-down plate, head/base gasket and washers (lantern base not included).

  • Page 21: Troubleshooting

    All manuals and user guides at all-guides.com v1.1 Jan 2016 Carmanah M850 & M860 Self-Contained LED Lantern Instructions Recharge Interval District (Years) D5 (VA north) D5 (NC) D7 (SC & GA) D7 (FL & PR) D8 (FL, MS, AL & LA)
  • Page 22  If the lantern does not perform as it should, and the problem is not attributable to physical damage, Carmanah will replace the lantern under warranty – free of charge – within the first three years of purchase if problem is not related to the battery. If battery-related, Carmanah will replace the battery within the first year of purchase only.
  • Page 23 Mike Battagello 1-250-380-0062 Fax: customerservice@carmanah.com Email: www.carmanah.com Website: Before contacting Carmanah’s Customer Service Department, please have the serial number of the M800 lantern available, a detailed description of the problem, as well as all details of initial installation and recharging efforts.

  • Page 24: Ordering Instructions

    ATON Asset Line’s webpage here: http://www.uscg.mil/hq/cg4/cg432/products.asp (click the “LED Lantern Prices” weblink under “Products & Services”). The buyer specifies the model number (M850 or M860) and color (red, green, white, or yellow). The Carmanah M850 and M860 LED lanterns are manufactured and sold by: Carmanah Technologies Inc.

  • Page 25: Safety Data Sheet

    APPENDIX A All manuals and user guides at all-guides.com Form #: SDS 853027 Revised: 05/14/15 SAFETY DATA SHEET Supersedes: NEW ECO #: 1001584 I. PRODUCT IDENTIFICATION Chemical Trade Name (as used on label): Chemical Family/Classification: Cyclon®, Genesis®, SBS, SBS J, Hawker XE™, Odyssey®, Trolling Thunder™, NexSys™, OptiGrid™ or XFC Sealed Lead Battery Synonyms: Sealed Lead Acid Battery, VRLA Battery...
  • Page 26 All manuals and user guides at all-guides.com Form #: SDS 853027 Revised: 05/14/15 SAFETY DATA SHEET Supersedes: NEW ECO #: 1001584 IV. FIRST AID MEASURES Inhalation: Sulfuric Acid: Remove to fresh air immediately. If breathing is difficult, give oxygen. Consult a physician Lead: Remove from exposure, gargle, wash nose and lips;...

  • Page 27: Exposure Controls/Personal Protection

    All manuals and user guides at all-guides.com Form #: SDS 853027 Revised: 05/14/15 SAFETY DATA SHEET Supersedes: NEW ECO #: 1001584 VIII. EXPOSURE CONTROLS/PERSONAL PROTECTION Exposure Limits (mg/m3) Note: N.E.= Not Established OSHA PEL ACGIH US NIOSH Quebec PEV Ontario OEL EU OEL INGREDIENTS (Chemical/Common Names)

  • Page 28: Reactivity Data

    All manuals and user guides at all-guides.com Form #: SDS 853027 Revised: 05/14/15 SAFETY DATA SHEET Supersedes: NEW ECO #: 1001584 X. REACTIVITY DATA Stability: Stable X Unstable ___ This product is stable under normal conditions at ambient temperature. Conditions To Avoid: Prolonged overcharge; sources of ignition Incompatibility: (Materials to avoid) Sulfuric Acid: Contact with combustibles and organic materials may cause fire and explosion.

  • Page 29: Ecological Information

    All manuals and user guides at all-guides.com Form #: SDS 853027 Revised: 05/14/15 SAFETY DATA SHEET Supersedes: NEW ECO #: 1001584 Acute Toxicity: Inhalation LD50: Electrolyte: LC50 rat: 375 mg/m3; LC50: guinea pig: 510 mg/m3 Elemental Lead: Acute Toxicity Point Estimate = 4500 ppmV (based on lead bullion) Oral LD50: Electrolyte: rat: 2140 mg/kg Elemental lead: Acute Toxicity Estimate (ATE) = 500 mg/kg body weight (based on lead bullion)

  • Page 30: Transport Information

    All manuals and user guides at all-guides.com Form #: SDS 853027 Revised: 05/14/15 SAFETY DATA SHEET Supersedes: NEW ECO #: 1001584 XIV. TRANSPORT INFORMATION U.S. DOT: Excepted from the hazardous materials regulations ( HMR) because the batteries meet the requirements of 49 CFR 173.159(f) and 49 CFR 173.159a of the U.S.

  • Page 31: International Regulations

    All manuals and user guides at all-guides.com Form #: SDS 853027 Revised: 05/14/15 SAFETY DATA SHEET Supersedes: NEW ECO #: 1001584 TSCA: TSCA Section 8b – Inventory Status: All chemicals comprising this product are either exempt or listed on the TSCA Inventory. TSCA Section 12b (40 CFR Part 707.60(b)) No notice of export will be required for articles, except PCB articles, unless the Agency so requires in the context of individual section 5, 6, or 7 actions.
  • Page 32 LED lanterns. The M860 marine lantern with a 200BC battery is the product for large self-contained LED lanterns. For customer service or technical support: 1.866.247 .6527 customerservice@carmanah.com Carmanah Technologies Corp. 250 Bay Street, Victoria, BC Canada V9A 3K5 | Tel: +1.250.380.0052 | Fax: +1.250.380.0062 | Email: info@carmanah.com...
  • Page 33 All manuals and user guides at all-guides.com USCG 2014 Q4 Item List NOTES: 1. Flash code 000 is no longer available for M850/M860 lights; it has been replaced with "off"; see manual for details M850 Marine Lantern - Includes 60X Battery Pack...
  • Page 34 700 series Bolt Kit (1/2-13 UNC x 1.25" long x 4) 38339 53291 700 series Security bolt kit, not including driver or socket M850/M860 Bolt kit (1/2-13 UNC x 2" long x 4) 71757 M850/M860 Security bolt kit, not including driver or socket 71884 Security screw bit (5/32"...
