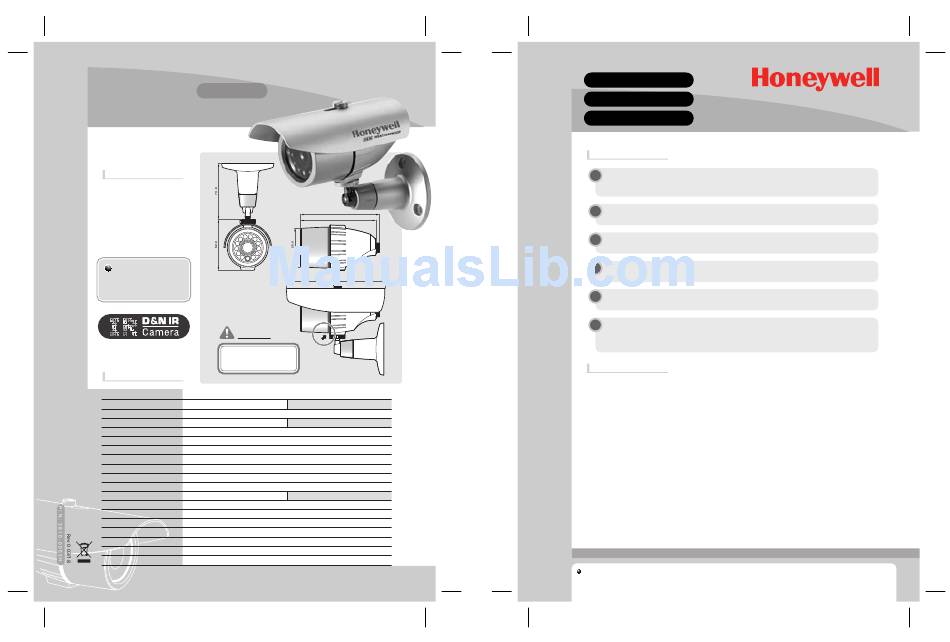

148.5(W)mm x 210(H)mm
reverse
Weatherproof
camera
IR
DAY& NIGHT
Dimensions (mm)
102.5
98.0
As surroundings darken,
it switches automatically from
123.0
color to black-and-white
mode to enhance sensitivity.
CAUTION
To reduce the risk of
electric shock, do not
remove the cover.
Specifications
M o d e l
N T S C
P A L
Image Sensor
1/3 inch SONY Super HAD CCD
Total Pixels No.
410K / 270K
470K / 320K
S/N Ratio
More Than 48dB (AGC Off)
Resolution
530 TV Lines
Video Output
1.0 Vp-p (75 Ohms, Composite)
Lens
Fixed f=4.3mm
Angle of View
f=4.3mm: 78º
Sync System
Internal
Min. Illumination
0.00 Lux (IR LED On)
Shutter Speed
1/60 ~ 100,000 Sec.
1/50 ~ 100,000 Sec.
White Balance
Auto
AGC
Auto
IR LED/SENSOR
Fixed (850nm/ 12EA)
LED Lighting Distance
Fixed (15m/ Indoor)
Input/Output Connector
Power (Red Jack), Video Output (Yellow Jack)
12VDC (10V~15V), 0.3A/ 3.6W (Max)
Power Consumption
Approx. 600g
Weight
front
HB72S
Series
HB72B
Series
Operation
HB72W
Series
Manual
CAUTION
!
Do not install the camera in extreme temperature conditions.
Do use the camera under conditions where temperatures are within -10°C to 50°C.
Especially be careful for ventilation under high temperature.
!
Do not install the camera under unstable lighting conditions.
Severe lighting change or flicker can cause the camera to work improperly.
!
Do not disassemble the camera.
There are no user-serviceable parts inside it.
!
Do not drop the camera or subject to physical shock.
It can cause malfunctions to occur.
!
Never point the camera into strong light or the sun.
It can damage CCD.
Note
!
If there is a bright spot light in the scene, smearing or blooming may occur.
Confirm that the power supply provides sufficient power before connecting
the camera
Regulatory Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions : (1)This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable
protection against harmful interference in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and use in accordance with the instructions, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
interference, in which case the user will be required to correct the interference at his
own expense.
WARNING - Changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate the equipment.
CAUTION - When this camera is installed near equipment, like a wireless communication
device that emits a strong electromagnetic field, some irregularity such as noise on the
monitor screen may happen.
D e s i g n a n d s p e c i f i c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e .
Need Help?
READ AND KEEP THIS
Call 1.800.796.CCTV for sales, service and customer support.
OPERATION MANUAL
www.honeywellvideo.com
