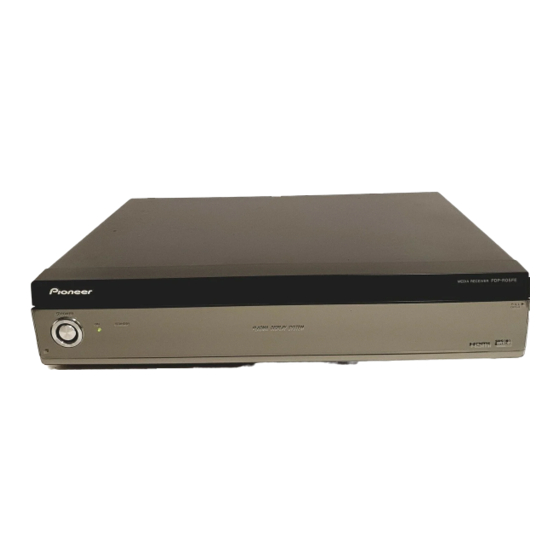

Pioneer PDP-R05FE Service Manual

MEDIA RECEIVER
PDP-R05E
PDP-R05XE
PDP-R05FE
THIS MANUAL IS APPLICABLE TO THE FOLLOWINGMODEL(S) AND TYPE(S).
Model Type
PDP-R05E WYVI
PDP-R05E WYVIXK
PDP-R05XE WYVIXK
PDP-R05FE WYVI
PDP-R05FE WYVIXK
Please connect it to the PLASMA DISPLAY PDP-505PE or PDP-435PE for adjustment and
operation inspection.
For details, refer to "Important Check Points for Good
PIONEER CORPORATION
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2004
POWER
ON
Power Requirement
AC220-240V
AC220-240V
AC220-240V
AC220-240V
AC220-240V
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
STANDBY TIMER
PDP-R05E
Confirm it
WYVI
Servicing".
WYVIXK
ORDER NO.
ARP3225
Remarks
Serial No.
SS
UK
T-ZZK NOV. 2004 printed in Japan
