Hi-Force HVL10 Operating Instructions Manual

This 'Original instructions' document assumes that the operator carrying out any operation with this
product is trained and competent to do so. This manual does not attempt to cover all details or variations
in the equipment. Nor does this manual claim to provide for every possible contingency met in connection
with the installation, operation, or maintenance thereof. Should further information be desired, or should
a particular problem arise which is not covered in sufficient detail, the matter should be referred to
Hi-Force.
OPERATING INSTRUCTION MANUAL
HVL SERIES | SINGLE-ACTING, VERY LOW HEIGHT

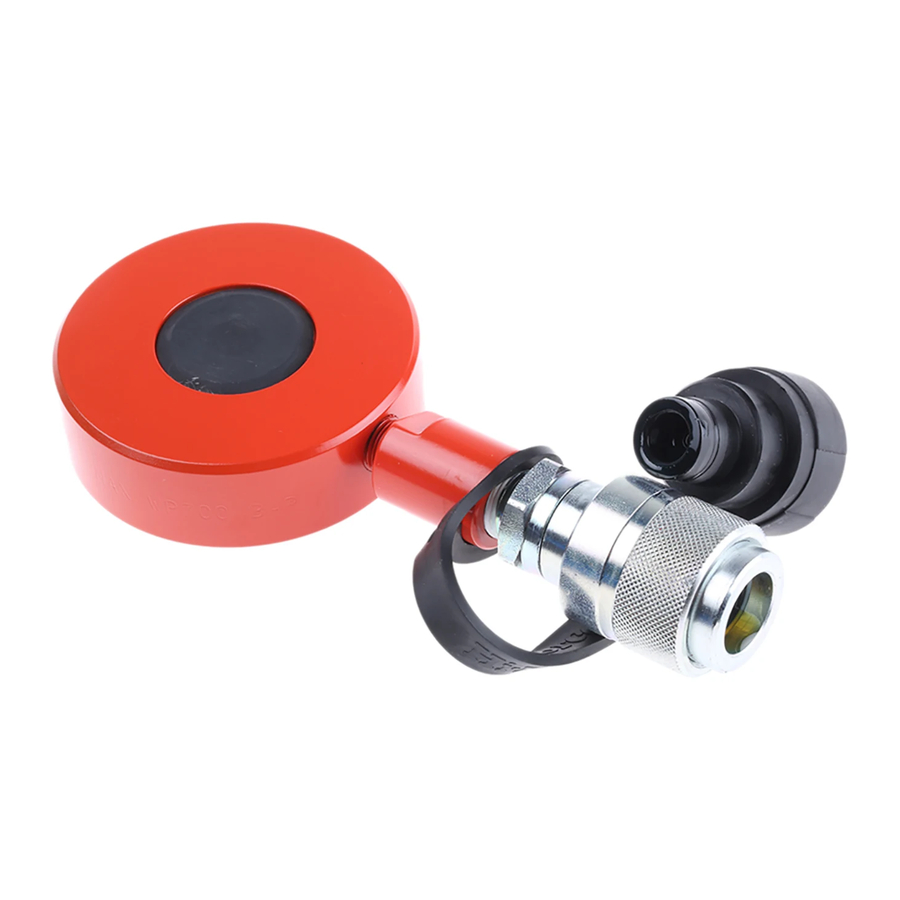

Hi-Force HVL Single-Acting, Very Low Height Pancake Cylinders are designed for use in narrow spaces
where a minimal colsed height is required. HVL cylinders are available in capacities ranging from 10 to 104
tonnes with all cylinders having a stroke length of 6mm. All cylinders have a maximum working pressure of
700 bar (10,000 psi). This manual applies to the Hi-Force HVL Single-Acting, Very Low Height Pancake
Cylinders ONLY. It contains the latest product information available at the time of publication and approval.
For information relating to the servicing of an HVL cylinder, see the servicing instructions, which are
available on the Hi-Force website. Hi-Force reserves the right to make changes to this document at any
time without notice.
Operating Instruction Manual:
PANCAKE CYLINDERS
1
OM-HVL-01
Serial Numbers:
From: AF0324
