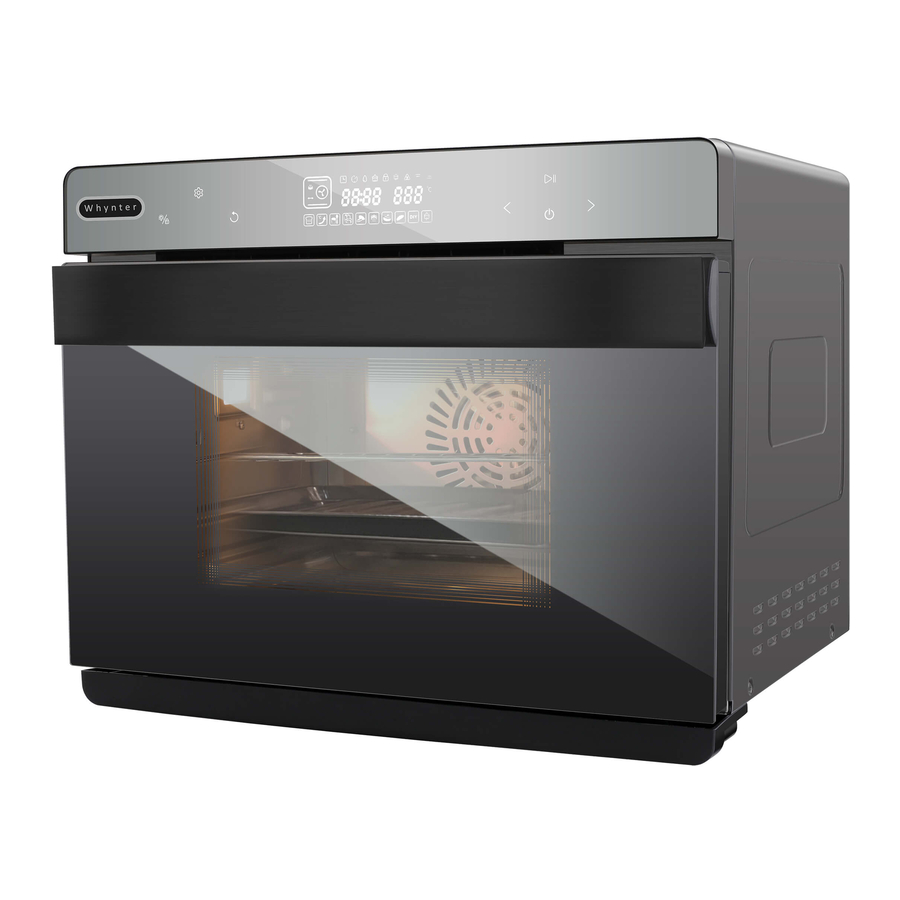

Whynter Grande 40 Quart Capacity Counter-Top Multi-Function
Intelligent Convection Steam Oven Air Fryer,
Oven, Yogurt Maker, Dehydrator & DIY Mode
Model # : TSO-488GB
Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction
Manual carefully before using this product. Keep this manual in a safe place for future reference.
Advertisement
Table of Contents
Related Manuals for Whynter TSO-488GB
Summary of Contents for Whynter TSO-488GB
- Page 1 Oven, Yogurt Maker, Dehydrator & DIY Mode Model # : TSO-488GB Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before using this product. Keep this manual in a safe place for future reference.
- Page 2 Thank you for choosing Whynter. Please follow the instructions provided in this user manual to obtain the very best performance from your steam oven. We trust that your Whynter steam oven will provide the performance and reliability that we stand for.
-
Page 3: Table Of Contents
Table of Contents PAGE SAFETY PRECAUTIONS BEFORE FIRST USE INTRODUCTION PRODUCT DIAGRAM CONTROL PANEL / DISPLAY 8 - 10 OPERATING INSTRUCTIONS 10 - 11 DIY FUNCTION MODES 12 - 13 MENU SELECTIONS 14 - 16 TIPS CLEANING AND MAINTENANCE SPECIFICATIONS TROUBLESHOOTING WARRANTY... -
Page 4: Safety Precautions
15. To avoid burns, use extreme caution when removing trays, pans, racks, or disposing of hot grease. 16. When not in use, always unplug the unit. Do not store any materials other than Whynter’s recommended accessories in this oven. -
Page 5: Before First Use
SAVE THESE INSTRUCTIONS BEFORE THE FIRST USE • Before using your Whynter steam oven for the first time, remove any dust from shipping by wiping the base, cover and controls with a damp cloth. • Be sure to thoroughly clean all accessories before first use. Rinse water reservoir in hot, sudsy water. Be sure to thor- oughly clean all accessories before each use. -
Page 6: Introduction
INTRODUCTION What Is a Steam Oven? Steam ovens are just what they sound like – ovens that use hot steam rather than hot air to cook food. They introduce a whole new level of cooking to your kitchen, and can even reheat things more effectively than microwaves, making them an awesome double whammy for your home. -
Page 7: Product Diagram
CAVITY DIAGRAM 1. Residual Steam Outlet 6. Bottom Heater 2. Oven Lamp 7. Internal Fan 3. Top Heater 8. Air Inlet 4. Steam Inlet 9. Temperature Sensor 5. Steam Inlet 10. Temperature Sensor 11. Water Tank... -
Page 8: Control Panel / Display
CONTROL PANEL Icon Function Description Oven lamp/child lock key: • Press to toggle Oven Lamp ON or OFF • Oven lamp will remain ON for three minutes after function completion. • Oven lamp will remain ON for three minutes when the oven door is left opened. •... - Page 9 DISPLAY Description Function Cooking Time Displays cooking hours and minutes. Displays adjustable temperature range: 85°F - 450°F Temperature Icon indicates that steam oven is running on Preset mode. Preset time can be adjust- Preset function ed in one hour increments, from 0-24 hours. Time-delay Icon indicates that steam oven is running on time-delay mode.
-
Page 10: Operating Instructions
DISPLAY Dry fruit and nuts menu contains 9 programs and recipes. Refer to page 15. Dried fruit and nuts Mode: Back heater convection or Top & bottom heater pipes Steam menu contains 9 programs and recipes. Refer to page 14. Steam Mode: Steam Roast menu contains 9 programs and recipes. - Page 11 OPERATING INSTRUCTIONS 2) Select a cooking time by confirming the blinking numbers (hours & minutes). 3) Select a temperature by confirming the blinking number temperature. 4) Press the Enter button to begin the cooking cycle. The countdown timer will begin counting down until the cooking cycle has completed. NOTE: The timer will stop when the door is open, and the timer will flash.
-
Page 12: Diy Function Modes
DIY FUNCTION MODES Steam Strengthening heating (Back heater convection + top heater pipe + bottom heater pipe) Top heater pipe Top/bottom heater pipe Hot air convection (Top heater pipe + rear fan) Back heater convection | Air Fryer (Back heating + rear fan) High-temperature steaming (steam + Back heater convection) Back heater convection + turning fork Top heater pipe + turning fork... - Page 13 DIY FUNCTION MODES DIY Other Roast Modes Press the selection key > and choose the desired cooking mode. The function icon will flash, press the Enter button to confirm the selection. Press the selection key > to select the operation hour time (default value is 0, ranging from 0 - 6) and minute (default value is 30, ranging from 0 - 59).
-
Page 14: Menu Selections
MENU SELECTIONS Steam Menu Code Steamed Steamed Steamed Steamed Steamed Steamed Food Steamed Steamed Steamed Style Vegetable Rice Shrimp Eggs Chicken Papaya Potatoes Fish Crab Heating time (minute) Heating temp. (°F) Roast Menu Code Food Roast Roast Roast Roast Roast Roast Roast Roast... - Page 15 MENU SELECTIONS Dry Fruit and Nuts Menu Code Dried Macadamia Dried Dried Dried Dried Cashew Food Style Almonds Walnut Banana Apple Raisins Kiwi Lemon Heating time (minute) Heating temp. (°F) Operating Back Back Back Back Back Top/bottom Top/bottom Top/bottom Top/bottom Panel Heater Heater...
-
Page 16: Tips
MENU SELECTIONS Light Press the Light button to turn the oven interior light on or off. Child Lock Press and hold the Child Lock button for 3 seconds to activate the child lock. To deactivate the child lock, press and hold the Child Lock button for 3 seconds Water level detection If the water tank is not in place or runs out of water, the oven will beep and the Water level... -
Page 17: Cleaning And Maintenance
CLEANING AND MAINTENANCE • Always turn the oven off and unplug the power cord from the outlet before cleaning. • Avoid abrasive cleansers and metal pads when cleaning the oven interior and bakeware to avoid damage. Heat the oven to 140°F / 100% Steam. ... -
Page 18: Troubleshooting
10 minutes, and then Open circuit for top sensor restart it or contact Whynter Customer Support Stop the work, open the oven door and allow the cavity to cool down for 10 minutes, and then... -
Page 19: Warranty
HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PUR- POSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. WHYNTER SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY.
