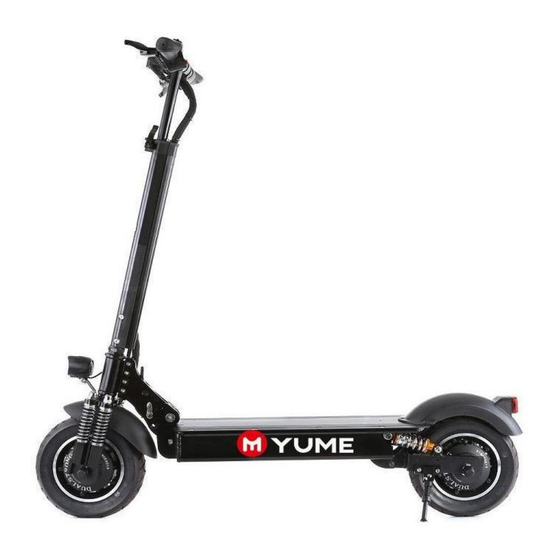

- Page 1 Shenzhen Yunmi Intelligent Technology Co., Ltd ELECTRIC SCOOTER MANUAL YMD4+ / YMD5...
- Page 2 Shenzhen Yunmi Intelligent Technology Co., Ltd Folding process: 1. Press the button on the rod to lower the handle first. 2. Pull out the outer ring and folding the handle. 3-4. Press the Folding button under the seat. Release the folding lock on the pedal, then folding the seat.(optional) 5-6.
- Page 3 Shenzhen Yunmi Intelligent Technology Co., Ltd JP-Y2 model display specification 1：JP-Y2 Meter Display Two buttons on meter display, Power button and function button。 While pressing function button and power button together , data of meter can be set： While displaying P0, press function button , it will display P1;...
- Page 4 Shenzhen Yunmi Intelligent Technology Co., Ltd freely adjusted between 5 and 100,When 5 is displayed, it represents 5% of the maximum speed of the controller,When 100 is displayed, it represents infinite speed, and the controller works normally. Display P9,press power button ,it shows 0，1 or 2,Indicates the penetration strength of EBS brake when the power is off.When 0 is displayed, there is no EBS braking effect: when 1 is displayed, EBS braking is weak.When shown 2, EBS brake is strong;(EBS brake is used to reverse the current through the controller to stop the motor...
- Page 5 Shenzhen Yunmi Intelligent Technology Co., Ltd Used to fix and adjust the height of T-bar(Attention: ensure the clamp locked before riding) 6: Folding Switch Slightly pull the safety lock of folding handle, press handle of axis to fold it.(Attention: ensure the safety lock of folding handle in the groove before riding) 7: Folding seat（This part is only suitable for scooter with seat.）...
- Page 6 Shenzhen Yunmi Intelligent Technology Co., Ltd 8: Kickstand Ensure the kickstand is folded before riding.
- Page 7 Shenzhen Yunmi Intelligent Technology Co., Ltd 9: Lights 9.1：10 inch scooter is high-light DB headlight; 11 inch scooter is dual angel eyes headlight + high-light DB headlight. 9.2：Tailight When scooter start and brake, taillight will light. BASIC OPERATION 1. Power on/off Long press power button for 3 seconds, instrument will be light, which means power on.
- Page 8 Shenzhen Yunmi Intelligent Technology Co., Ltd 2. Charger Intelligent charger owns over-charge protection function. While battery is charged to 100%, it will stop charging automatically(Suggest to pull out the plug immediately after full charge. ) Battery Lithium battery equipped in scooter do not need any maintenance, but please pay attention to the following events and limits of lithium battery same as other type of battery.
- Page 9 Shenzhen Yunmi Intelligent Technology Co., Ltd 1. Check whether battery gets power or not. Open the foot pedal and check whether the battery fuse is not inserted or has been burnt out. 3. Open the pedal to check whether the connector between main line of accelerator and controller is plugged in or not.
- Page 10 Shenzhen Yunmi Intelligent Technology Co., Ltd 2. Damage or malfunction caused by using product as dangerous purposes such as performance stunts. Disassemble without permission or use other brand spare parts Undefined use, traffic accident or other impacts 5. Driving on an abnormal road causes to damage or malfunction. 6.
