- Page 1 pro mobile SPEAKERS PH654/PH694/PH84 MANUAL...
- Page 2 Introduction Cerwin Vega Mobile Speakers Congratulations for purchasing Cerwin Vega Mobile speakers for your car audio system You have chosen Cerwin Vega Mobile because you deserve the best! Cerwin Vega Mobile speakers are designed and engineered to reproduce great sound quality for many years of listening enjoyment in your vehicle! We highly recommend that your new speakers be installed by an authorized Cerwin Vega Mobile dealer.
-
Page 3: Features & Specifications

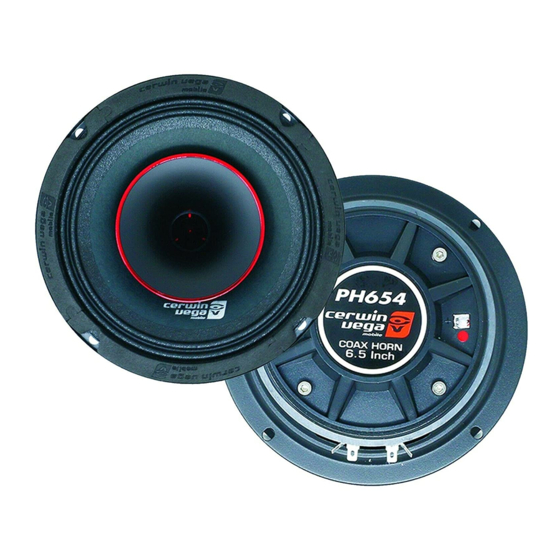

Features/Specifications The next generation of Cerwin Vega Mobile Pro Audio Mobile drivers features and specifications are on the next few pages. Makes sure to read this manual and get to know your drivers and the many applications and set up scenarios available to you. PH84 •... - Page 4 PH654 • 6.5” PRO Full-Range Co-Ax Horn Speaker • 150W RMS/300W** MAX Power Handling • Ferrite Strontium High Temp Magnet structure • Heavy duty Stamped Steel basket • 1.5” Single Layer high temp black coated voice coil for woofer • 1.0” Single Layer high temp voice coil for tweeter •...
-
Page 5: Installation
Installation Installing the Speakers Your new Cerwin-Vega Mobile Pro Full range Coax Horn speakers were designed with the flexibility to be installed in multiple Locations. However, to ensure the best performance possible, it is important to isolate the front sound waves of the speaker from its rear sound waves. This is done by securely mounting the speaker to a flat surface known as a baffle. - Page 6 System Design - Passive/Active ** SPECIAL NOTE** TYPICAL “BI-AMPED” SYSTEM USING Tweeter connected “out-of-phase” to be acoustically “in-Phase” PASSIVE CROSSOVERS The Cerwin Vega PRO AUDIO COAX HORN OUT OF PHASE!! comes with a special 12dB per octave crossover. It is HIGHLYrecommended that this PHCOAX tweeter 12dB per octave be used at ALL times - UNLESS you are using...
- Page 7 Typical 4 Channel System (Using a CMHR4 - BAGGER 4 CHANNEL AUDIO WIRING KIT) UTILIZING A PAIR OF PH654 AND A PAIR OF PH694 HEAD UNIT RIGHT FRONT LEFT FRONT SPEAKER SPEAKER LOWER FAIRING SPEAKER HARNESS CROSSLINK CABLE WATERPROOF BATTERY FUSE HOLDER RIGHT REAR SPEAKER...
-
Page 8: Diaphragm Replacement
Diaphragm Replacement THIS IS JUST IN CASE YOU BLOW YOUR TWEETER UP! FIRST THINGS FIRST: Pull the Insulated 0.25” Push-Ons off the Back Cover connections to the tweeter crossover as shown to the right The Back cover needs to be removed. These are 4 - PHIILIPS head machine screws. -
Page 9: Special Note
Features/Specifications Once the Back Cover/Diaphragm assembly is unscrewed and removed..NOW get the NEW Back Cover/Diaphragm assembly and reverse the process. Place the 4- PHILIP head Machine screws back into place. Using a DVM (or AA battery) make sure that the tweeter is actualy connected. -
Page 10: Physical Dimensions
Physical Dimensions Dimension Unit PH654 PH694 PH84 Total Diameter (A) in. (mm) 6.61 (168) 9.29X6.46 (236X164) 8.23 (209) Mounting Diameter (B) in. (mm) 5.67 (144) 8.74X5.98 (222X152) 7.17 (182) Mounting Depth (C) in. (mm) 3.09 (78.5) 3.90 (99) 3.70 (94) Total Depth (D) in. -
Page 11: Warranty
Warranty Please Ship All Warranty Claims With Pre-Authorized RA Number To: CV&DA Holdings, Inc. ATTN: Customer Service Department 3761 S. Hill St. Los Angeles, CA 90007 USA Please Contact Customer Service for Further Warranty Information: U.S.A. Tel: 213-261-4161 / Fax: 213-947-4767 We reserve the right to change the products and specifications at any time without notice. - Page 12 3761 South Hill Street Los Angeles 90007, USA P 213-261-4161 / F 213-947-4767 2020 Cerwin Vega Mobile All rights reserved. (a division of CV & DA Holdings, Inc.)
