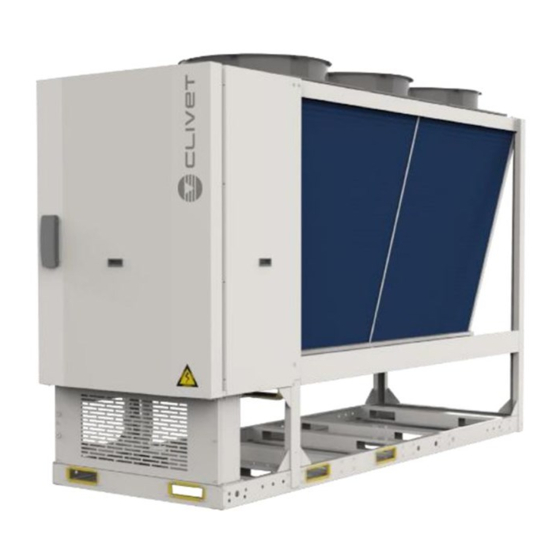

CLIVET WSAN-YES 35.2 Manual For Installation, Use And Maintenance
  1. Manuals
  2. Brands
  3. CLIVET Manuals
  4. Chiller
  5. WSAN-YES 35.2
  6. Manual for installation, use and maintenance

CLIVET WSAN-YES 35.2 Manual For Installation, Use And Maintenance

Hide thumbs
Table of Contents

Advertisement

Quick Links

WSAN-YES
18.2-35.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WSAN-YES 35.2 and is the answer not in the manual?

Questions and answers

Related Manuals for CLIVET WSAN-YES 35.2

Summary of Contents for CLIVET WSAN-YES 35.2

  • Page 1 WSAN-YES 18.2-35.2...
  • Page 2 We congratulate you on choosing these product. Clivet is being working for years to offer systems able to assure the maximum comfort for long time with high reliability, efficiency , quality and safety. The target of the company is to offer advanced systems, that assure the best comfort, reduce the energy consumption, the installation and maintenance costs for all the life-cycle of the system.
  • Page 3 General Riception Positioning Water connection Electrical connection Modbus Start-up Control Troubleshooting Maintenance Decommissioning Residual risks Drawings Technical data WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 4 Follow local safety regulations Verify that the electrical line characteristics are in compliance with data indicated on the unit serial number label. Maintenance Schedule periodic inspections and maintenances in order to avoid or reduce repairing costs. WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 5 Continuous product improvements may imply Type of refrigerant  manual data changes. Charge of refrigerant  Visit manufacturer web site www.clivet.it for the data manufacturer logo and address  updating The serial number label has not to be removed for Information for the User any reason.
  • Page 6  maximum ambient temperature +45°C Be careful not to damage the unit. (possible safety valve opening) Recycling and disposing the packaging material in  maximum relative humidity 95% conformity with local regulations. (possible damages to electrical components) WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 7 2 RECEPTION WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 8 A = 800 mm B = 500 mm C = 800 mm D = 500 mm E = 6000 Warning: do not smoke or use open flames in this area F = 500 mm G = 500 mm WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 9 PAF 22 SPEC PAF 11 SPEC PAF 13 SPEC PAF 4 SPEC PAF 90 SPEC PAF 11 SPEC PAF 13 SPEC PAF 9 SPEC PAF 90 SPEC PAF 22 SPEC PAF 22 SPEC PAF 4 SPEC PAF 90 SPEC WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 10 3 POSITIONING Protection grilles Option PESM00007 PESM00008 WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 11 < 0.1 Provide a water treatment system if values fall outside the limits.  The warranty does not cover damages caused by limestone formations, deposits and impurities from the water supply and/or from failure to clean the systems. WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 12  water temperature probe  filter  drain  flexible couplings  water flow switch  piping supports  vent  exchanger chemical cleaning bypass  system loading safety pressure switch  system cleaning bypass  pump WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 13 S12-2 = ON backup T outdoor compr. DHW storage heater 24°C < t.o ≤ 30°C < 15°C 24°C < t.o ≤ 30°C ≥ 15°C t.o > 30°C < 20°C t.o > 30°C ≥ 20°C DHW pump control wiring diagram. WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 14 Each unit with DHW option must have its own DHW storage tank.  The pumping unit is managed directly by the unit with ACS option via clean contact (PUMP-N)  The management of domestic hot water takes priority over the system  Domestic hot water → WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 15 4 WATER CONNECTION Option Code Kit containing pipe closing caps for modular units PEST00001 CCKMUX Water fittings for modular unit PESM00001 AMODX WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 16 4 WATER CONNECTION Spacers A↔A A↔B B↔B Remove yellow lift frame and use holes to Use prepared holes fix spacer to fix spacer WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 17 Conduct a leak test.  A + B : fornito da Clivet - Clivet supplied A+B: fornito da Clivet - Clivet supplied Isolate the pipes to avoid heat dispersions and  formation of condensate. Leave various service points free (wells, vents, ...
  • Page 18 Shelter the cables using adequate measure risk of damage to the disconnector. fairleads. Before power the unit, make sure that all the protections that were removed during the electrical connection work have been restored. WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 19 5 ELECTRICAL CONNECTIONS WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 20 The address corresponds to the encoder no. The address is shown on the display DSP1. MASTER : address = 0 encoder = 0 SLAVE 1 : address = 1 encoder = 1 SLAVE 15 : address = 15 encoder = F WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 21 16 units with relative controller on board, one of which is the master 15 units with relative controller on board + a remote controller as the master Press MENU + ► for 3 seconds Press ▲▼ to select the address WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 22 5 ELECTRICAL CONNECTION Modular configuration - Controller wiring WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 23 Modo （1 Cooling, 2 Heating, 8 Off） COOL (5℃ ~ 20℃); HEAT ( 25℃ ~ 55℃) Temperature Setpoint COOL( 5℃ ~ 20℃); HEAT ( 25℃ ~ 55℃) Temperature Setpoint B water setpoint 30°C~60°C Available for single unit WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 24 3 Super silent 1℃ 242+(Address)*100 Setpoint 1℃ 243+(Address)*100 Setpoint B 1℃ 244+(Address)*100 Unit inlet water temperature Twi 1℃ 245+(Address)*100 Unit outlet water temperature Two Total outlet water temperature Tw 1℃ ; only for the master (0) 246+(Address)*100 WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 25 274+(Address)*100 software version 275+(Address)*100 °C compressor 2 discharge temperature - Tp2 276+(Address)*100 not used 277+(Address)*100 °C economiser inlet temperature - T6a wired control error 278+(Address)*100 279+(Address)*100 0 Off, 1 On Compressor 2 absorption 280+(Address)*100 WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 26 Register Address Data Notes Compressor status Fan status Pump status reserved reserved reserved Defrosting Antifreeze electric heater Remote control SILENT mode Standard, silent, super silent reserved Alarm signals Unit group status 1: modular unit 0: single unit WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 27 6 MODBUS WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 28 → tabella pag. seguente  power supply features  Electrical connections by the customer  Neglecting the washing will lead to several filter cleaning interventions and at worst cases can cause damages to the exchangers and the other parts. WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 29 Do not start the compressor with the crankcase oil cooling below operating temperature. PERFORMANCE in the TECHNICAL BULLETIN referred Voltages to various conditions of use. Check that the air and water temperatures are included in the operating limits. WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 30  If the compressor breaks down due to operating in the above-mentioned conditions, the warranty shall no longer be valid and CLIVET spa shall not accept any liability. Periodically check the average operating times and frequency of compressor start-ups: indicatively the minimum thermal load must be such as to require a compressor to operate for at least ten minutes.
  • Page 31  after a time interval (default: 240 seconds)  if the load increases, additional resources are activated based on the set address  if the load decreases, the master unit switches off. WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 32 Press to exit the current page and return to the previous page. Long press to return straight to the home screen. Units in modular configuration On the slave controllers, only the password-protected SERVICE menu can be opened. WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 33 SILENT Mode. Key lock Timer on Alarm: indicator on when there is a fault or a protection is tripped. Units in modular configuration The information displayed on ALL controllers refers to the MASTER unit WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 34 During cooling with T ext < 15°C, the setpoint is forced to 10 °C (ref. Functioning limits) Units in modular configuration On the slave controllers, only the password-protected SERVICE menu can be opened. USER MENU Press MENU WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 35 (only for units in modular configuration) If STATE QUERY is selected: USER MENU - TIMER Press MENU Press TIMER Select one of the 3 categories proposed If “DAILY TIMER” is selected, the “WEEKLY SHEDULE” cannot be activated and vice versa. WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 36 Select DATE AND TIME Select DATE to change the date Select TIME to change the time USER menu - SILENT MODE SWITCH press ◄ ► to select the mode: Standard, Silent, Supersilent press OK to save the settings WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 37 T4_heat_1 (0~5ºC)   T4_cool_2 (30~40ºC) T4_heat_2 (15~20ºC)  offset_c (0~15ºC)  offset_h (0~15ºC Tw s' Tw s' Tw s of f set _c of f set _h Tw s T4_cool _1 T4_cool _2 T4_heat _1 T4_heat _2 WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 38 SELECT THE ADDRESS select address enable domestic hot water, if applicable activate priority of domestic hot water, if applicable minimum and maximum operating times of the unit once it has entered the corresponding mode WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 39 8 CONTROL USER MENU - AUXILIARY HEATER domestic hot water storage (wiring diagram: KA-H2) select heater control Single unit units in modular configuration select address WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 40 EC and the wired controller indicator flashes. keypad The error is eliminated after the transmission has been restored. If an error occurs between slave units, both units stop. The master unit and the previous slave units are not involved. WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 41 The entire unit stops. Turn the power off to reset it. total condenser output high temperature - Tz If the protection intervenes 10 times in 150 minutes, turn high pressure / drain temperature the power off to reset it WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 42 IPM module error, circuit A IPM module error, circuit B fan A module fan B module fan C module driver compressor A - configuration error driver compressor B - configuration error High / low voltage WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 43 A fan B fan C DIP switch for modular unit configuration error 3 times PL module protection low voltage high voltage MCE error speed 0 no phase variation of frequency higher than 15Hz WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 44 9 TROUBLESHOOTING Error code Description troubleshooting difference of phase frequency higher than 15Hz Gate error (d0 and address alternatively displayed every 10 sec) defrosting WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 45 25.xx electronic expansion valve opening A (/20) 26.xx electronic expansion valve opening B (/20) 27.xx electronic expansion valve opening C (/4) 28.xx high pressure L.xx low pressure 30.xx overheating 31.xx intake temperature 32.xx silent 33.xx static pressure WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 46 Tc: Saturation temperature corresponding to high pressure in heating mode 42.xx Te: Saturation temperature corresponding to low pressure in cooling mode 43.xx economiser inlet temperature - T6a 44.xx economiser outlet temperature - T6b 45.xx software version 46.xx last error 47.xx ---- WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 47 That the earth conductor is continuous. Before intervening on the system or performing any  hot intervention, make sure to be in an outdoor or Repairing sealed components suitably ventilated area. During the reparation operations of sealed  WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 48 Do not use halide lights (or any other open flame When using the final OFN charge, the system must detectors). be vented to the atmospheric pressure WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 49 If possible, pump the cooling system. electrical components are sealed to avoid  If it is not possible to obtain a vacuum, make  WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 50  Packing must be performed in such a way that mechanical damage to the equipment inside it does not cause refrigerant leaks. The maximum number of elements that can be stored together is determined by local regulations. WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 51 Physical characteristics of the R32 refrigerant Safety class (ISO 817) 0.307 LFL Low flammability limit kg/m3 @ 60°C BV Burning velocity cm/s Boiling point °C 100 yr ITH ARS 100 yr ITH Self-ignition temperature °C WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 52 / air flow-rate variations control device test: alarm signalling, thermometers, probes, pressure gauges etc.. Refer to the local regulations WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 53 When restarting, refer to what is indicated in the “start-up” section. Schedule technical assistance in advance to avoid hitches and to guarantee that the system can be used when required. Compressor casing heater Check: closure  Operation  WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 54  the cable holders are properly positioned Structure Wash with warm water.  Do not use chemicals. Check the state of the structure and the presence of oxidation. Paint if necessary. WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 55 10 MAINTENANCE Exchanger replacement Compressor replacement Pump replacement WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 56 EEE was likely to have been by both a private household and users of other than private households, it will be classed as private household WEEE; Professional WEEE: all WEEE which comes from users other than private households. WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 57 Smell of burning, smoke or other signals of serious Open and padlock the general isolator prior to anomalies may indicate a situation which could removing the guards and signal work in progress cause damage to people, things or the unit itself. with the appropriate sign. WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 58 Hydraulic parts Defects in tubing, the attachments or the removal parts may cause a leak or water projection with the consequent damages to people, things or shortcircuit the unit. WSAN-YES 18.2-35.2 M0ST10N19-00...
  • Page 59 Dimensional drawings Size 18.2 - 20.2 DAAST0001_REV00 Data/Date 10/04/2019 1. Compressor compartment 2. Electrical panel 3. Control keypad 4. Power input 5. Water inlet 2” Victaulic 6. Water outlet 2” Victaulic 7. DWH inlet 2” Victaulic (optional) 8. DWH outlet 2” Victaulic (optional) 9.
  • Page 60 Dimensional drawings Size 25.2 - 30.2 - 35.2 DAAST0002_REV00 Data/Date 10/04/2019 1. Compressor compartment 2. Electrical panel 3. Control keypad 4. Power input 5. Water inlet 2” Victaulic 6. Water outlet 2” Victaulic 7. DWH inlet 2” Victaulic (optional) 8. DWH outlet 2” Victaulic (optional) 9.
  • Page 61 General technical data Performance Size 18.2 20.2 25.2 30.2 35.2 Radiant panels Heating Heating capacity (EN 14511:2013) 54,0 61,0 65,0 79,1 88,0 COP (EN 14511:2013) 4,07 4,00 4,29 4,17 4,15 ErP Space Heating Energy Class - AVERAGE Climate - W35 SCOP - Average Climate - W35 3,93 3,91...
  • Page 62 General technical data Construction Size 18.2 20.2 25.2 30.2 35.2 Compressor Compressor type ROTARY INVERTER SCROLL INVERTER Refrigerant N° compressor Oil charge Refrigerant charge 15,0 15,0 21,0 21,0 21,0 N° circuits User side exchanger Type of internal exchanger BPHE Water content External Section Fans Fans type BRUSHLESS DC MOTOR...
  • Page 63 General technical data Sound levels Standard Mode Sound levels refer to units with nominal test conditions. Sound power level Sound Sound The sound pressure level refers to a distance of 1 pressure power meter from the outer surface of the unit operating in Size Octave band (Hz) level...
  • Page 64 General technical data Operating range - Cooling Size 18.2 - 20.2 - 25.2 - 30.2 - 35.2 Twu [°C] = Leaving exchanger water temperature Tae [°C] = External exchanger inlet air temperature 1. Normal operating range Operating range - Heating Size 18.2 - 20.2 Twu [°C] = Leaving exchanger water temperature Tae [°C] = External exchanger inlet air temperature...
  • Page 66 SUSTAINABLE COMFORT AND THE WELL-BEING OF PEOPLE AND THE ENVIRONMENT www.clivet.com sales and assistance M0ST10N19-00 - 16/12/2019 CLIVET SPA Via Camp Lonc 25, Z.I. Villapaiera 32032 Feltre (BL) - Italy Tel. +39 0439 3131 - Fax +39 0439 313300 info@clivet.it...
