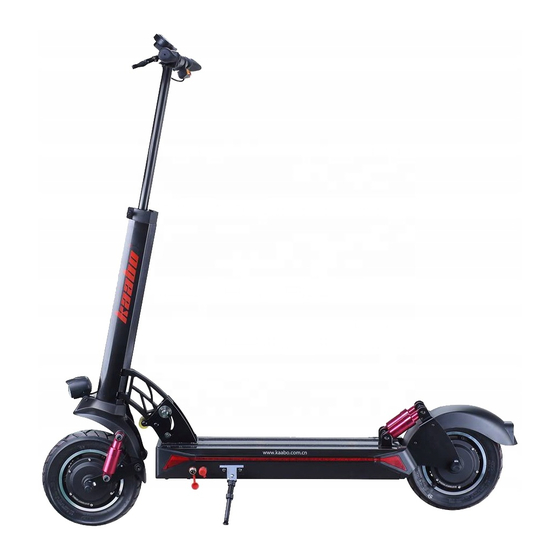

Summary of Contents for Kaabo Skywalker 10
- Page 1 Skywalker...
-
Page 2: Table Of Contents
CATALOGUE Product Introduce Safety Instruction Open & Fold Basic Operation Take The First Ride Daily Maintenance FAQS Warranty Memo... -
Page 3: Product Introduce
PRODUCT SPECIFICATION 8 INTRODUCE Configuration PRODUCT DIAGRAM 8 10.4AH 21AH 13AH Max. Range 28-32 km 65-70 km 45-50 km Max. Speed 38 km/h Charging 3-5 h 6-8 h 4-6 h Motor 350 w 500 w 16 kg 18 kg 19.3 kg Brake Rear Drum Brake + Electronic Brake Shock Absorber... - Page 4 PRODUCT DIAGRAM 8H SPECIFICATION 8H 36 V 48 V Configuration 10.4 AH 21 AH 13 AH Max. Range 28 - 32 km 65 - 70 km 45 - 50 km Max. Speed 35 km/h 38 km/h Charging 3 - 5 h 6 - 8 h 4 - 6 h Motor...
- Page 5 PRODUCT DIAGRAM 8S SPECIFICATION 8S 48 V Configuration 13 AH Max. Range 40 - 45 km Max. Speed 40 km/h Charging 4 - 6 h Motor 800 w 22 kg Rear Disc Brake + EABS Electronic Brake Brake Shock Absorber C Shock Absorption Tire 85mm Soild Tire...
- Page 6 PRODUCT DIAGRAM 10 SPECIFICATION 10 36 V 36 V 48 V Configuration 10.4 AH 21 AH 15.6 AH Max. Range 28 - 32 km 65 - 70 km 50 - 55 km Max. Speed 38 km/h 42 km/h Charging 3 - 5 h 6 - 8 h 4 - 6 h Motor...
- Page 7 PRODUCT DIAGRAM 10H SPECIFICATION 10H 36 V 36 V 48 V Configuration 10.4 AH 21 AH 15.6 AH Max. Range 28 - 32 km 65 - 70 km 50 - 55 km Max. Speed 38 km/h 42 km/h Charging 3 - 5 h 6 - 8 h 4 - 6 h Motor...
- Page 8 PRODUCT DIAGRAM 10S SPECIFICATION 10S 48 V 60 V Configuration 23.4AH 23.4 AH Max. Range 80km 90 km Max. Speed 50 km/h 60 km/h 12 h (2A charging) 12 h (2A charging) Charging 6 h (4A charging) 6 h (4A charging) Motor 800 w 1200 w...
- Page 9 PRODUCT DIAGRAM 10S+ SPECIFICATION 10S+ 48 V 60 V Configuration 23.4 AH 23.4 AH Max. Range 80 km 120 km Max. Speed 60 km/h 12 h (2A charging) 12 h (2A charging) Charging 6 h (4A charging) 6 h (4A charging) Motor 800 w x 2 1000 w x 2...
-
Page 10: Safety Instruction
SAFETY OPEN INSTRUCTION FOLD Tips Open This Chapter is very important. Please read carefully and understand all the instruction. We will not be responsible for any property loss, casualties, accidents, legal disputes caused by violation of the safety instrutions on chapter. Safety Instruction 1. -
Page 11: Basic Operation
BASIC Fold OPERATION Speed Control When the power is on ,press the power switch and then the MODE button, the screen will show the level of speed. Step2: press Mode to change the Level (L1,L2,L3). Step1: Pull T-tubes to the left and Switch off... - Page 12 DISPLAY & 3. Power Button. To turn the scooter on or off press button for 2 seconds. 4. Accelerator. Pull to accelerate. The stronger you pull, the faster it KEY SETTINGS accelerates. The scooter is delivered in “Non-Zero Start” setting (Kick-And-Go is ON), i.e.
-
Page 13: Take The First Ride
TAKE THE FIRST RIDE Battery & Charger Every piece of the scooter is equipped with specialized lithium battery Start and intelligent charger, so do not adopt other brand’s. Other types of battery are not suitable to the scooter’s charger. You should choose a right place when first riding, which is outdoors and should be flat, not be slippery and smooth, without obstacles. -
Page 14: Daily Maintenance
DAILY FAQs MAINTENANCE Scooter T-tubes Checking List Re-lubricate the T-tubes once in six months. When the scooter can not work normally, please check the following list. Do not use WD-40 to lubricate the product components. - Power is on. - There is surplus electricity. Tire - Brake is unstuck.
