- Page 1 Flexible continuous lights LED ROLL 62 DMX FY3606 LED ROLL 100 DMX FY3607 LED ROLL 250 DMX FY3608 LED ROLL RGB 100 DMX FY3609 USER GUIDE...
- Page 2 Safety warning: 1. Keep this product out of reach the rain or humidity to avoid damage or injury. 2. Do not disassemble the product. In case of damage contact a service FOMEI or contractual service with trained professionals. 3. If the product is disassembled, you will not be covered under warranty.
-
Page 3: Table Of Contents
TABLE OF CONTENT A. ABOUT PRODUCTS B. ON-STAND USAGE C. OFF-STAND USAGE D. SOFTBOX USAGE E. CONTROL UNITS F. WHAT IS INCLUDED G. TECHNICAL INFORMATIONS WWW.FOMEI.COM... -
Page 4: About Products

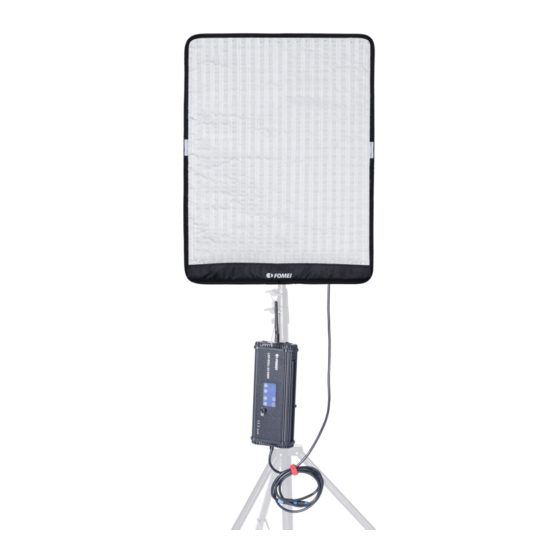

A. ABOUT PRODUCTS The flexible LED light FOMEI ROLL is an excellent alternative to the classic board lights thanks to its adaptability. The panel can be bent and adapted to the scene, or can be used like a classic board light on a stand with x-frame. Velcro on the back of the panel and additional velcro stripes can be used for positioning, joining more panels together or attaching to various surfaces. -
Page 5: Control Units
E. CONTROL UNITS LED ROLL 62 DMX / LED ROLL 100 DMX Display Touch control on the display (Power output, DMX channel) Rotary dial for power output setting / power saving mode (press) Connecting cable for powering the LED ROLL panel... - Page 6 Buttons for selecting settings - Power, channel (DMX), preset modes Rotary selector to change the settings of each mode Cable for connecting the control unit with LED ROLL light 2x V-Mount plates for batteries ON/OFF switch Connector for power supply DMX RJ-45 – Input / Output Metal handles WWW.FOMEI.COM...
- Page 7 Rotary selector for setting individual modes Cable for connecting the control unit with LED ROLL light Connector for power supply ON/OFF switch DMX RJ-45 – Input / Output Steel cable for hanging the control unit Antenna for receiving signal from the wireless controller (optional) WWW.FOMEI.COM...
- Page 8 To remove the batteries, press the battery lock on the side of the holder and remove the battery. Light ON/OFF Make sure the light is off before connecting the battery / power supply. After connecting battery / AC adapter, set the switch to “ON”. To turn off the light, switch to the „OFF“ position. WWW.FOMEI.COM...
-
Page 9: What Is Included
G. WHAT IS INCLUDED FY3606 FOMEI LED ROLL 62 DMX • LED ROLL 62 DMX • Control unit • Velcro connecting / handling stripes • Carrying bag • AC power supply • Adjustable X-frame holder with tripod joint • Batteries are not included FY3607 FOMEI LED ROLL 100 DMX •... -
Page 10: Technical Informations
G. TECHNICAL INFORMATIONS LED ROLL 62 DMX Power 62 W 0,5 m/6940, 1 m/2470, 2 m/668 Color temperature 5600 K Voltage AC 15V/5A, DC 14,4V Dimensions 61 x 46 x 0,3 cm Weight 0,5 kg LED diodes 504 pcs LED ROLL 100 DMX... - Page 11 0,5 m/7 013, 1 m/2 200, 2 m/607 Color temperature 2 700 K - 9 999 K Voltage AC 15V/7A; DC 14,4V Dimensions 61 x 46 x 0,3 cm Weight 0,76 kg LED diodes 216 pcs yellow, 216 pcs white, 216 pcs RGB WWW.FOMEI.COM...
- Page 12 FOMEI s.r.o. Machkova 587 500 11 Hradec Králové sls@fomei.com www.fomei.com FOMEI Slovakia s.r.o Za Kasárňou 1 831 03 Bratislava info@fomei.sk www.fomei.sk FOMEI Servis Tel.: +420 495 056 505 E-mail: servis@fomei.com...
