Fomei RGB 200F LED User Manual

Continuous light
Hide thumbs

Advertisement

Table of Contents

Continuous light
LED RGB 200F
FY3630
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RGB 200F LED and is the answer not in the manual?

Questions and answers

Related Manuals for Fomei RGB 200F LED

Summary of Contents for Fomei RGB 200F LED

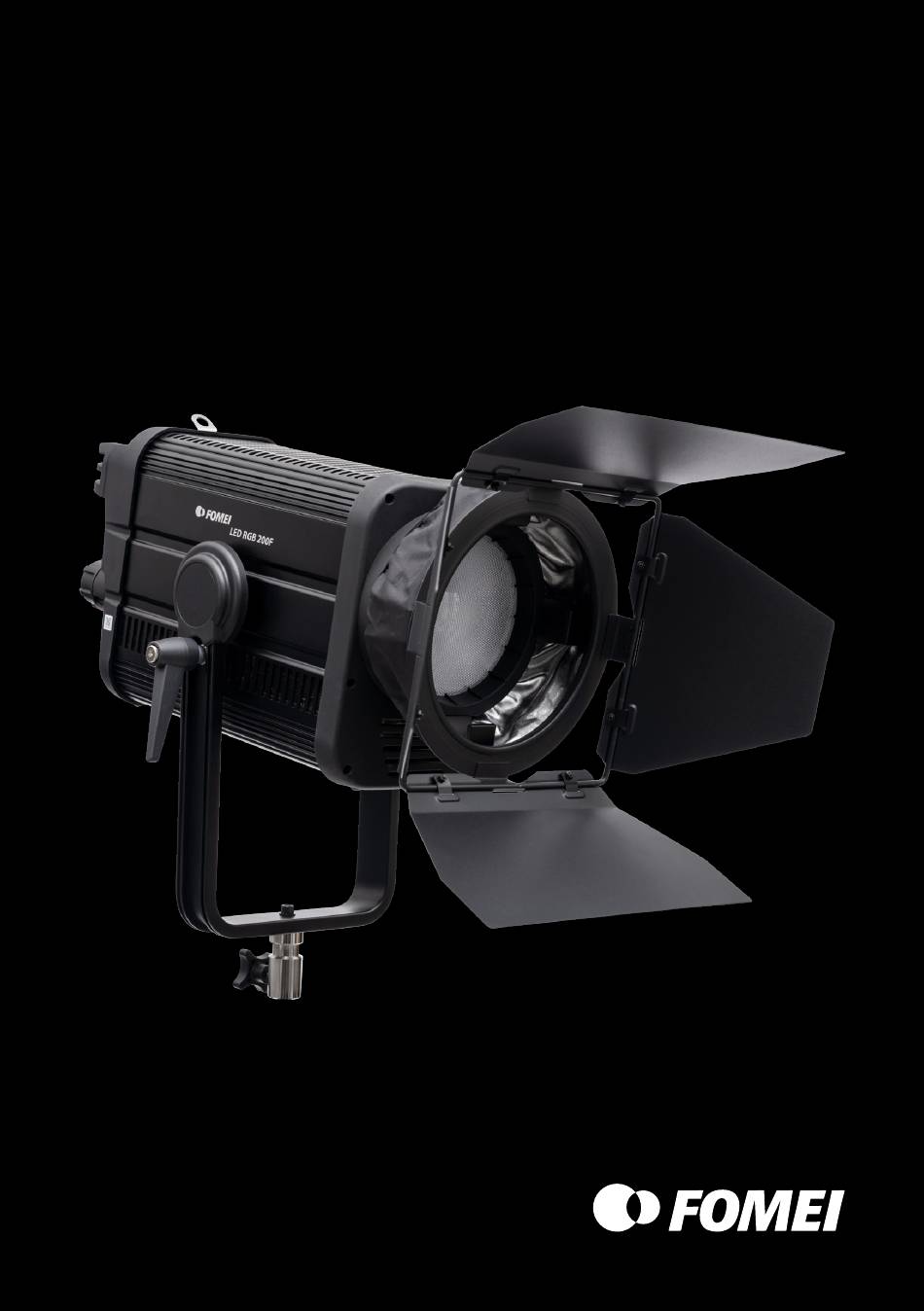

  • Page 1 Continuous light LED RGB 200F FY3630 USER GUIDE...
  • Page 2 Safety warning: 1. Keep this product out of reach the rain or humidity to avoid damage or injury. 2. Do not disassemble the product. In case of damage contact a service FOMEI or contractual service with trained professionals. 3. If the product is disassembled, you will not be covered under warranty.

  • Page 3: Table Of Contents

    TABLE OF CONTENT A. ABOUT PRODUCT B. PRODUCT OVERVIEW C. APP CONNECT D. MODES E. DMX-512 SETTINGS F. TECHNICAL SPECIFICATIONS WWW.FOMEI.COM...

  • Page 4: About Product

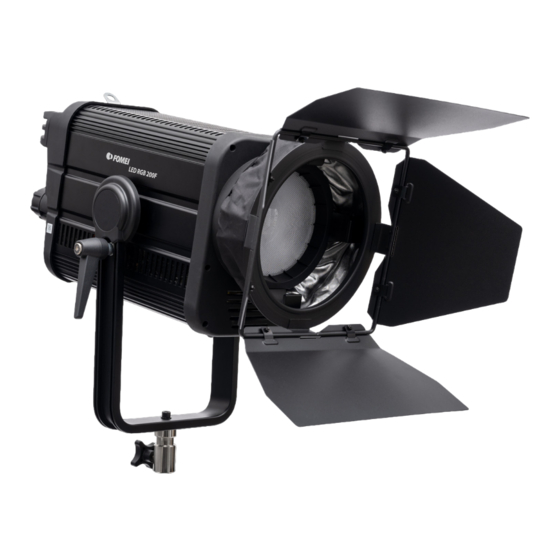

    A. ABOUT PRODUCT The RGB 200F LED light was directly created for the most demanding creators. The main advantages are RGB mode, ROSCO / LEE filters presets, a wide range of bi-color mode (2800- 10000K) or user-definable movie effects. All this with the possibility of control via the Desal SIK mobile application or the DMX512 protocol.

  • Page 5: App Connect

    D. MODES The RGB 200F LED has five main modes: bi-color, HSI, RGB, color filters and effect mode. To select a mode, press the MENU button, use the up and down arrows to se- lect the desired mode and confirm by pressing the ENTER button.
  • Page 6 • Adjust the light intensity with the rotary selector I. ROSCO/LEE FILTER MODE • The 200F has simulations of the 20 most used ROSCO filters and the 20 most used LEE filters. • It is possible to regulate the intensity of each filter. WWW.FOMEI.COM...
  • Page 7 • DMX 512 Addr: Here you can set the DMX start address. • Wireless Addr: Here you can set the address for control via BT (0-16). • Freq Select: Currently unavailable function ready for future update. • Language: Language selection (English / Chinese) Language settings Device info WWW.FOMEI.COM...

  • Page 8: Dmx-512 Settings

    E. DMX-512 SETTINGS The RGB 200F LED light needs eight DMX channels for its function. • Channel 1: Intensity • Channel 2: Color temperature • Channel 3: Tuning the green / magenta tint • Channel 4: Splitter between RGB and bi-color. Enable channel 4. for the RGB cont- rol option while leaving the intensity at a value other than zero.
  • Page 9 WWW.FOMEI.COM...
  • Page 10 FOMEI s.r.o. Machkova 587 500 11 Hradec Králové sls@fomei.com www.fomei.com FOMEI Servis Tel.: +420 495 056 505 E-mail: servis@fomei.com...

This manual is also suitable for:

Fy3630
