SERVICE MANUAL
Ver. 1.5 2012.08
System
Laser: Semiconductor laser
Inputs and outputs
(Jack name:
Jack type/Output level/Load impedance)
LINE OUT R-AUDIO-L:
:
Phone jack/2 Vrms/10 kilohms
DIGITAL OUT (COAXIAL):
Phono jack/0.5 Vp-p/75 ohms
HDMI OUT:
HDMI 19-pin standard connector
COMPONENT VIDEO OUT
(Y, P
, P
) :
B
R
Phono jack/Y: 1.0 Vp-p/
P
, P
: 0.7 Vp-p/75 ohms
B
R
LINE OUT VIDEO:
Phono jack/1.0 Vp-p/75 ohms
LAN (100):
100BASE-TX Terminal
USB:
USB jack Type A (For connecting a USB memory,
memory card reader,digital stil camera and digital
video camera)
All model (REAR USB)
BDP-BX38/S380/S383 (FRONT USB)
9-890-744-16
BDP-BX38/S280/S380/S383
Brazilian Model
Canadian Model

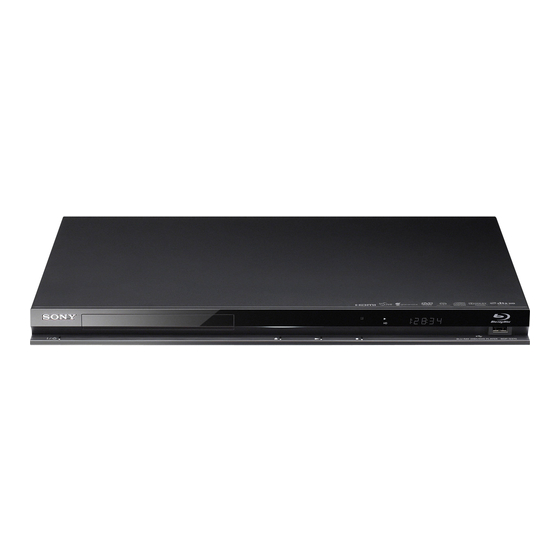

Photo: BDP-S280
Remote : RMT-B109A
SPECIFICATIONS
Sony Corporation
Home Entertainment Business Group
RMT-B109A/B109P/B109C/B110A/B110P
AEP Model
UK Model
UK Model
BDP-S280/S380/S383
BDP-S280/S380/S383
US Model
BDP-S280/S380/BX38
BDP-S280/S380
Mexican Model
BDP-S380/S383
General
Power requirements:
120V AC, 60Hz (US, CND)
220 – 240V AC, 50/60Hz (AEP,UK, AUS,RUS,CN)
110 – 240V AC, 50/60Hz (PX,E,AR,BR,SP,TH,EA,KS,IN)
110V AC, 60Hz (TW)
Power consumption:
18 W (BDP-S380/S383/BX38)
16 W (BDP-S280)
Dimensions (approx.):
430 mm × 199 mm × 36mm
(17 in. × 7
4
/
in. × 1
7
5
(width/depth/height) incl. projecting parts
Mass (approx.):
1. . 6 kg
Operating temperature:
º
5 ºC to 35 ºC(41 F to 95 F)
Operating humidity:
25 % to 80 %
Supplied accessories
Audio/video cable (phono plug ×3) (1)
(Except
AEP,UK,E,AR,SP,TH,CN,IN,TW)
LAN cable
(1) (BDP-S380 :
HDMI cable (1) (Except
Remote commander (remote) (1)
Size AA (R6) batteries (2)
Specifications and design are subject to change
without notice.
ENERGY STAR and the ENERGY STAR mark
are registered U.S. marks. ENERGY STAR is a
registered mark owned by the U.S. government.
(BDP-S280:US/S380:US/BX38:US)
BLU-RAY DISC / DVD PLAYER
Argentina Model
E Model
Chinese Model
Indian Model
Middle East Model
Russian Model
Saudi Arabia Model
Singapore Model
Taiwan Model
Thailand Model
Australian /
New Zealand Model
PX Model
BDP-S380
/
in.)
16
º
only)
TW
AEP,UK,AUS,US,CND,PX,RUS)
TM
2012H6900-1
Published by Document Design Dept.
© 2012.08
Advertisement
Table of Contents
Related Manuals for Sony RMT-B109P
Summarization of Contents
SPECIFICATIONS
General
General technical specifications, including power, dimensions, and operating conditions.
System
Laser type and input/output interface specifications for the device.
Inputs and outputs
Detailed list of all input and output connectors with their specifications.
SAFETY CHECK-OUT
LEAKAGE TEST
Procedure for testing AC leakage current from exposed metal parts to earth ground.
Unleaded solder
Information on unleaded solder characteristics and best practices for its use.
SERVICE NOTE
Disc Removal Procedure
Procedure for forced disc ejection when the tray cannot be opened normally.
Work when optical device are replaced
Steps for optical device replacement, including software setup and barcode scanning.
Operation and Display
Testing procedures for disc playback and output functions across different formats.
DISASSEMBLY
Disassembly Flow
Flowchart outlining the sequence for disassembling the device.
Upper Case
Step-by-step guide for removing the upper case of the unit.
BLOCK DIAGRAMS
Overall Block Diagram
High-level overview of the system's main functional blocks and their interconnections.
DSP Block Diagram
Detailed block diagram of the Digital Signal Processor (DSP) unit.
SCHEMATIC DIAGRAMS
MB-138 BOARD (POWER) Schematic Diagram
Schematic diagram detailing the power supply circuits on the MB-138 board.
MB-138 BOARD (HDMI) Schematic Diagram
Schematic diagram illustrating the HDMI interface circuitry on the MB-138 board.
PRINTED WIRING BOARDS
MB-138 BOARD (MAIN) PRINTED WIRING BOARD (SIDE A)
Physical layout of the MB-138 main board (Side A) for component identification.
MB-138 BOARD (MAIN) PRINTED WIRING BOARD (SIDE B)
Physical layout of the MB-138 main board (Side B) for component identification.
IC PIN FUNCTION DESCRIPTION
MAIN SYSTEM CONTROL PIN FUNCTION (MB-138 BOARD IC 101 : CXD9997G-AA)
Pinout and function description for the main system control IC (CXD9997G-AA) on the MB-138 board.
SERVICE MODE
Main function
Overview of the main functions available within the service mode.
Service Mode Top Menu
Explanation of the service mode top menu structure and navigation.
Diag Menu (Device Test)
Menu for selecting and performing diagnostic tests on various device components.
TROUBLESHOOTING
Main Flowchart
General troubleshooting flowchart to diagnose common issues with the device.
Power (System) Flow
Flowchart for diagnosing and resolving power supply and system startup problems.
IFcon Section Flow Chart
Detailed flowchart for troubleshooting issues related to the IFcon section.
REPAIR PARTS LIST
10-1. EXPLODED VIEWS
Exploded views illustrating the assembly of the case section and main chassis.
10-3. BD SECTION
Exploded view and part list for the Blu-ray disc drive section.
10-2. ELECTRICAL PARTS LIST
Comprehensive list of electrical components, including part numbers and descriptions.
