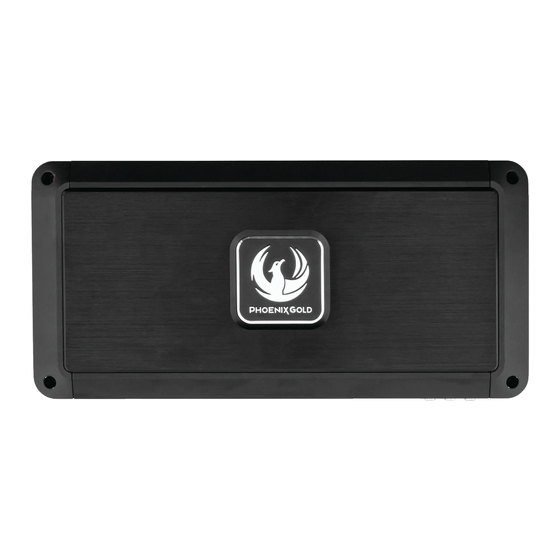

New for 2021 is Phoenix Gold's GX line of amplifiers.
Designed to cover a multitude of installation needs,
GX is packed with the features and power you can
expect from the Phoenix Gold brand. Included in the
d
line are our proprietary PG quick connects for high
e
current capability and reliability while delivering uber
clean and quick installations. The chassis has been
optimized by utilizing BFD (Balanced Flow Dissipation)
to keep the amplifier running cool when the music is hot.
Amplifier Manual
Models: GX1200.6
Features
• Class D Topology
• Selectable Balanced / Unbalanced Inputs
• Surface-Mount Component Technology
• Multi-Input Selector
• Low Pass and Subsonic Crossovers (GX1200.1)
• Proprietary PG Quick Connects
• Flush Mountable Bass Knob
• Full Radiation Heat Sink
• Single-sided Control Panel
• Onboard Short/Therm/Imped Protection
• 0-180° Variable Phase Shift (GX1200.1)
GX Series
GX800.4
GX1200.1
●
●
Advertisement
Related Manuals for Phoenix Gold GX800.4
Summarization of Contents
GX1200.6 Specifications and Features
Remote Bass Controller
Flush mount level controller for fine-tuning bass output with a simple turn of the precision controller.
GX800.4 Specifications and Features
Remote Bass Controller
Flush mount level controller for fine-tuning bass output with a simple turn of the precision controller.
GX1200.1 Specifications and Features
Remote Bass Controller
Flush mount level controller for fine-tuning bass output with a simple turn of the precision controller.
GX1200.6 Amplifier Connections and Controls
Power/Protect LED
Indicator light showing amplifier status: blue for on, red for protection mode.
Power Connections
Ground (GND), Remote (REM), and +12V terminals for amplifier power supply.
Speaker Outputs
Connects the amplifier to speakers, detailing minimum impedance for stereo and bridged modes.
Remote Level Control Port
Connects to the remote knob for up to 20dB of volume adjustment on CH 5/6.
Input Gain (SENS) for Channels
Adjusts input sensitivity to match signal level, variable from 0.4V to 10V.
Crossover (X-OVER) Controls
Allows adjustment of High Pass Filter (HPF), Full Range (FULL), and Low Pass Filter (LPF).
Input Signal Selection
Selects between Balanced (BAL) and Unbalanced (UNBAL) input signals.
Input Configuration
Selects input signal configuration for 4 or 6 channels.
Input Terminals
Preamp signal input connections (RCA) from the source unit.
GX800.4 Amplifier Connections and Controls
Power/Protect LED
Indicator light showing amplifier status: blue for on, red for protection mode.
Power Connections
Ground (GND), Remote (REM), and +12V terminals for amplifier power supply.
Speaker Outputs
Connects the amplifier to speakers, detailing minimum impedance for stereo and bridged modes.
Input Gain (SENS)
Adjusts input sensitivity to match signal level, variable from 0.4V to 10V.
Crossover (X-OVER) Controls
Allows adjustment of High Pass Filter (HPF), Full Range (FULL), and Low Pass Filter (LPF).
Input Selection
Selects between Balanced (BAL) and Unbalanced (UNBAL) input signals.
Input Configuration
Selects input signal configuration for 2 or 4 channels.
Input Terminals
Preamp signal input connections (RCA) from the source unit.
Remote Level Control Port
Connects to the remote knob for volume adjustment. Controls REAR Channel level.
GX1200.1 Amplifier Connections and Controls
Power/Protect LED
Indicator light showing amplifier status: blue for on, red for protection mode.
Power Connections
Ground (GND), Remote (REM), and +12V terminals for amplifier power supply.
Speaker Output
Connects the amplifier to speakers, detailing minimum impedance.
Input Gain (SENS)
Adjusts input sensitivity to match signal level, variable from 0.4V to 10V.
Phase Control
Controls phase from 0-180° for enhanced bass response, dynamics, and impact.
Low Pass Filter (LPF)
Sets low pass crossover frequency, continuously variable from 50Hz to 250Hz.
Subsonic Filter
Removes low inaudible frequencies to increase system efficiency and protect speakers.
Bass Boost
Controls the bass boost level from 0 to +18dB.
Remote Level Control
Port for connecting the remote subwoofer level control knob for volume adjustment.
Input Selection
Selects between Balanced (BAL) and Unbalanced (UNBAL) input signals.
Input Terminals
Preamp signal input connections (RCA) from the source unit.
Output Terminals
Used to connect to a secondary amplifier without degrading signal strength.
